3. Disconnect the power line cord and any other cables connected
to the rear panel.
4. Remove the slot cover plate from the desired slot. Retain the
plate and screws for future use.

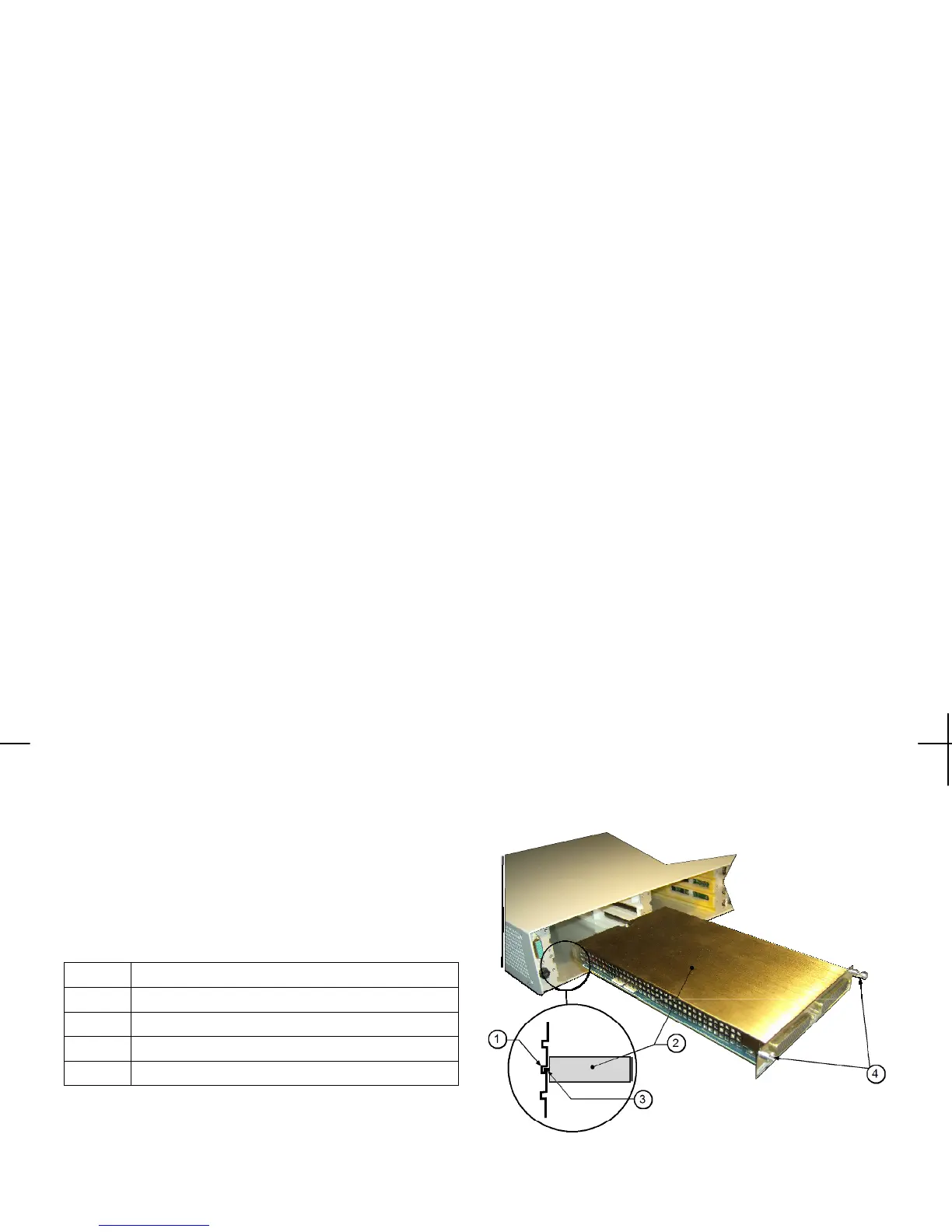

5. With the top cover of the switching card facing up, align the card
edge into the card guide of the slot.
Item Description
1 Card guide (part of Series 3700A instrument)
2 Card
3 Card edge (part of card)
4 Mounting screw (part of card)
6. Slide in the card. For approximately the last ¼ inch, press in
firmly to mate the module connector to the mainframe
connector.
7. On each side of the module, there is a mounting screw. Use the
flat-bladed screwdriver to tighten these two screws to secure the
module to the mainframe. Do not overtighten.
