Series 2600 System SourceMeters Reference Manual Source-Measure Concepts 8-19
Return to Section 8 topics 2600S-901-01 Rev. A / May 2006

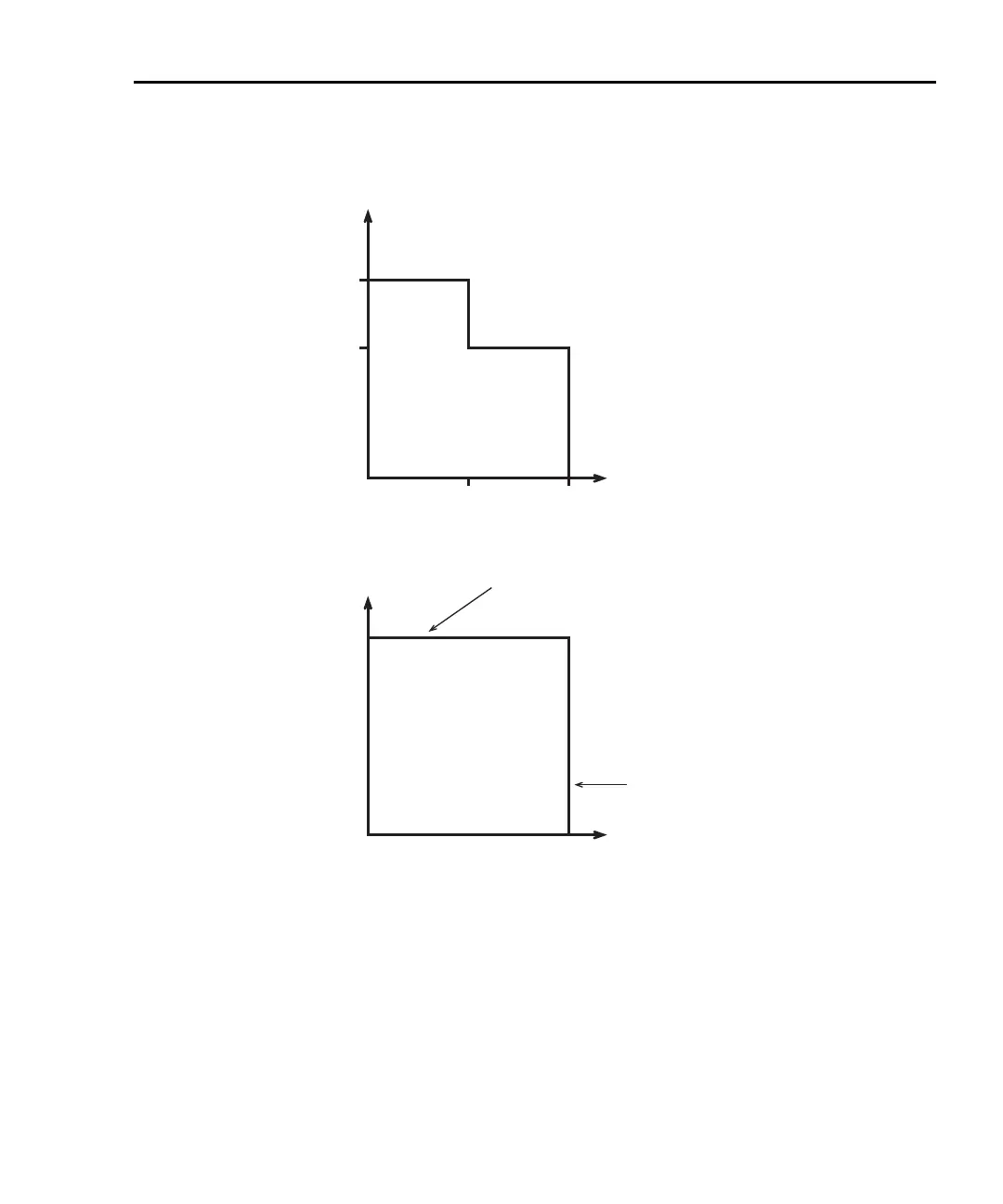

Figure 8-8
Model 2601/2602 V-Source boundaries
Current Compliance
Limit Line
Voltage Source
Limit Line
V Source
Limit I
3A
1A
A) Output characteristics
B) Limit lines
Source V
6.06V
I Measure
40.4V
