Kelly 45 - Fitting cast link retaining pins; Specifications; Operating speeds; Tire pressure

7170

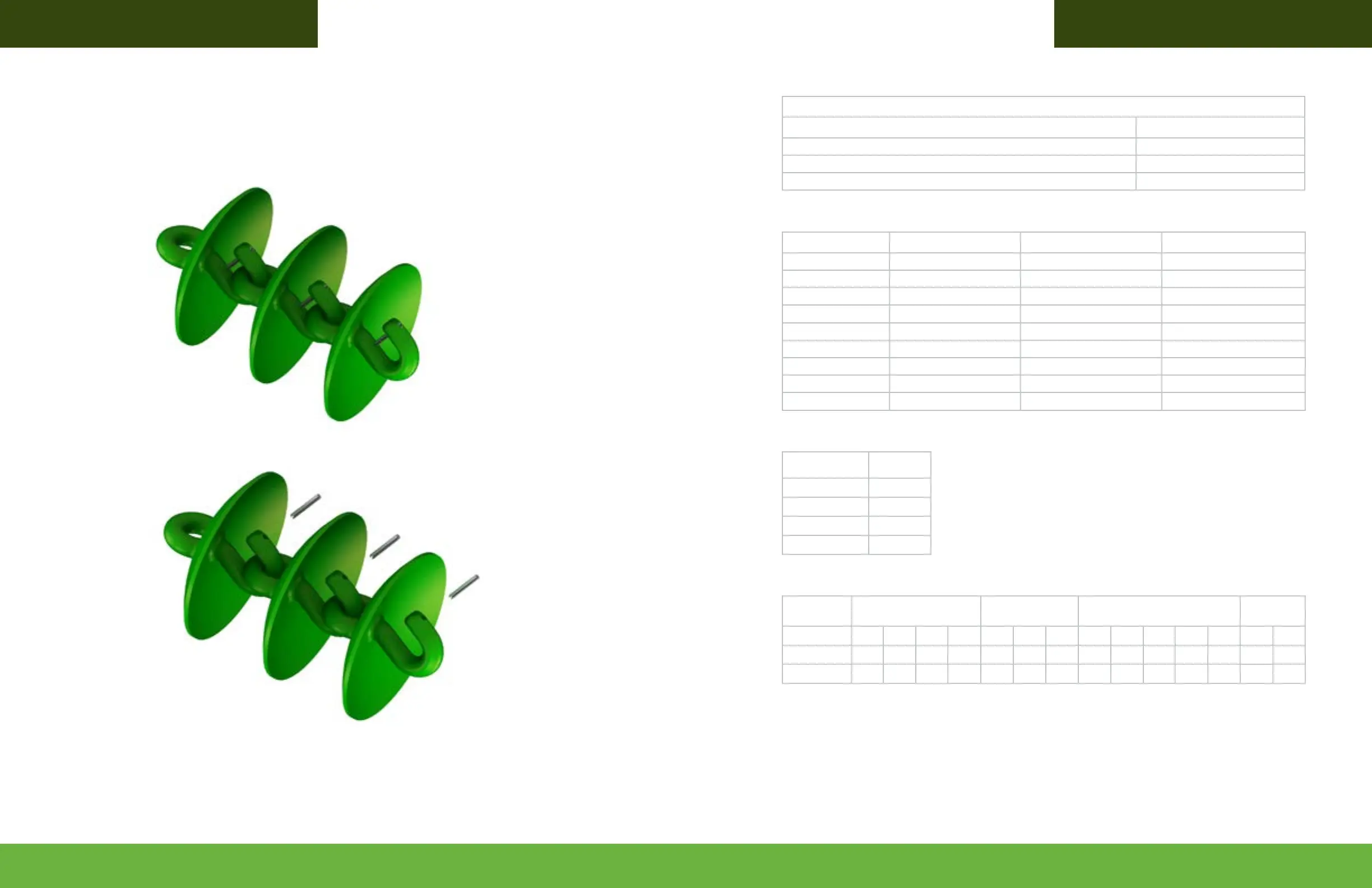

Fitting cast link retaining pins
Please install cast link retaining Pins (3/8” x 3” Roll Pin, part number 0262-3-8X3) on all cast disc links.
Failure to do this could lead to the discs becoming dislodged during transport causing severe damage or injury.
Specications
Operating speeds
Operating speeds for normal conditions
Chain type Speed
Prickle Chain 6-10 Mph / 10-16 kmph
Disc Mulch Chain 6-8 Mph / 10-12 kmph
Transport / towing on roads 15 Mph / 25 kmph
Tire pressure
Tire size Ply PSI KPA
16.5L x 16.1 14 36 250
H40 x 14.5-19 26 60 410
11L - 15 10 44 300
15.5/80/24 16 58 400
16.5/85/24 16 55 380
550/60/22.5 16 40 280
400/60/22.5 16 50 350
12.5/80/18 14 85 590
15.0/70/18 14 71 490
Chain Harrow specications
Model
45’/13.5m
Working width 43.5’/13.5m
Transport width 13.5’/4.1m
Transport height 13’/3.9m
Transport length 55’/16.7m
Bolt Torque Settings
Bolt Type
Wheel nut U Bolt Grade 8.8 Bolt
Grade
10.9 Bolt
Bolt Size
M18 M20 1/2” 9/16” M10 M12 M16 M10 M12 M16 M20 M24 M20 M24
Ft lb
255 265 90 100 22 36 55 32 48 140 190 270 300 350
Nm
345 360 125 140 30 50 75 44 65 190 260 370 406 475
[1] When tting a wheel & tire to a hub, do the wheel nuts up in rotation to the correct tension. To achieve this choose a
wheel nut & tighten, then go clockwise to the next wheel nut & tighten & so on until all wheel nuts are tight. Then repeat
the procedure to check that all nuts are tight. Do not use impact tools to tighten wheel nuts. For a guide to the correct
tension of the wheel nuts please use the appropriate tension for your size wheel nuts from the Bolt Torque Settings table.
Torque values are for dry threads and surfaces however it is permissible to apply a small amount of anti corrosive oil to
the threads.
