Correct working height
Settings for correct working height

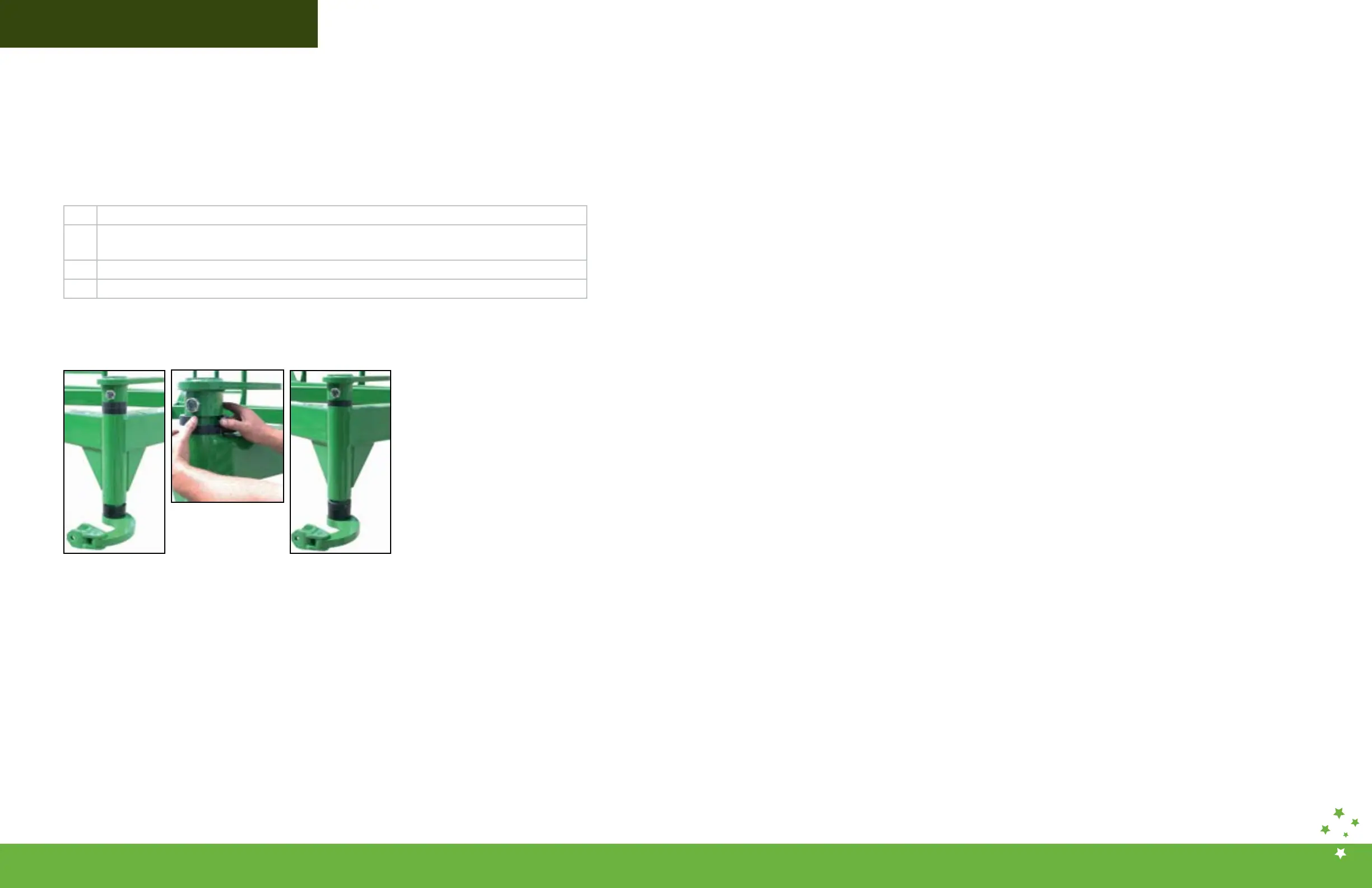

To adjust the swivel height at the wings, relocate one of the polyurethane spacers either above or
below the xed mounting tube.
Adjustment
1 Loosen chain tension completely
2 Undo self tapping screw from corresponding spacer then prise open the spacer and
spring it o of the drop leg tube
3 Replace it in the selected position after raising or lowering the drop leg
4 Reinstall the self tapping screw and re-tension the chain
It is possible to install all spacers either above or below the mounting tube giving a maximum of
4” (100mm) of adjustment.
