Kelly KLS8080I/IPS Sinusoidal Brushless Motor Controller User’s Manual V 1.10

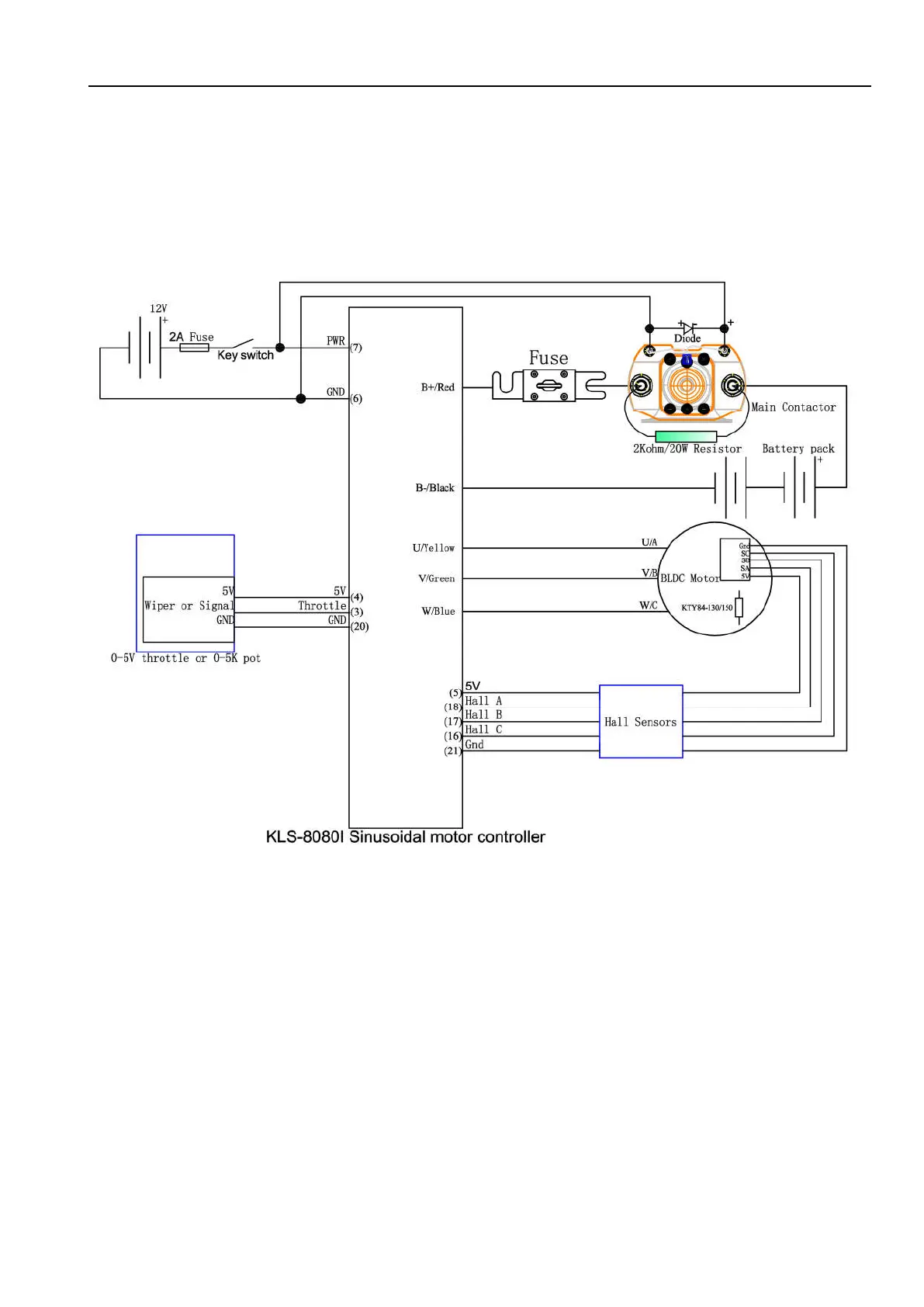

1,Please hook up the controller for identification angle operation according to the wiring
diagram below.Please make sure there is no load on the motor shaft before starting the
programming.The KLS-8080I is designed by opto-isolated technology.We specify 8-30V for
power supply pin7 vs pin6 which must be isolated from main battery pack B+/B-.Usually
customers can use 12V car battery or 12V Isolated type DCDC converter for this purpose.
2,Please connect the controller to user program by using an USB to RS232 cable and SM-4A
DB9(RS232) Converter.
