Kelly KLS8080I/IPS Sinusoidal Brushless Motor Controller User’s Manual V 1.10
Identify error,hall err etc,please return to the first picture of user program.Please write 85
instead in identification angle by manual.
If there are no any error codes,you can not write it back to 85 by manual.Please wait longer time
until the error codes occur.
Please don't keep 170 in the identification angle item when you want to turn off the power
supply.
Otherwise the controller will try to keep doing identification operation all the time as long as you
turn on power supply again.
When the error codes occur,please quit from user program.Please try again from step 6.
14,Please don't keep 170 in identification angle item before power supply is turned on after the
identification operation is successful.

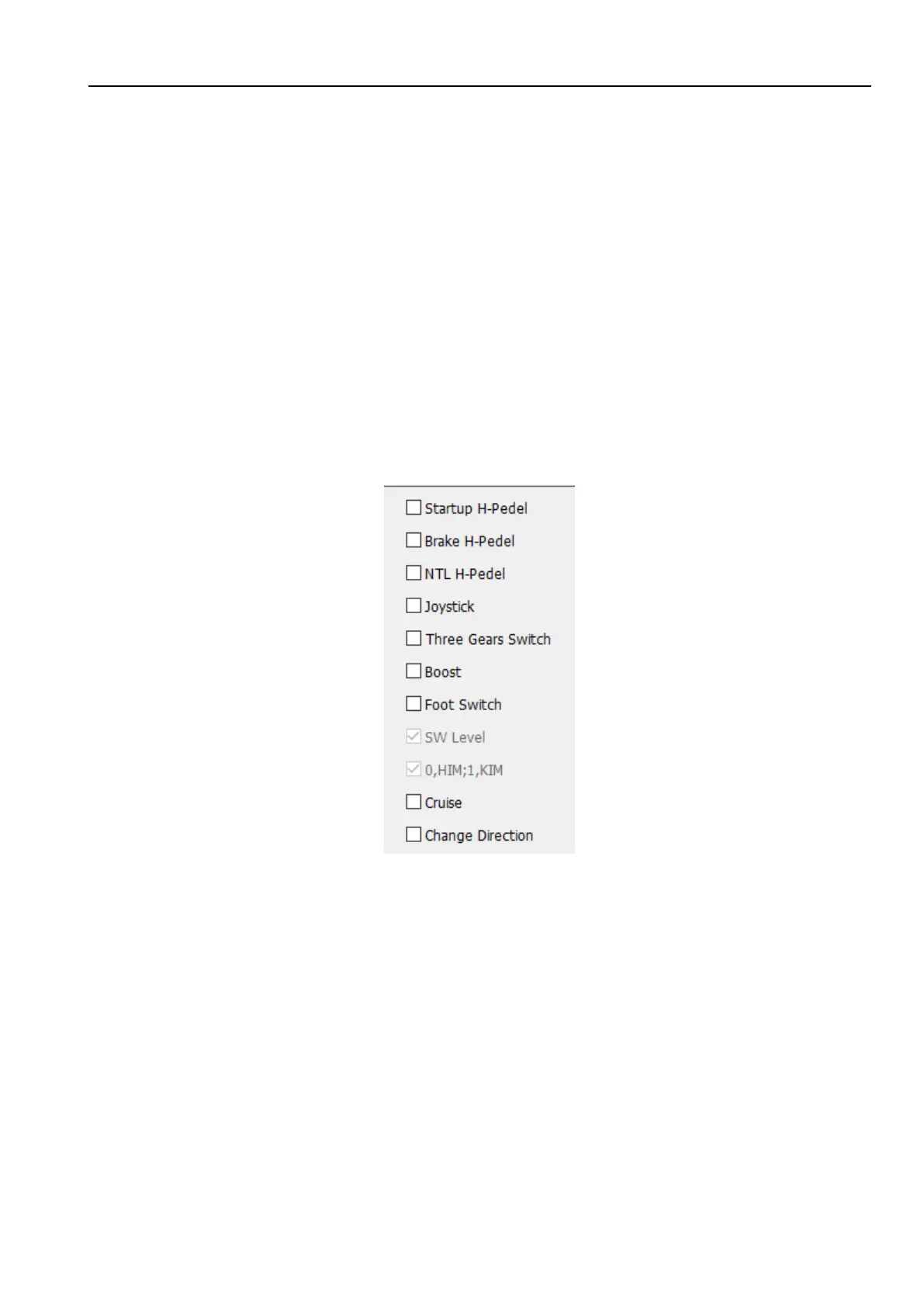

15,If the direction of the motor is not what you expected,please don’t try to do Identification
angle operation again.You just need to enable Change Direction item in the first picture of user
program.Please click Write Button and reset the power supply to activate the setting.Then the
motor will run on the expected direction.
Chapter 5 Maintenance
There are no user-serviceable parts inside the controllers. Do not attempt to open the
controller as this will void your warranty. However, periodic, exterior cleaning of the controller
should be carried out.
The controller is a high powered device. When working with any battery powered vehicle,
proper safety precautions should be taken that include, but are not limited to, proper training,
wearing eye protection, avoidance of loose clothing, hair and jewelry. Always use insulated
tools.
