Kelly KLS8080I/IPS Sinusoidal Brushless Motor Controller User’s Manual V 1.10
13
3.2.4 Communication Port
A 4pin connector to RS232 port is provided to communicate with host computer for calibration and
configuration.

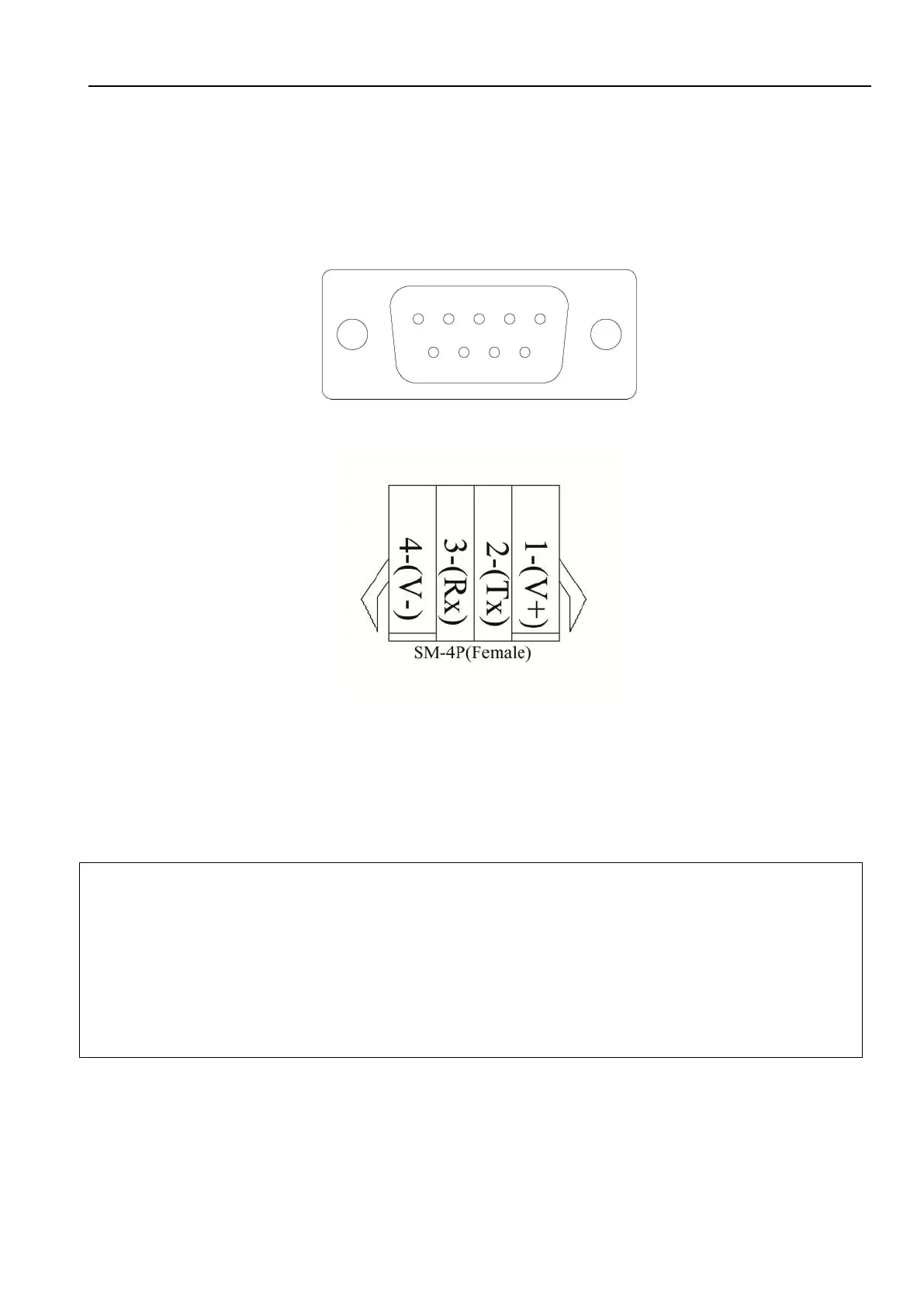

Figure 8: RS232 Interface on 4pin connector to RS232 converter
Figure 9
：
SM-4P connector for communication interface on KLS8080I controller
3.3 Installation Check List
Before operating the vehicle, complete the following checkout procedure. Use LED code as
a reference as listed in Table 1.
Caution:
• Put the vehicle up on blocks to get the drive wheels off the ground before beginning
these
tests.
• Do not allow anyone to stand directly in front of or behind the vehicle during the checkout.
• Make sure the PWR switch and the brake is off
• Use well-insulated tools.
• Prohibit trying to connect the controller to user program while the motor is still
running,let
alone change the settings in the user program.
