Kelly KLS8080I/IPS Sinusoidal Brushless Motor Controller User’s Manual V 1.10
7

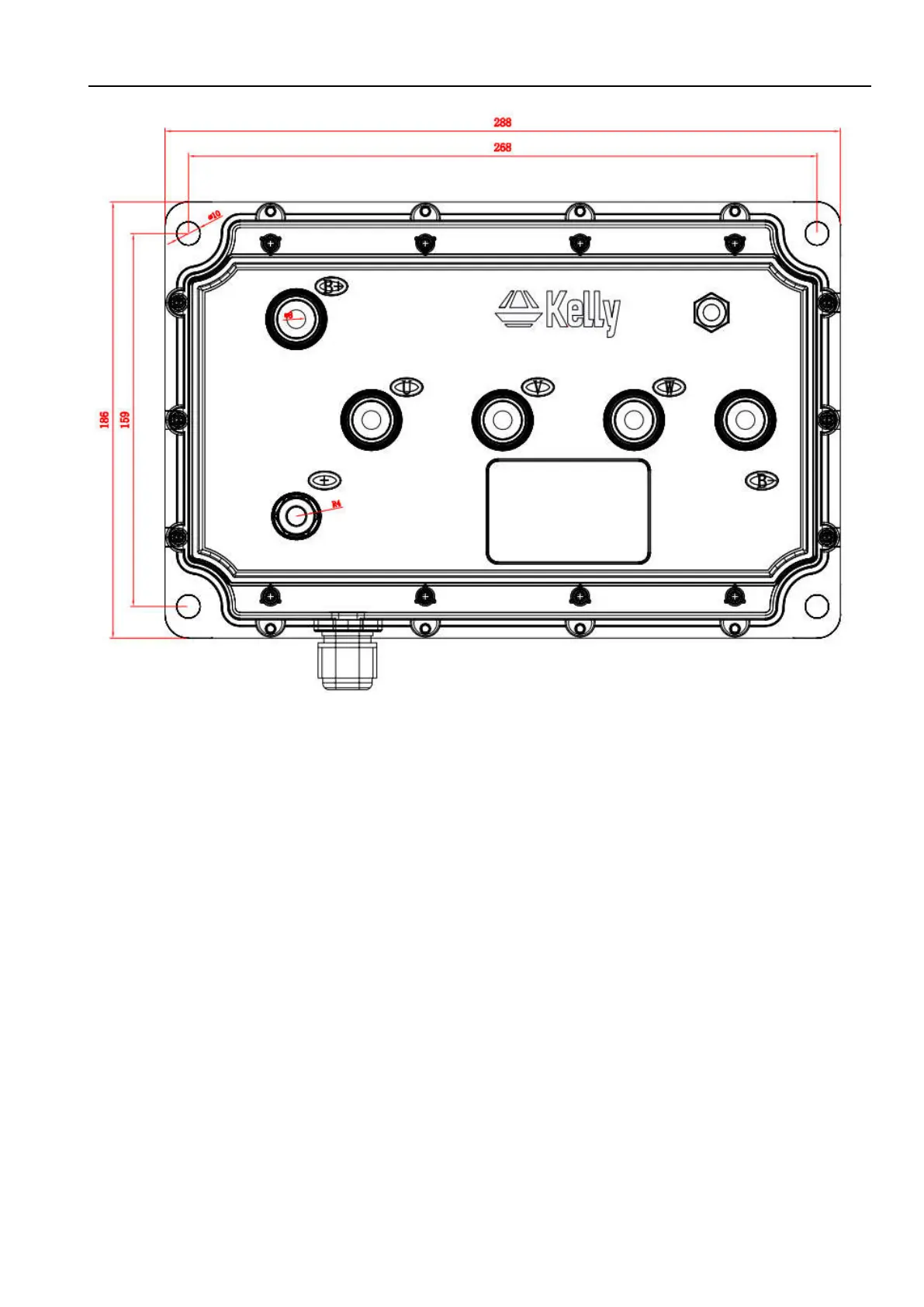

Figure2:KLS72601-8080I/IPS,KLS72701-8080I/IPS,KLS96501-8080I/IPS,KLS96601-8080I/IPS,KLS1
4401-8080I/IPS
mounting holes’ dimensions (dimensions in millimeters)
Size:288mm*186mm(268mm*159mm)*81mm;+/B+/B-/U/V/W:M8
