2. INSTALLATION
2.1. REMOvAL FROM PACkAGING
The equipment is packed in durable packages specially designed for them. Check the equipment
before taking it into use, to make sure that the equipment or a part of it have not got damaged
during the transportation. Also check that the delivery corresponds your order and that you have
received all the necessary instructions for installing and operating the equipment. The packaging
material can be recycled.
2.2. LOCATING ThE MAChINE
Place the machine on a horizontal, stable and clean ground. Protect the machine from heavy rain
and burning sunshine. Check that there is enough space for cooling air circulation in front of and
behind the machine.
2.3. SERIAL NUMbER
The serial number of the machine is marked on the machine CE-marking. Identicating the serial
number is the only proper means of maintaining and identifying parts for a specic product. It is
important to make correct reference to the serial number of the product when making repairs or
ordering spare parts.
2.4. INSTALLATION ANd MAIN PARTS
2.4.1. Assembling the equipment
The equipment is assembled in the following order:
1. Transport unit PM500 6185291
2. Cooling unit Fastcool 10
606810001
Assembly the transport unit according to the instructions in the package. Fasten the cooling unit
to the transport unit by using the screws and bolts delivered with the equipment.

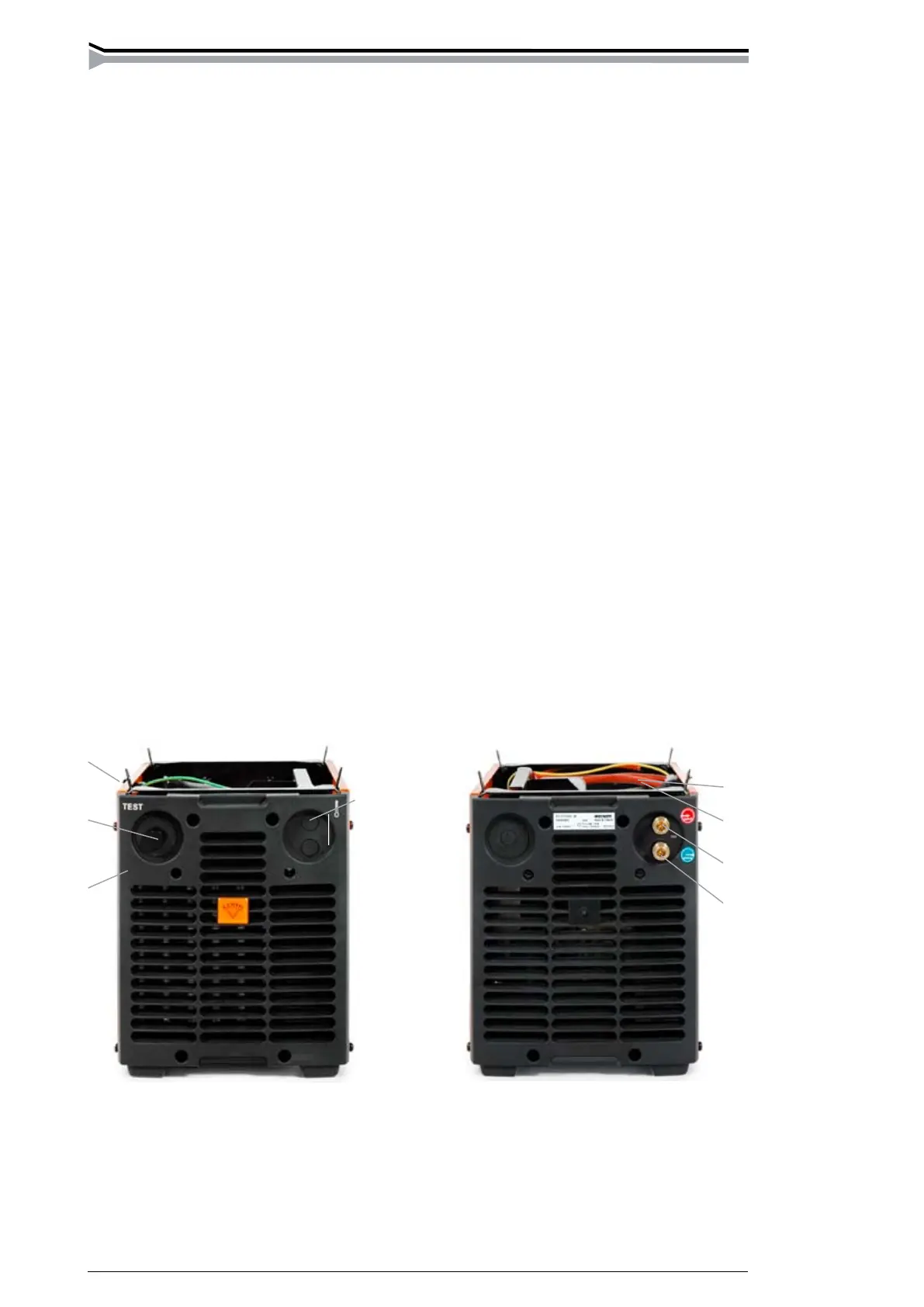

2.4.2. Main parts of cooling unit
Back side
E Mains voltage connection cable
F Control cable
G Cooling water output hose
H Cooling water input hose
Front machine
A Housing
B Test switch
C Overheat control lamp
D Filling hole
