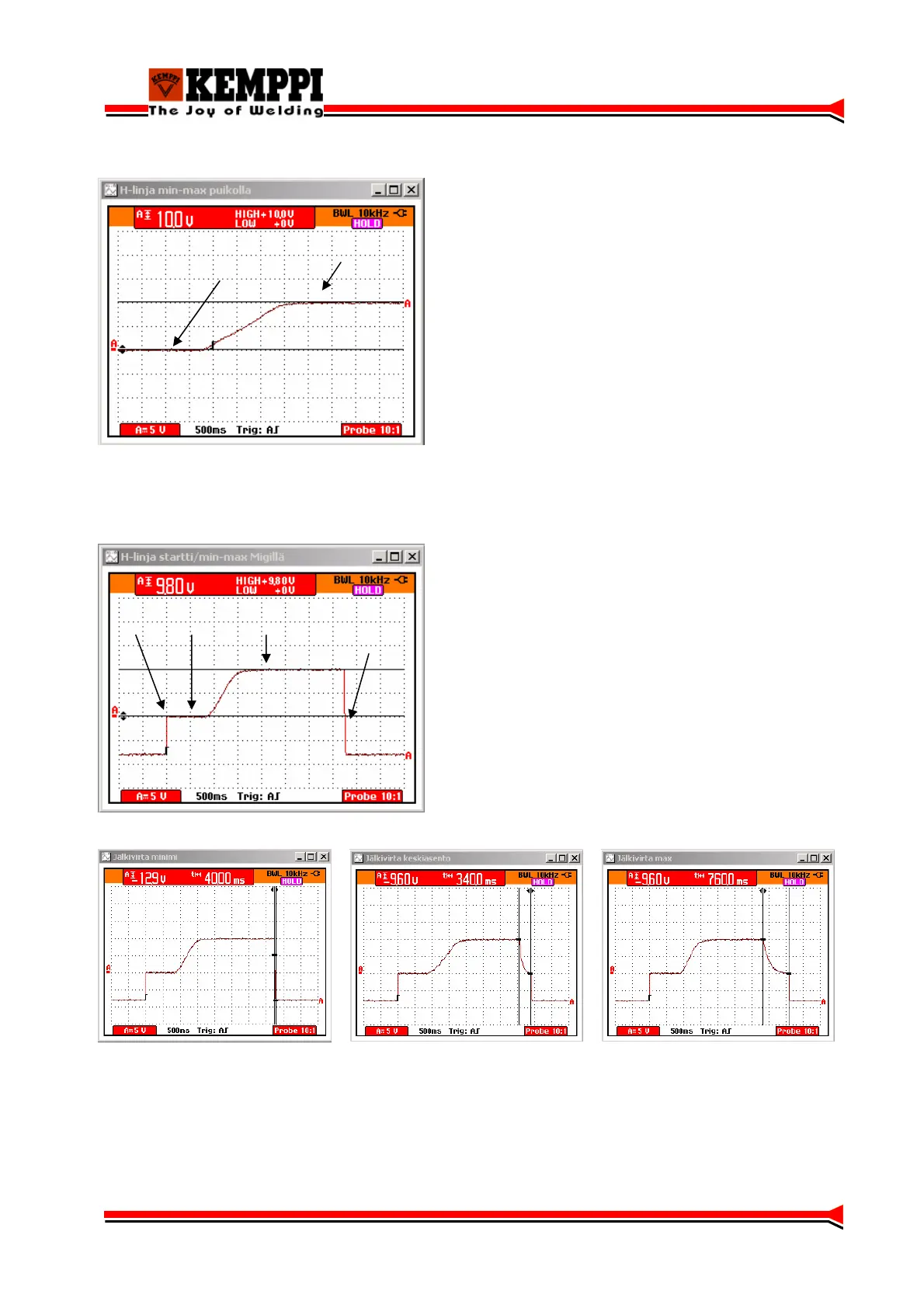

Voltages in the H-line of the control cable between the power source and the wire feeder:
On MMA the wire feeder unit starts the power stage and develops an analog set value voltage of
0-10 V.
Minimi
Maksimi
On MIG/MAG the wire feeder unit starts and stops the power stage accoding to the gun switch
and develops the analog set value voltage (0-10 V) and post current time.
Start
Minimum
Maximum
Stop
Post-current time minimum = 40 ms Post curren time medium = 340 ms Post current time maximum = 760 ms
