Kemppi MasterTig 2800 - IGBT Gate Pulse Waveforms (2800;3500)

Kemppi MasterTig 2800
31 pages
Save Page as PDF
Print Icon
To Next Page IconTo Next Page
To Next Page IconTo Next Page
To Previous Page IconTo Previous Page
To Previous Page IconTo Previous Page
Loading...

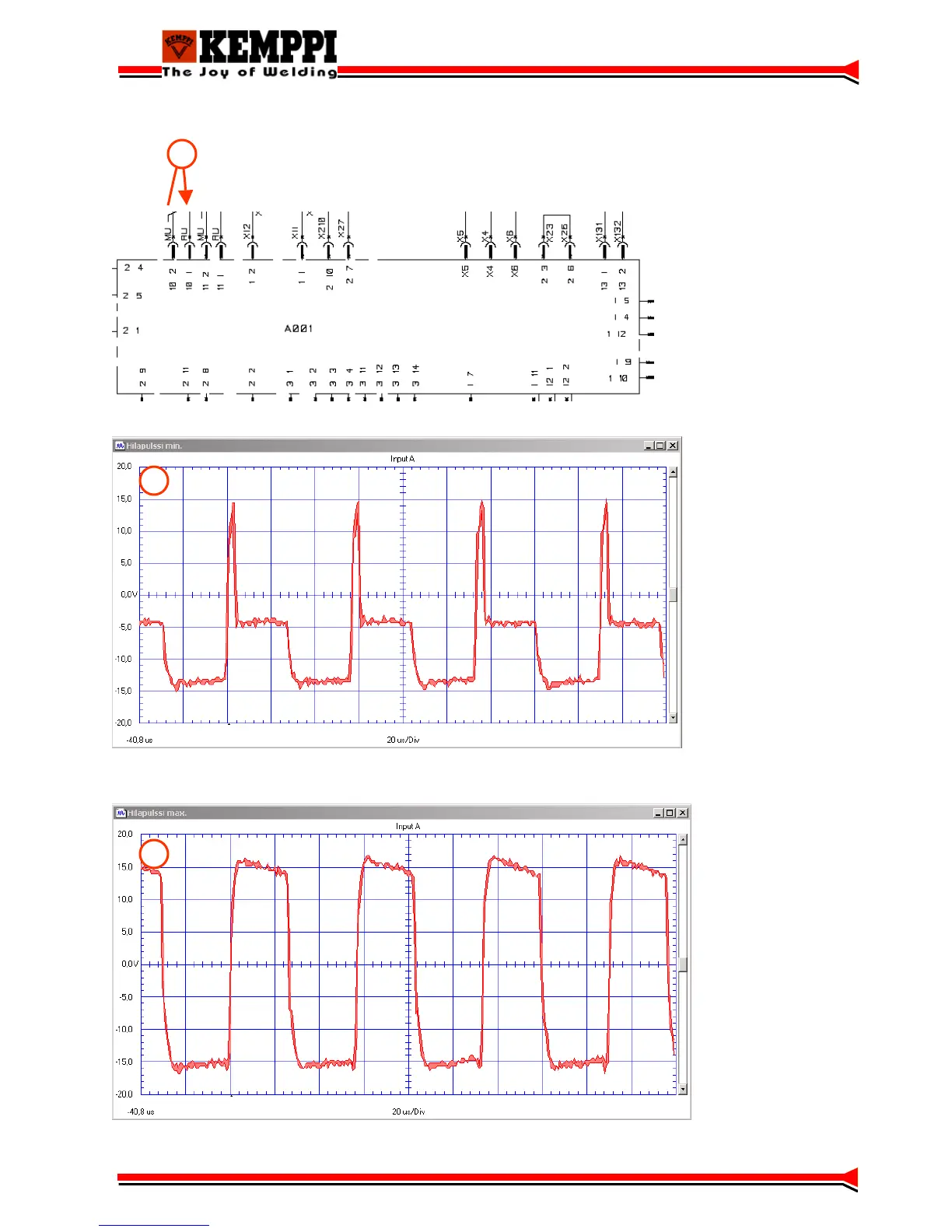

IGBT gate pulse with minimum power (2800/3500). Inverter operating frequency approx. 19 kHz (measuring point A).
IGBT gate pulse with maximum power (2800/3500). Inverter operating frequency approx. 19 kHz (measuring point A).
A
IGBT gate pulse (Master / Mastertig 2800/3500)
A
A
12
