Kemppi MasterTig 325DC User Manual

MasterTig 235ACDC, 325DC, 335ACDC, 425DC
Operating manual - EN

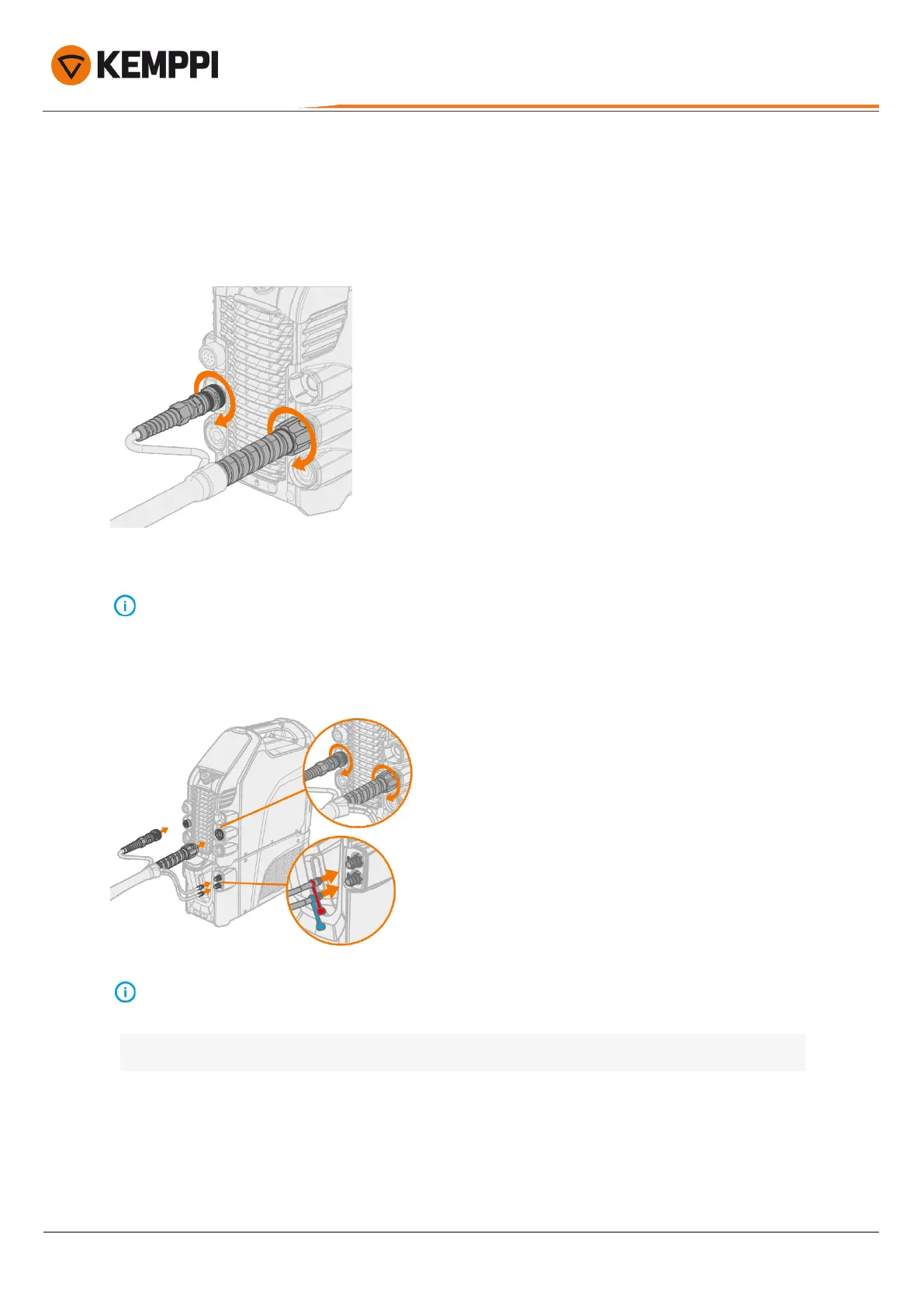

2.6 Connecting TIG torch
Gas-cooled TIG torch:
1. Assemble the TIG torch according to the instructions delivered with the torch.
2. Connect the TIG torch cables to the power source. Secure by turning the connectors clockwise.
Water-cooled TIG torch:
The cooling unit must already be installed and in place at this stage. Refer to "Installing cooling unit" on page10.
1. Assemble the TIG torch according to the instructions delivered with the torch.
2. Connect TIG torch cables and the water cooling inlet and outlet hoses to the units. Secure by turning the con-
nectors clockwise.
The water cooling connectors are color-coded.
Tip: For Kemppi welding torches, refer also to userdoc.kemppi.com.
© Kemppi
15
1920900 / 2052
