Kemppi MASTERTIG AC/DC 2000 User Manual
4
of 1
of 1 rating
31 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
12
–
Mastertig
AC/DC
2000,
2500,
2500W
,
3500W/0510
©
COPYRIGHT
KEMPPI
OY
12
13
14
6
5
4
3
1
22
21
19
1
1
12
13
14
6
5
4
3
2
1
22
21
20
19
3.

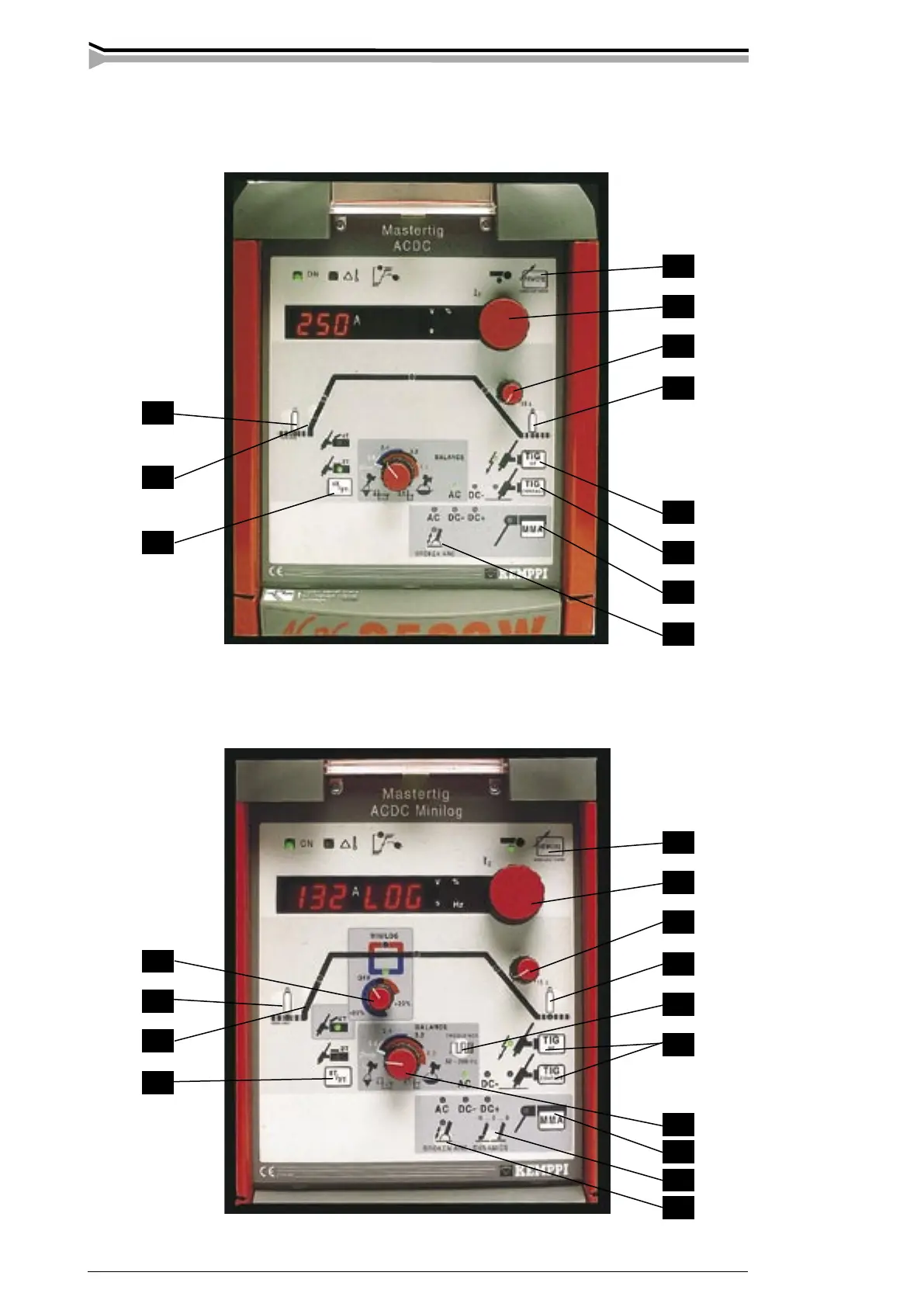

OPERA
TING P
ANELS
BASIC
MINILOG
11
13
Table of Contents
Default Chapter
2
Table of Contents
2
1 Preface
3
Introduction
3
Product Introduction
3
Operation Safety
4
2 Installation
5
Cabling the Machine
5
Siting the Machine
7
Start of Installation
7
Connecting the Machine to the Mains Supply
8
Cable for MMA Welding and Return Current Cable
9
The Welding Torch
9
Electrodes to be Welded
9
TIG DC Welding
9
Sharpening of the Electrode
9
TIG AC Welding
10
Balance
10
Shield Gas
11
Installing Gas Bottle
11
3 Operating Panels
12
Numerical Displays and Signal Lights of the Panel
14
Use of the Remote Control
14
MMA Welding
14
Selection of Type of Current
14
Broken Arc Method
14
Control of MMA Welding Dynamics (Only with Minilog and Pulse Panels)
15
TIG Welding
15
Selection of TIG Welding and Type of Current
15
Spark Ignition
15
Contact Ignition
15
Use and Selection of Operation of the Torch Switch
16
Adjustment of the Down-Slope Time of the Welding Current
17
Adjustment of the Up-Slope Time of the Welding Current
17
Adjustment of the Pre-Gas and Post-Gas Times
17
Adjustment of the Form of the Arc, BALANCE
17
Frequency Adjustment of TIG AC Welding (Only with Minilog and Pulse Panel)
18
Minilog Operation (Only with Minilog and Pulse Panel)
18
Pulse Welding (Only with the Pulse Panel)
19
Control of the Start Current (Only with the Pulse Panel)
19
Fusion Spot Welding (Only with a Pulse Panel)
19
Memory Functions (Only with the Pulse Panel)
20
Calling the Values from the Memory
20
Saving a Welding Situation (Parameters) in the Memory
20
Code Locking
20
Installing the Code Locking
21
Turning the Machine on When the Code Locking Is on
21
Removal of Code Locking
21
Changing the Code
21
4 Cooling Unit (Only Mastertig Ac/DC 2500W, -3500W)
22
5 Internal Protections of the Machine
22
Overheating Protection
22
Over-Voltage Protection of the Mains Supply Voltage
22
The Wrong Voltage Selection
22
Protection of a Water-Cooled Torch
22
6 Accessories
23
Remote Control Units
23
Connecting the Foot Pedal Unit
23
Calibration of the Machine for the Foot Pedal Unit
23
Wheel Barrows and Transport Chassises
23
7 Extra Functions
24
8 Maintenance
25
The Welding Torch
25
The Welding End
25
The Torch Cable
25
Cables
25
The Power Source
26
Regular Maintenance
26
9 Operation Disturbances
26
10 Ordering Numbers
26
Welding Cables
27
11 Technical Data
28
