TECHNICAL SERVICE MANUAL FOR MASTERTIG ACDC

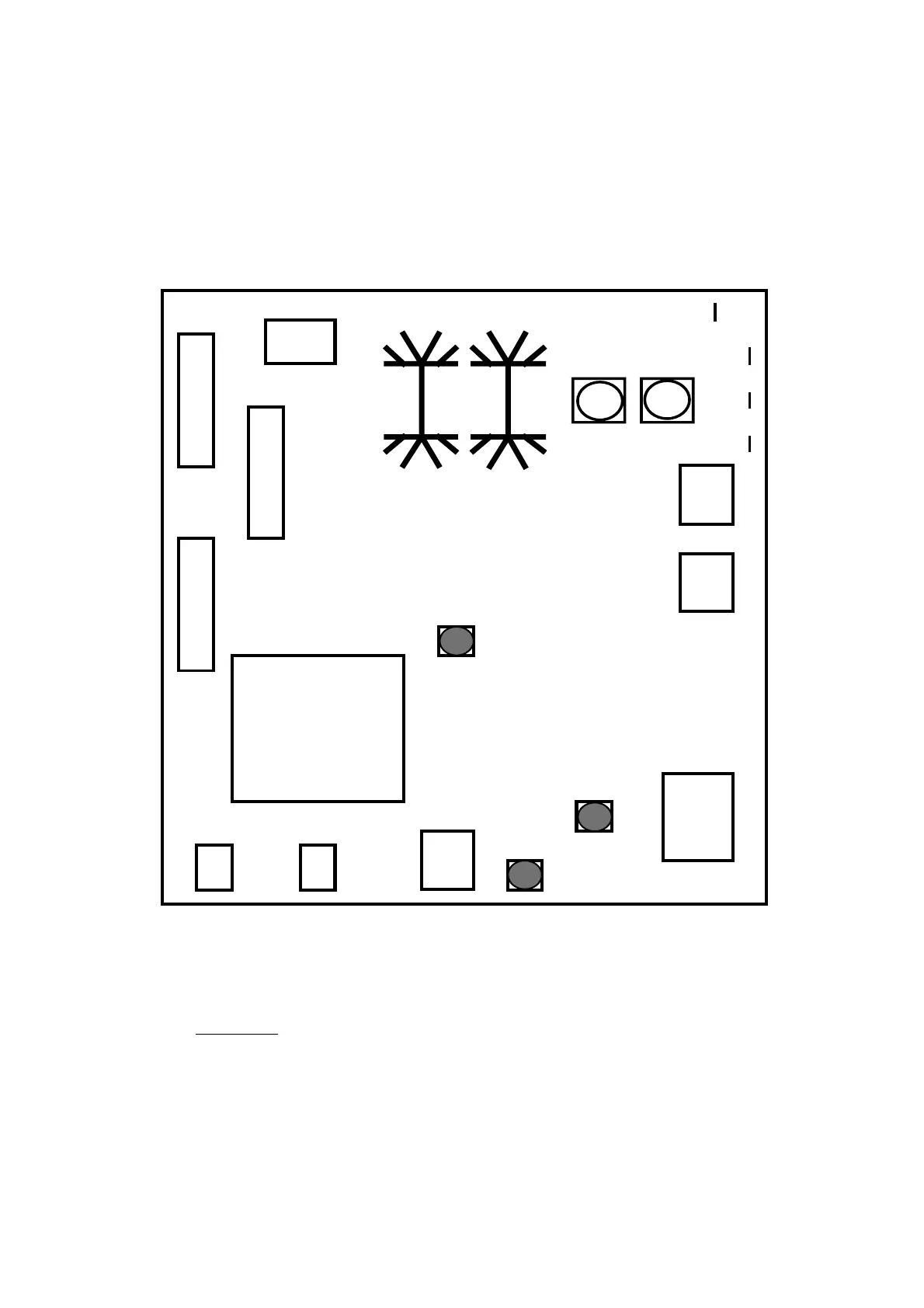

PICTURE 2. TRIMMERS IN PCB A002
MASTERTIG AC/DC A002
F2
F4
X2
0
X14
X9
X
11
X4X3
T1
X2
X1
X1
0
X8
N4 N1 N2
R44
R118
R119
X22
X5
X6
X7
TRIMMERS
R44 ADJUSTMENT FOR BASIC FREQUENCY
R118 ADJUSTMENT FOR DC- MAX CURRENT
R119 ADJUSTMENT FOR DC+ MAX CURRENT
