Service manual Minarc Evo 150 and 180
Version 1.3
30.9.2015
6
Kemppi Oy

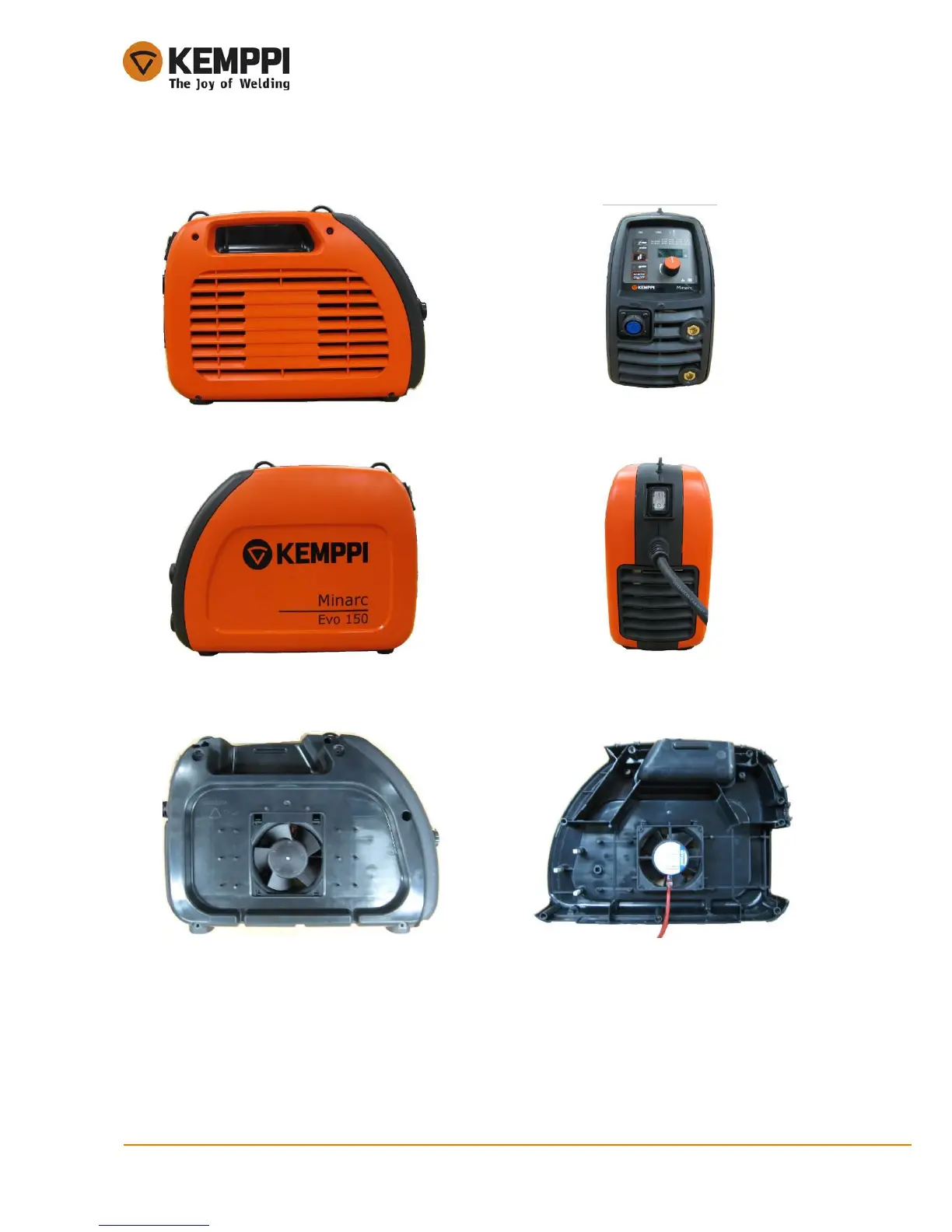

3.3. Construction
The cooling fan is installed so that the air flows from the left side plate to Z001 card. Air comes out
through the front and the back plate grills.
Left side
Front
Right side
Back
removed
cooling fan
