Kemppi Minarc Evo 180 Service Manual

Service manual Minarc Evo 150 and 180
Version 1.3
30.9.2015
7
Kemppi Oy

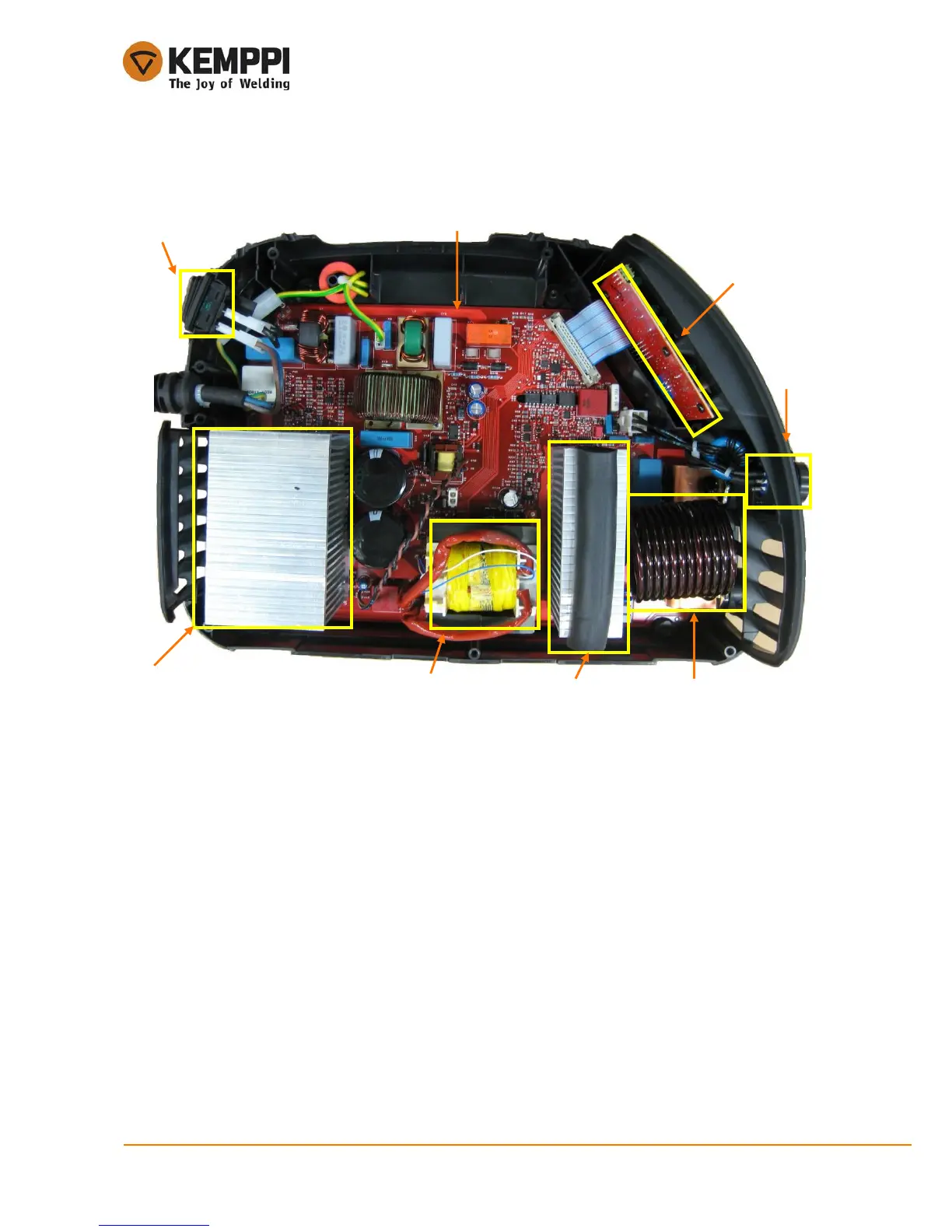

3.3.1. Inner structure
1. Main switch
2. Primary heat sink
3. T001 main transformer
4. Secondary heat sink
5. Secondary choke
6. Remote control socket
7. A001 control card
8. Z001 main circuit card
1.
2.
3.
4.
5.
7.
6.
8.

Kemppi Minarc Evo 180 Specifications

General

Input Voltage	230 V
Protection Class	IP23S
Welding Processes	MMA, TIG
Open Circuit Voltage	85 V
Electrode Sizes	1.5 - 4.0 mm
Input Frequency	50/60 Hz
Power Factor	0.99
Efficiency	82%
