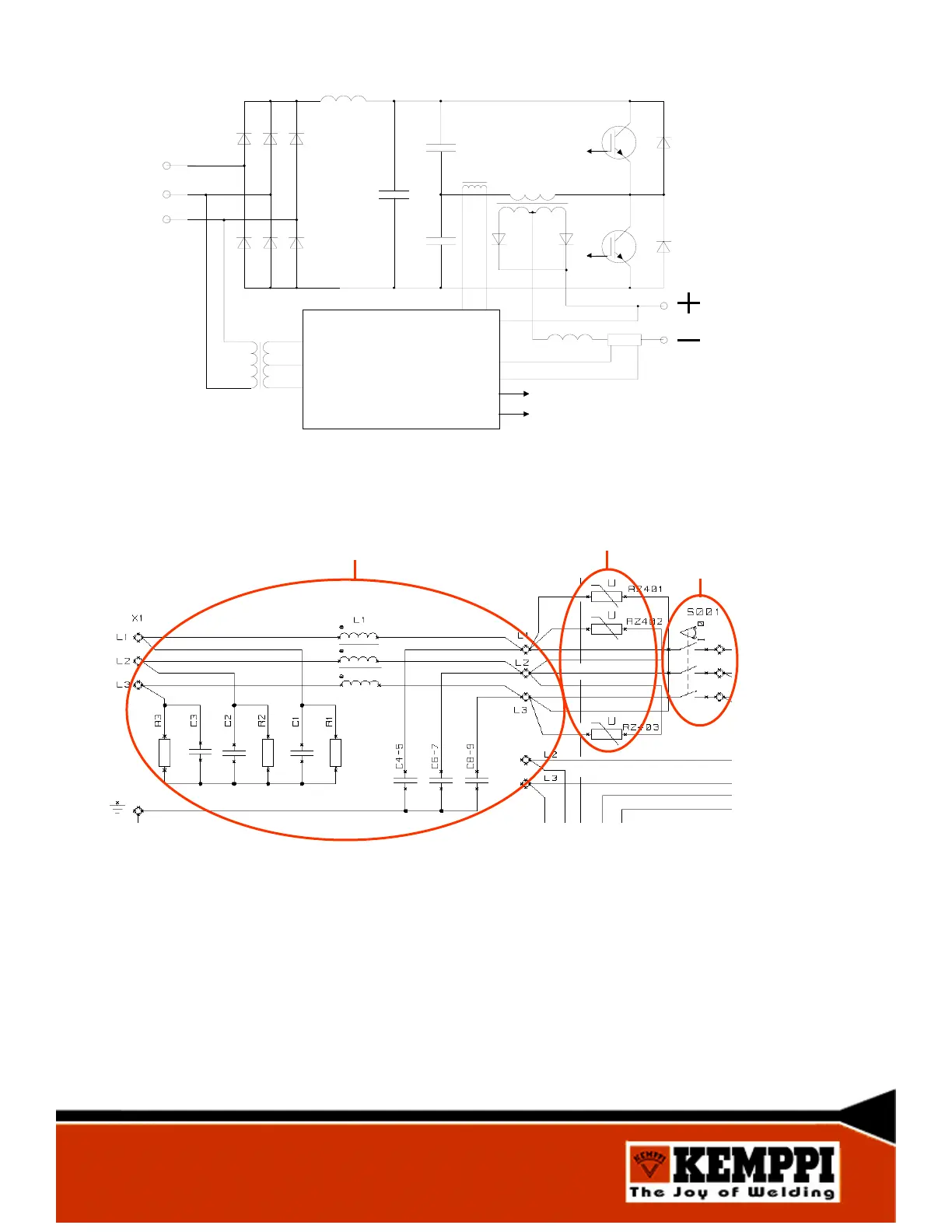

Simplified main circuit diagram
V1
V2
V1
V2
Control card A001
L1
L2
L3
The filter card Z004 dampens the electromagnetic disturbances conducting to the net (EMI).
Varistors (550 V) form an overvoltage protection against low energy voltage spikes. Note! Filter
card Z004 and varistors are mounted before the main switch S001!
Main circuit components
Filter card Z004
Varistors (550V)
Main switch S001
5
