Kemppi WELDFORCE KPS 3500 Service Manual

Control cable connections
Control cable connections

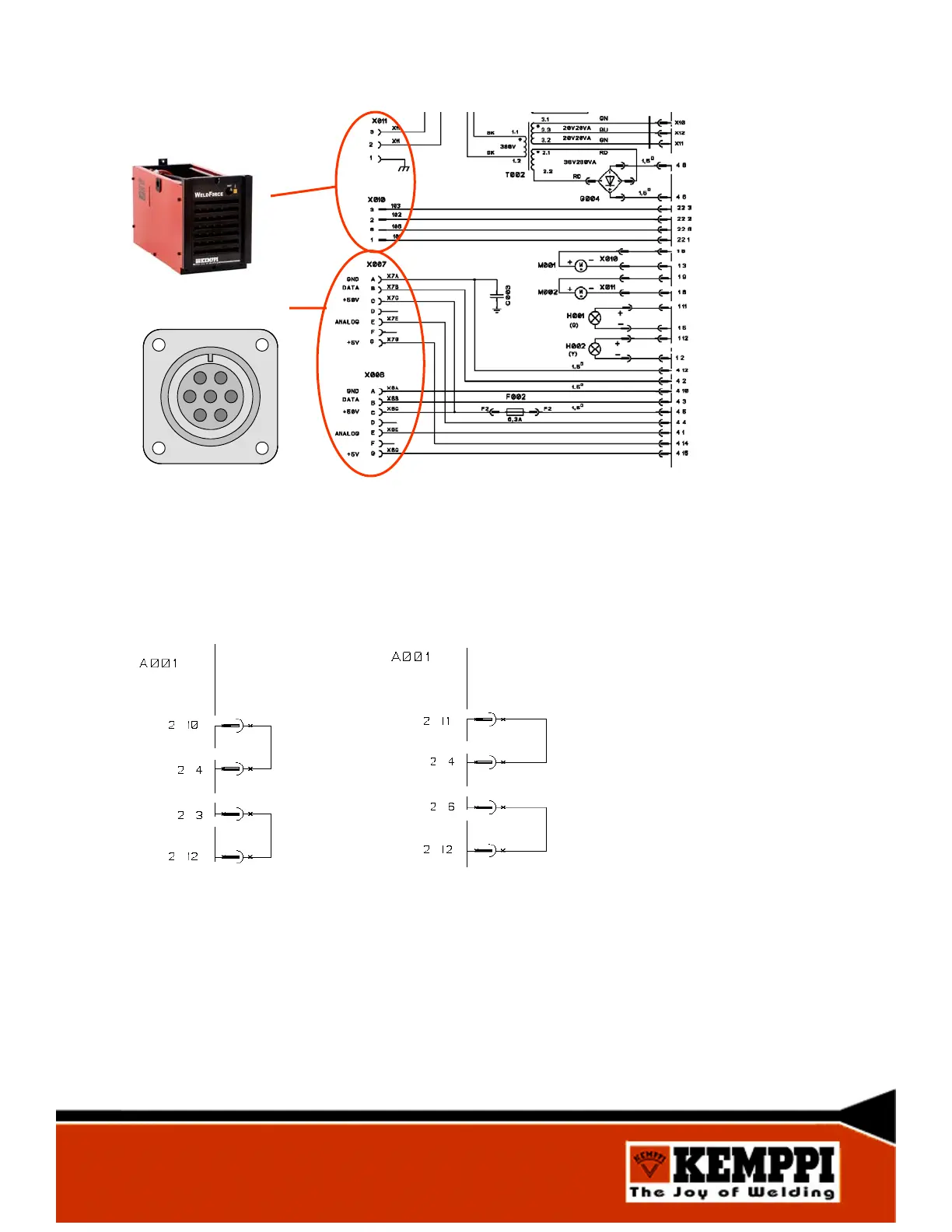

The auxiliary units are connected to power source´s control cable connectors X006 and X007.
The cooling unit KWU-10 is connected to connectors X010 and X011.
KPS 4500 KPS 5500
The control card A001 is similar in all Kemppi WELDFORCE
TM
-power sources. The machine size
is coded with short circuit loops, except in Kemppi WELDFORCE
TM
3500, which has no short
circuit loops.
