TO REPLACEAGITATOR
ElectricalShock Or Personal Injury
Hazard
Disconnectelectrical supply before
servicingor cleaning the unit. Failure
to do so could result In electricalshock
or personal injuryfrom cleaner sud-
denly starling.

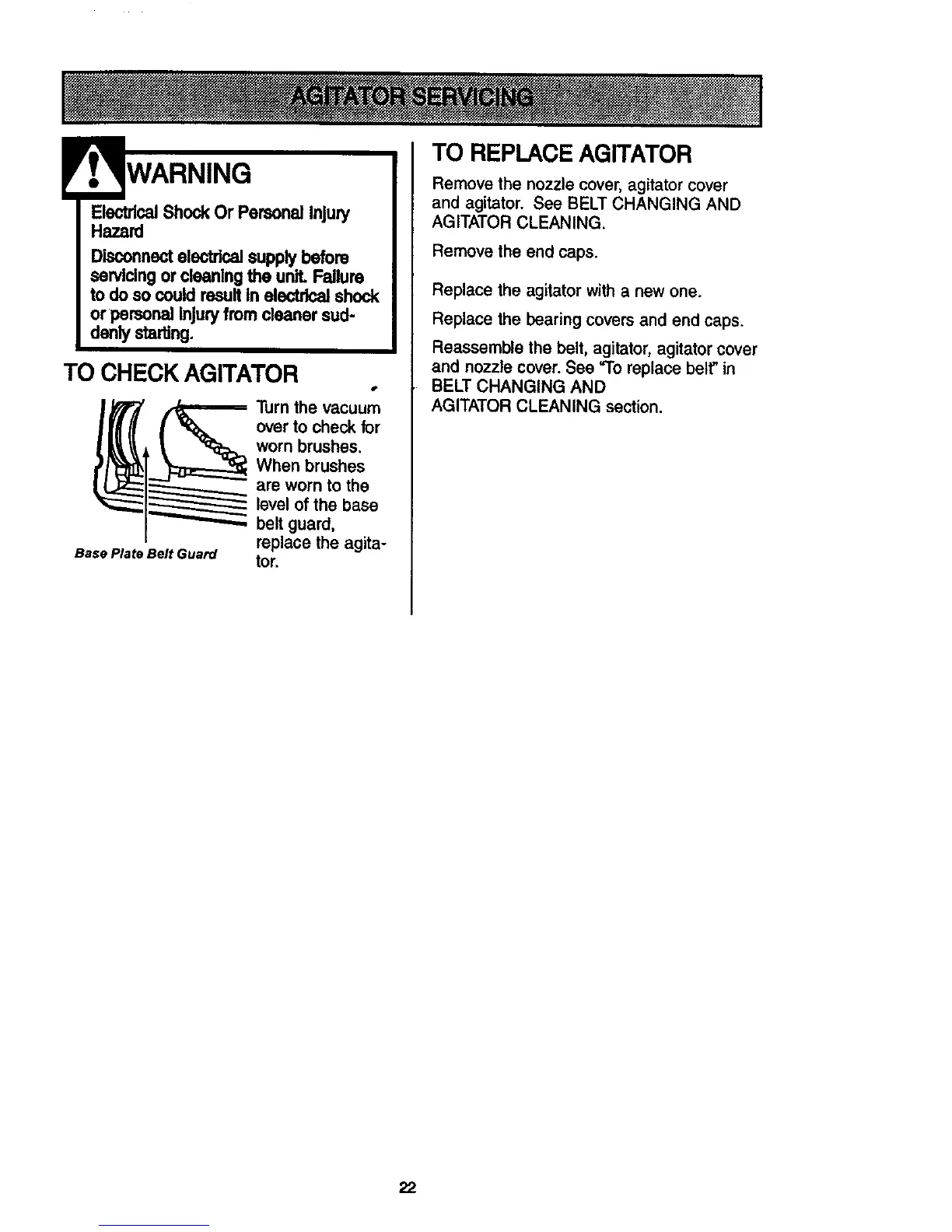

TO CHECK AGITATOR
Base Plate Belt Guard
Turn the vacuum
over to check for
worn brushes,
When brushes
are worn to the
level of the base
belt guard,
replace the agita-
tor.
Remove the nozzle cover, agitator cover
and agitator. See BELT CHANGING AND
AGITATOR CLEANING.
Remove the end caps.
Replace the agitator with a new one.
Replace the bearing covers and end caps.
Reassemble the belt, agitator, agitator cover
and nozzle cover. See "To replace belt" in
BELT CHANGING AND
AGITATOR CLEANING section.
22
