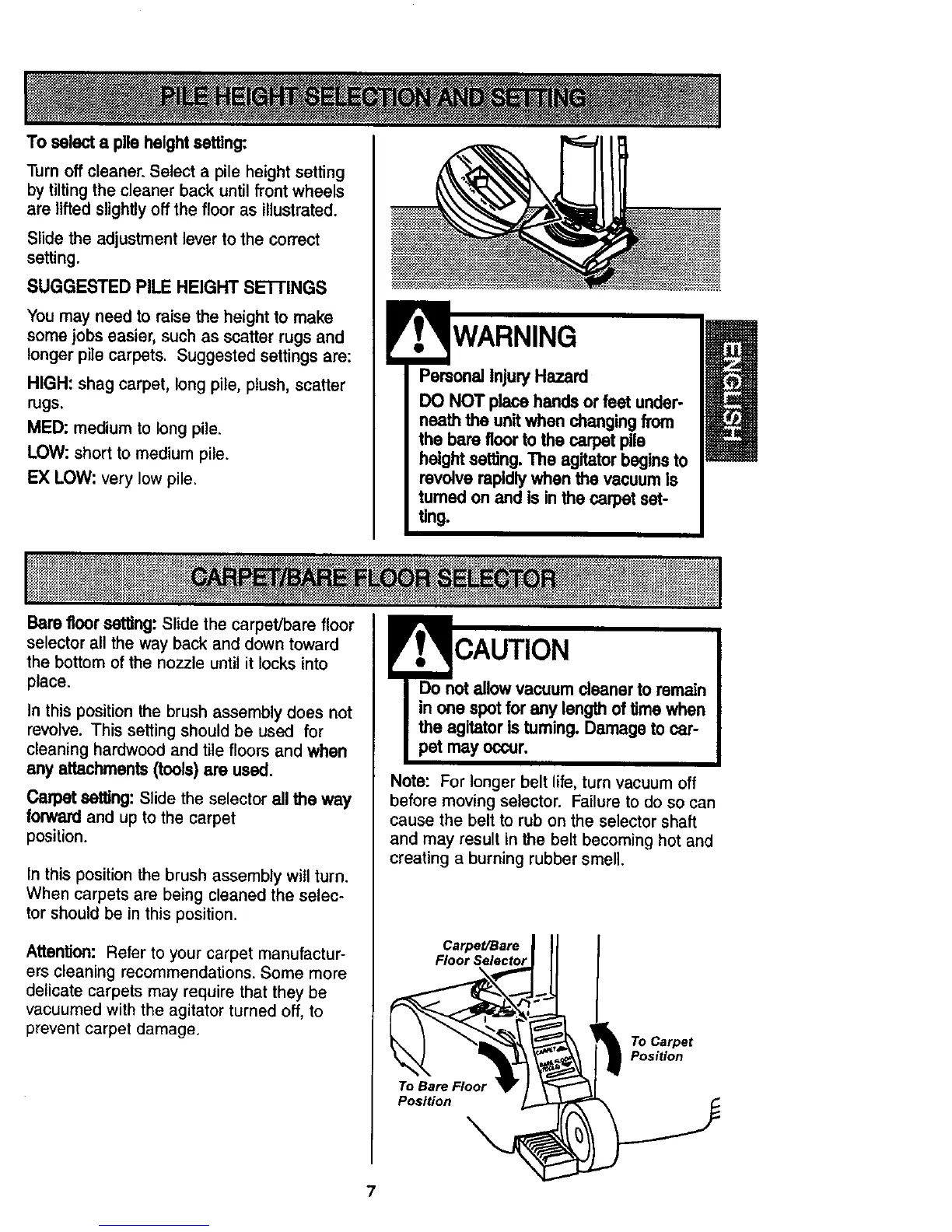

To select a pile height setting:
Turn off cleaner. Select a pile height setting
by tilting the cleaner back until front wheels
are lifted slightly off the floor as illustrated.
Slide the adjustment lever to the correct
setting.
SUGGESTED PILE HEIGHT SE'n'INGS
You may need to raise the height to make
some jobs easier, such as scatter rugs and
longer pile carpets. Suggested settings are:
HIGH: shag carpet, long pile, plush, scatter
rugs.
MED: medium to long pile.
LOW: short to medium pile.
EX LOW" very low pile.
Bare floorsetting: Slide the carpet/bare floor
WARNING
Personal Injury Hazard
DO NOT place hands or feet under-
neath the unitwhen changingfrom
the bare floor to the carpet pile
height setting.The agitatorbeginsto
revolve rapidlywhen the vacuum Is
tumed on and Is in the carpet set-
ting.
selector all the way back and down toward
the bottom of the nozzle until it locks into
place.
In this position the brush assembly does not
revolve. This setting should be used for
cleaning hardwood and tile floors and when
any attachments (tools) are used,
Carpet setting: Slide the selector all the way
forward and up to the carpet
position.
In this position the brush assembly will turn.
When carpets are being cleaned the selec-
tor should be in this position.
Attention: Refer to your carpet manufactur-
ers cleaning recommendations. Some more
delicate carpets may require that they be
vacuumed with the agitator turned off, to
_revent carpet damage.
CAUTION
Do not allowvacuum cleaner to remain
in one spot for any length of time when
the agitatoris turning. Damage to car-
pet may occur.
Note: For longer belt life, turn vacuum off
before moving selector. Failure to do so can
cause the belt to rub on the selector shaft
and may result in the belt becoming hot and
creating a burning rubber smell.
Carpet/Bare
Floor Selector
To Bare Floor
Position
To Carpet
Position
7
