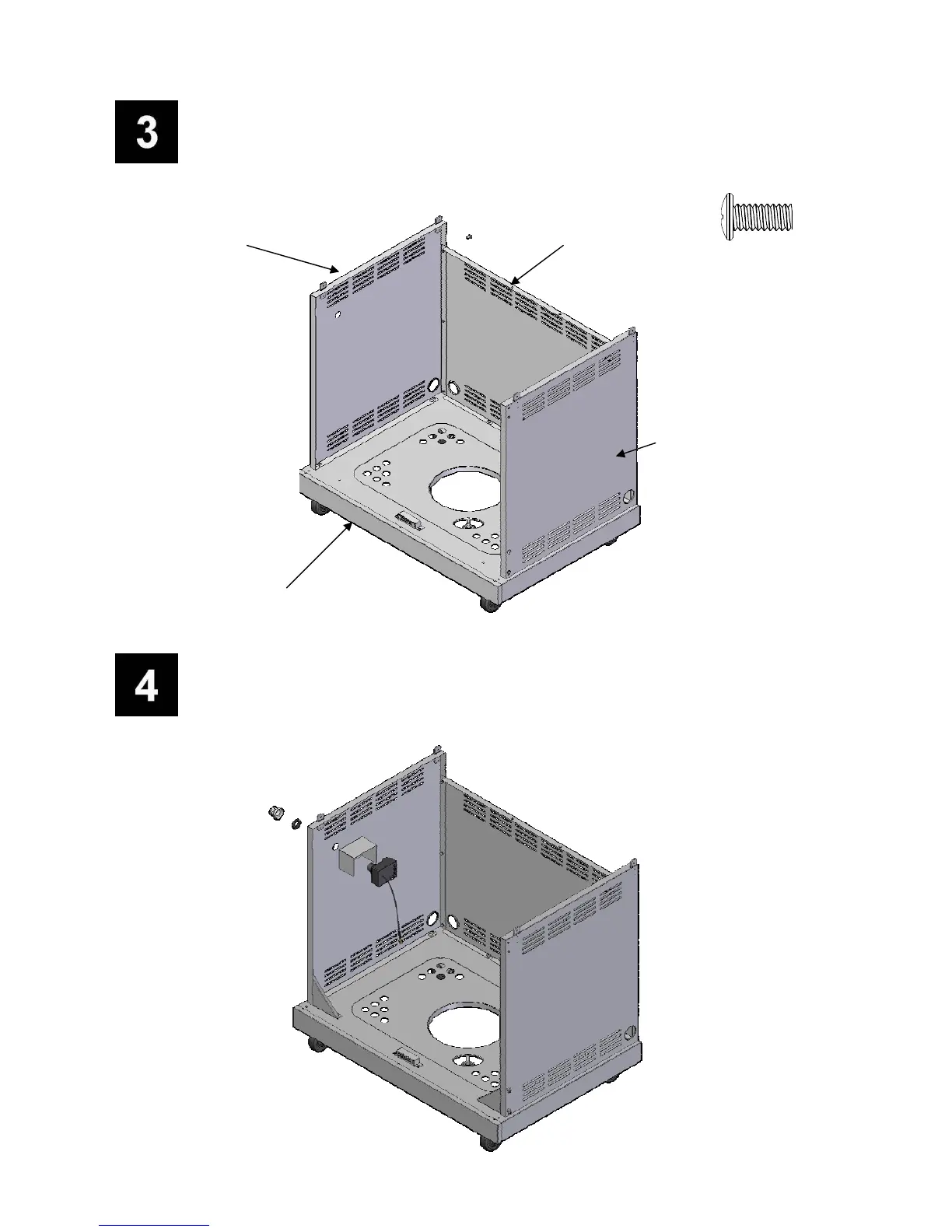

Loosen the 4 screws at the corners of the bottom panel 3 to 4 turns.
Place the holes in the base of each side panel over the loosened screws and slide the panel to the
front until it stops. Retighten the screws.
Use six 3/16-24 x3/8 in. screws to fasten the rear panel to side panels.
Remove the cap and nut from the electrical igniter. Use the nut to assemble the igniter and igniter
housing to the left panel as shown. Screw cap onto igniter.
3/16-24 x 3/8 in. Screw
Qty. 6
Left Panel Rear Panel
Right Panel
Bottom Panel
