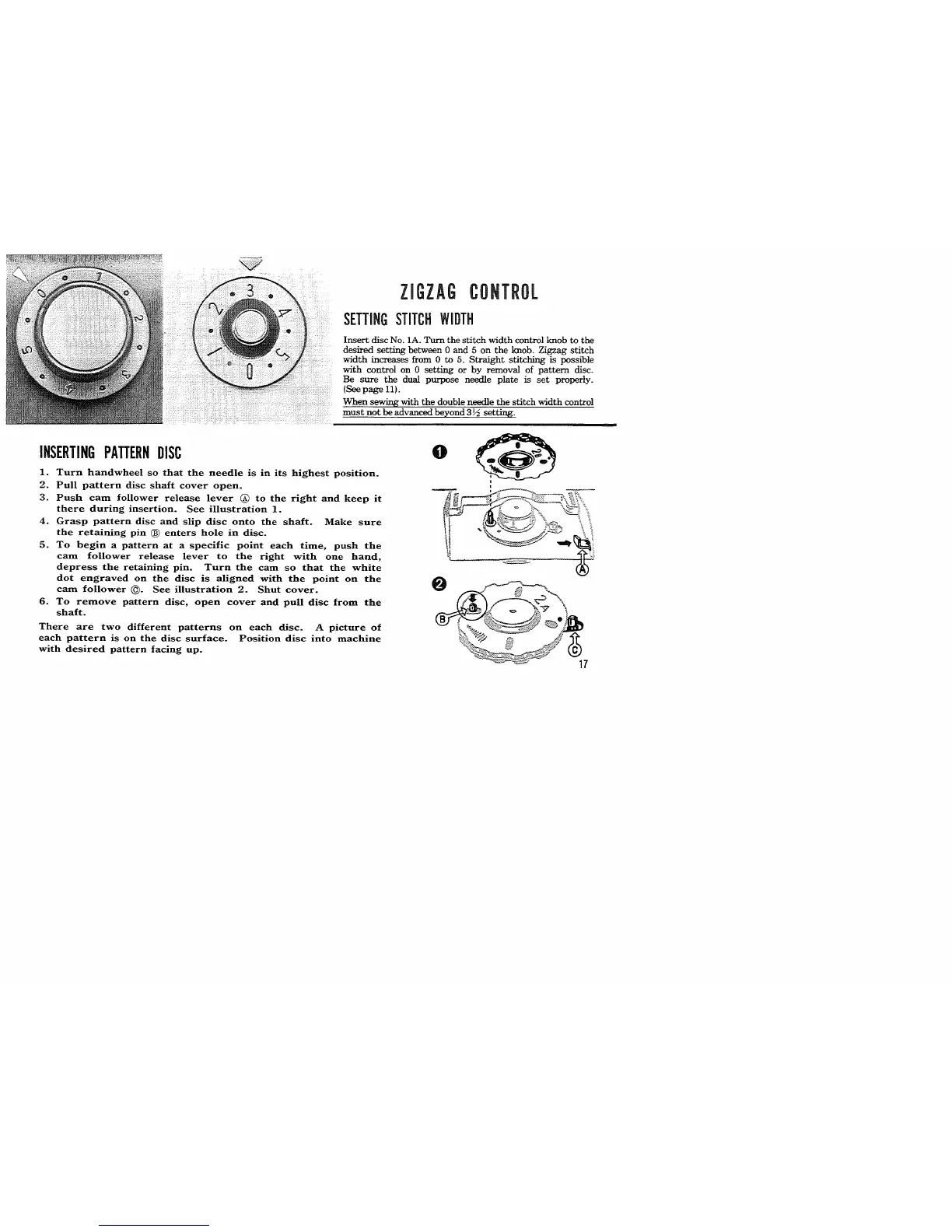

ZIGZAGCONTROL
SETTINGSTITCHWIDTH
Insert disc No. 1A. Turn the stitch width control knob to the
desired setting between 0 and 5 on the knob. Zigzag stitch
width increases from 0 to 5. Straight stitching is possible
with control on 0 setting or by removal of pattern disc.
Be sure the dual purpose needle plate is set properly.
(See page 11).
When sewing with the double needle the stitch width control
must not be advanced beyond 3_ setting.
INSERTINGPATTERNDiSC
1. Turn handwheel so that the needle is in its highest position.
2. Pull pattern disc shaft cover open.
3. Push cam follower release lever @ to the right and keep it
there during insertion. See illustration 1.
4. Grasp pattern disc and slip disc onto the shaft. Make sure
the retaining pin _) enters hole in disc.
5. To begin a pattern at a specific point each time, push the
cam follower release lever to the right with one hand,
depress the retaining pin. Turn the cam so that the white
dot engraved on the disc is aligned with the point on the
cam follower ©. See illustration 2. Shut cover.
6. To remove pattern disc, open cover and pull disc from the
shaft.
There are two different patterns on each disc. A picture of
each pattern is on the disc surface. Position disc into machine
with desired pattern facing up.
