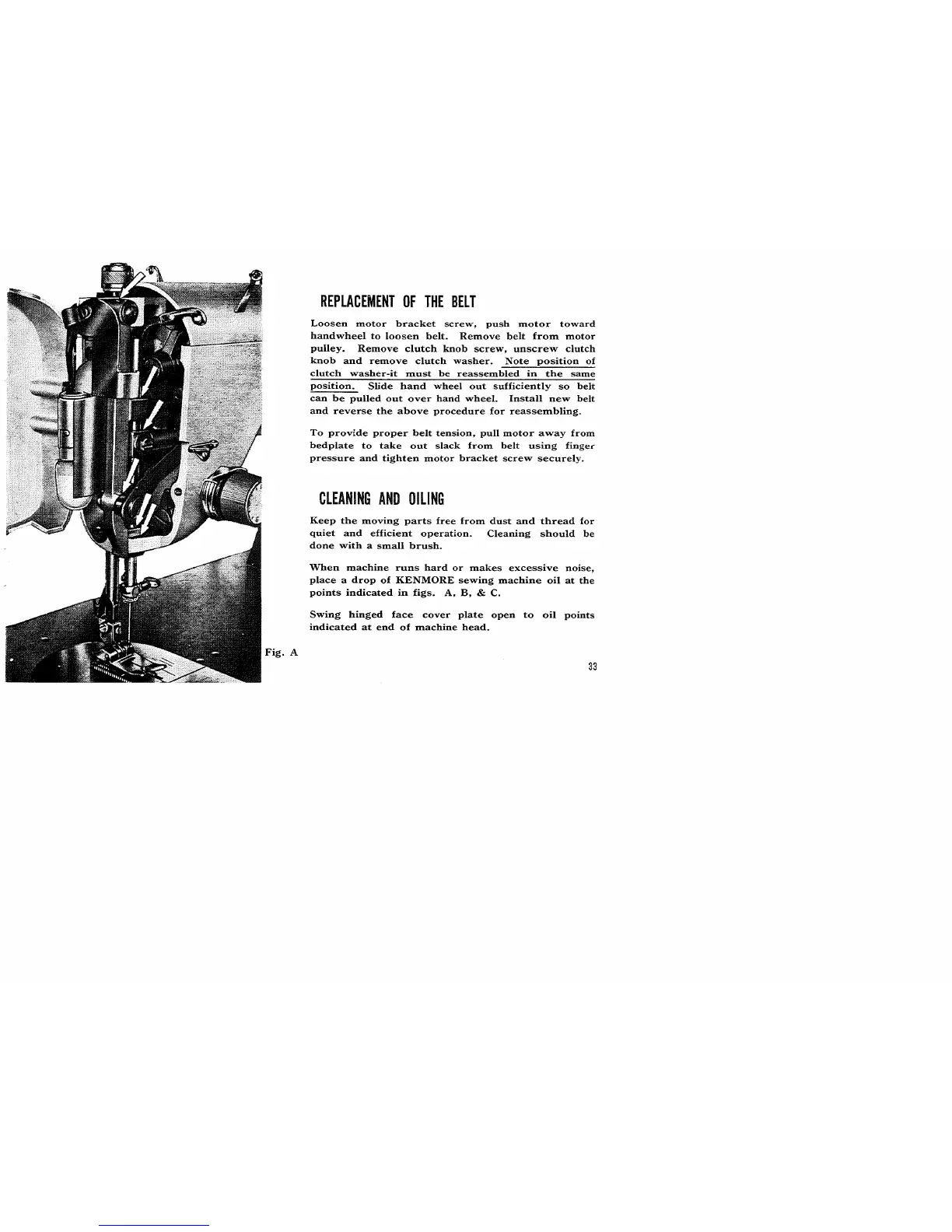

REPLACEMENTOFTHEBELT
Loosen motor bracket screw, push motor toward
handwheel to loosen belt. Remove belt from motor
pulley. Remove clutch knob screw, unscrew clutch
knob and remove clutch washer. Note position of
clutch washer-it must be reassembled in the same
position. Slide hand wheel out sufficiently so belt
can be pulled out over hand wheel. Install new belt
and reverse the above procedure for reassembling.
To provide proper belt tension, pull motor away from
bedplate to take out slack from belt using finger
pressure and tighten motor bracket screw securely.
Fig. A
CLEANINGANDOILING
Keep the moving parts free from dust and thread for
quiet and efficient operation. Cleaning should be
done with a small brush.
When machine runs hard or makes excessive noise,
place a drop of KENMORE sewing machine oil at the
points indicated in figs. A, B, & C.
Swing hinged face cover plate open to oil points
indicated at end of machine head.
33
