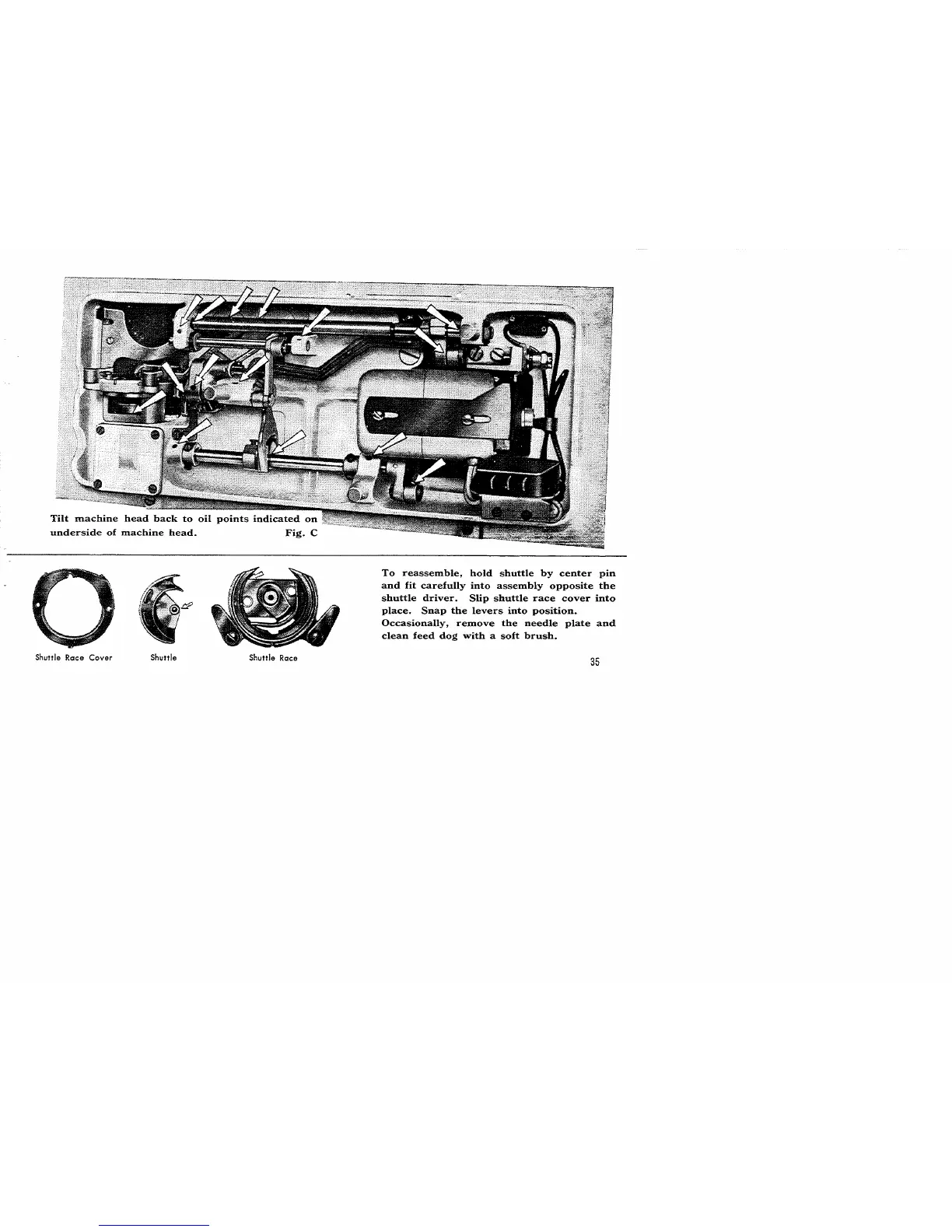

Tilt machine head back to oil points indicated on
underside of machine head. Fig. C
To reassemble, hold shuttle by center pin
and fit carefully into assembly opposite the
shuttle driver. Slip shuttle race cover into
place. Snap the levers into position.
Occasionally, remove the needle plate and
clean feed dog with a soft brush.
Shuttle Race Cover Shuttle Shuttle Race 3_
