Kenmore 35713 - Preparing for Use; Semi-Permanent Installation

134
5,25 in.
in the window
pane
in the wall: you are
recommended to
insulate the sec-
tion of wall using
suitable insulation.
in the wood-
en kickboard
of a French
window
F
Preparing for use
MAX100 cm
MAX 39 inches
MIN 35 cm
MIN 14 inches

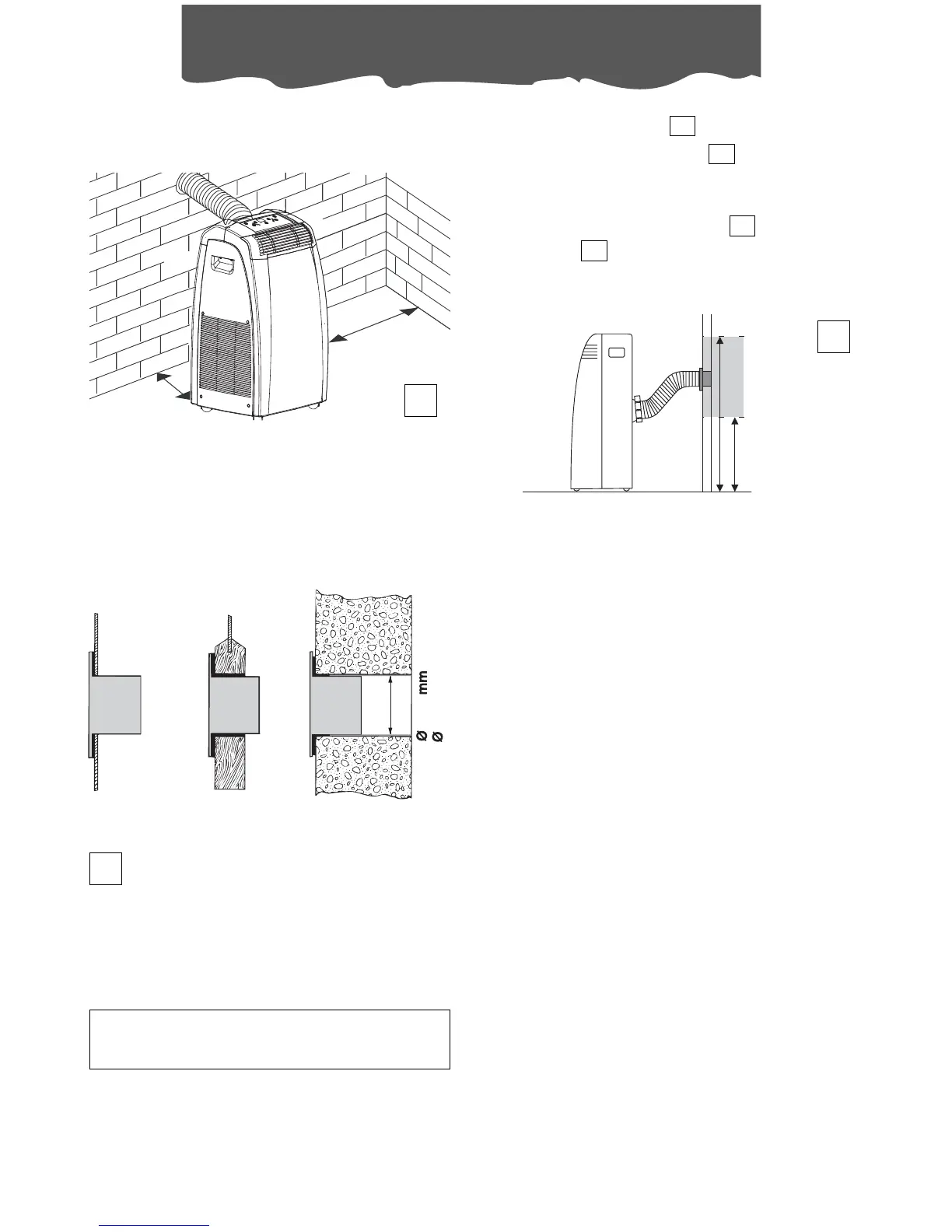

SEMI-PERMANENT INSTALLATION
If required, your appliance can also be
installed semi-permanently (Fig. E).
Proceed as follows:
• Drill a hole (ø 134 mm) in an outside wall or
through a window pane.
Respect the dimensions and height of the
hole given in figure F and G.
• Fit the wall flange into the hole.
• Fit the air exhaust hose in the relevant
hose located on the rear side of the appli-
ance. (fig. A page 5).
• Fit the end of the hose to the wall
flange as shown in fig. G.
10
11
11
10
G
NOTE: When installing the air conditioner
semi-permanently, you should leave a door
slightly open (as little as 1 cm) to guarantee
correct ventilation.
6
30 cm
11,8 inches
30 cm
11,8 inches
E
Keep the air hoses as short and free of
curves as possible to avoid constrictions.
