Control panel

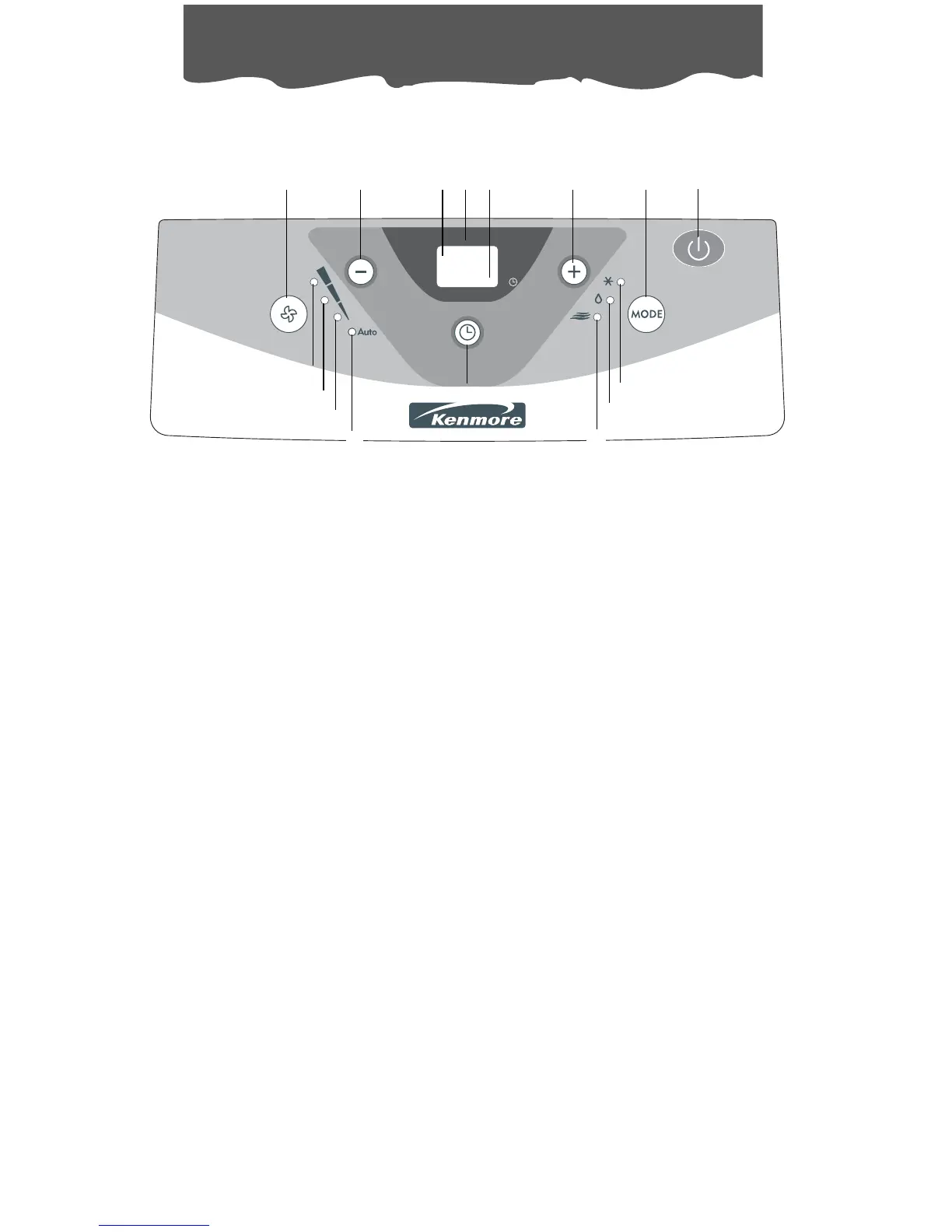

DESCRIPTION OF THE CONTROL PANEL
A ON/STAND-BY button
B MODE selection button
Air conditioning, dehumidifying, fan.
C Fan speed selection button (HIGH/MED/LOW/AUTO)
DTimer button
E Programmed operation increase temperature/time button
F Programmed operation decrease temperature/time button
G Display Displays the temperature values set and the programmed operating time
HTimer in operation indicator light
I/L/M/N Fan speed lights and AUTO light
O Fan mode light
P Dehumidifying mode light
Q Air-conditioning mode light
R Remote control receiver
