4B. DIMENSIONS/SPECIFICATIONS

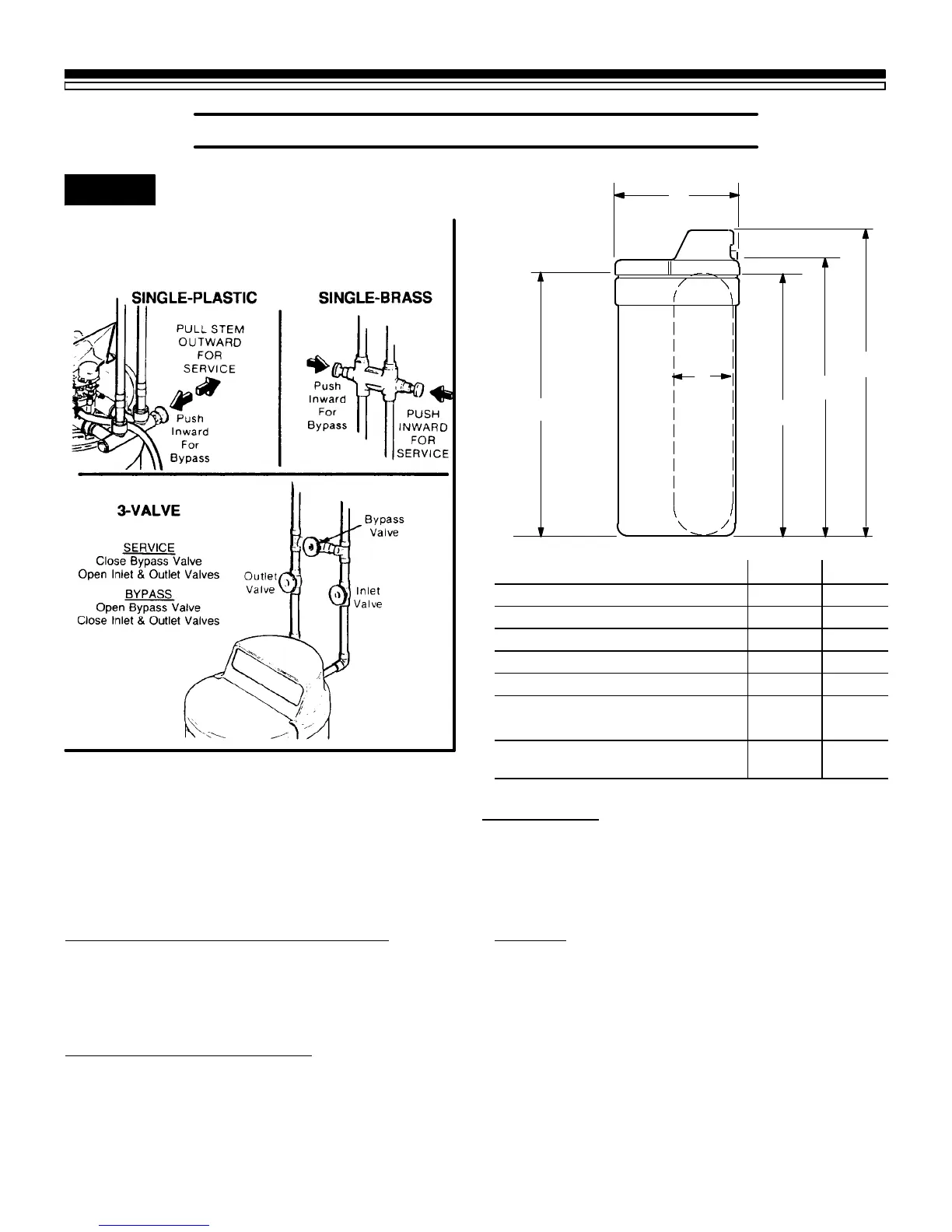

FIG. 16 BYPASS VALVES
Bypassvalve(s)shouldalwaysremaininsoft
water service position. Position in “bypass”
only if needed for softener repairs.
A
B
C
D
E
F
INCHES CM
A Salt Tank Height 40-1/4 102.2
B Resin Tank Diameter(nominal) 8 20.3
C Resin Tank Height (nominal) 40 101.6
D Inlet-Outlet Height 41-1/2 105.4
E Overall height 46 116.8
F
1
Length 19-1/2 49.5
F
2
Width 16-1/2 41.9
— Distance between inlet-outlet
center lines
3-3/8 8.6
MODEL NO. 625.348321
NOTE:
Please see therating decalfor water softener operating capacity, salt usage and service flow rate/pressureloss
performancespecifications.PerformancespecificationsarevalidatedbytheWaterQualityAssociation(WQA).
The rating decal is located on the rim, under the salt hole cover (see page 32).
WATER SUPPLY TO WATER SOFTENER
MINIMUM WATER SYSTEM FLOW (gpm) 3
MINIMUM-MAXIMUM WATER PRESSURE (psi) 20-120
MAXIMUM WATER TEMPERATURE (5F) 120
MAXIMUM WATER HARDNESS (gpg) 50
MAXMUM “CLEAR WATER” IRON (ppm) 2
SALT FOR WATER SOFTENER
TYPE OF SALT NEEDED Nugget/Pellet
ALTERNATE TYPE OF SALT Pure, evaporated, compacted
water softener salt
STORAGE CAPACITY (pounds) 200
OTHERS
TYPE OF ION EXCHANGE MATERIAL (resin) High Capacity
AMOUNT OF RESIN (cu.ft.) .52
REGENERATION (RECHARGE) CYCLE TIME (min.)
FILL (factory setting-time is adjustable) 8
BRINING/BRINE RINSE 80
BACKWASH 12
FAST RINSE 4
TOTAL REGENERATION TIME (factory setting) 118
gpm = gallons per minute psi = pounds per square inch
gpg = grains per gallon ppm = parts per million
