SERVICE TECH. INFORMATION
SECTION 5
30

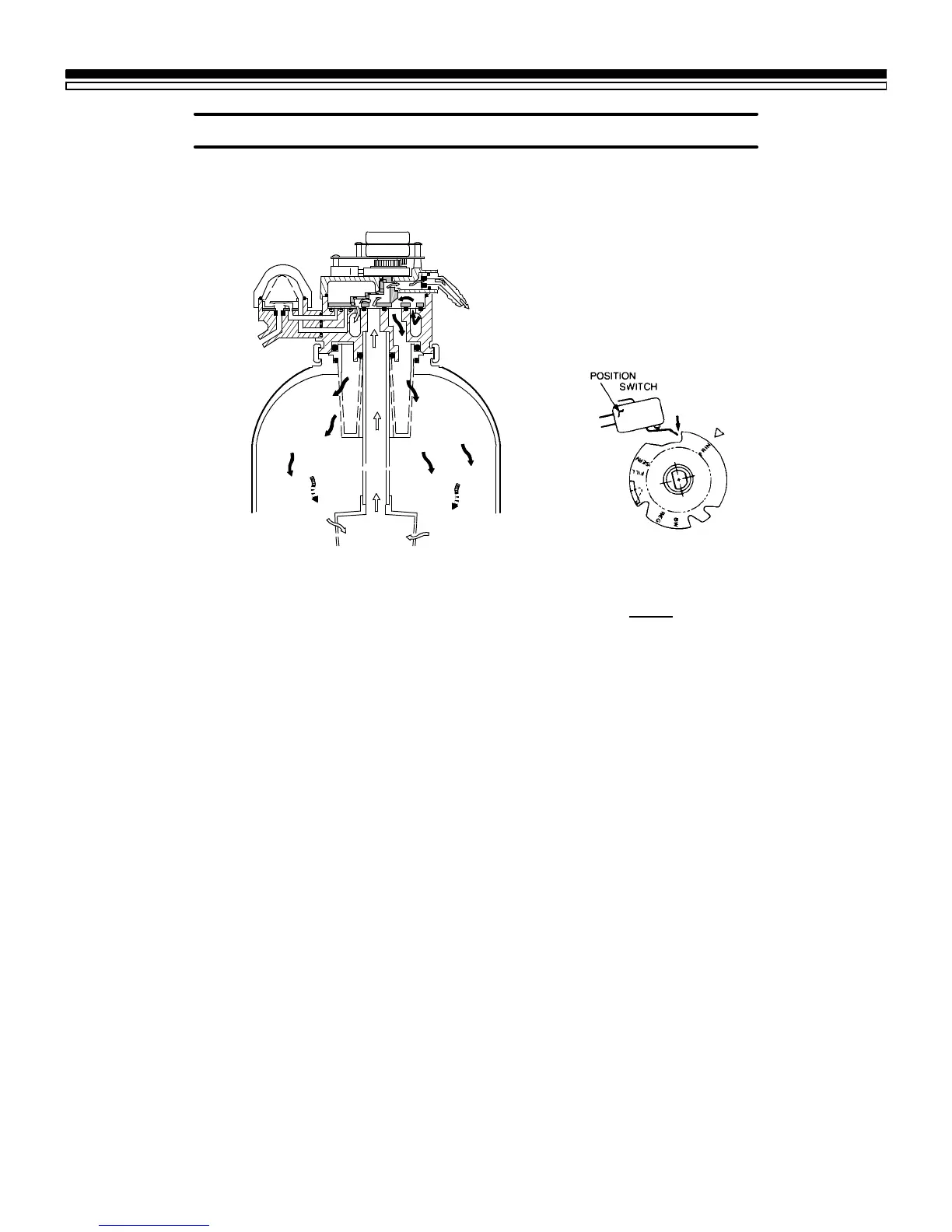

5E. WATER FLOW THROUGH THE SOFTENER VALVE
FAST RINSE CYCLE
During FAST RINSE, the rotor & disc is positioned so water flow enters the resin tank
through the top distributor, and exits through the bottom distributor, to the drain.
The solid statetimer again energizesthe motor to returnthe valve to service,andasthe
valverotates,the position switch lever dropstoopenthecircuit.Thevalve remainsposi-
tioned in service until the timer initiates the next regeneration.
soft water
to valve outlet
drain
