Kenmore 79053 - 5 Circuit Diagram; Model: 79053

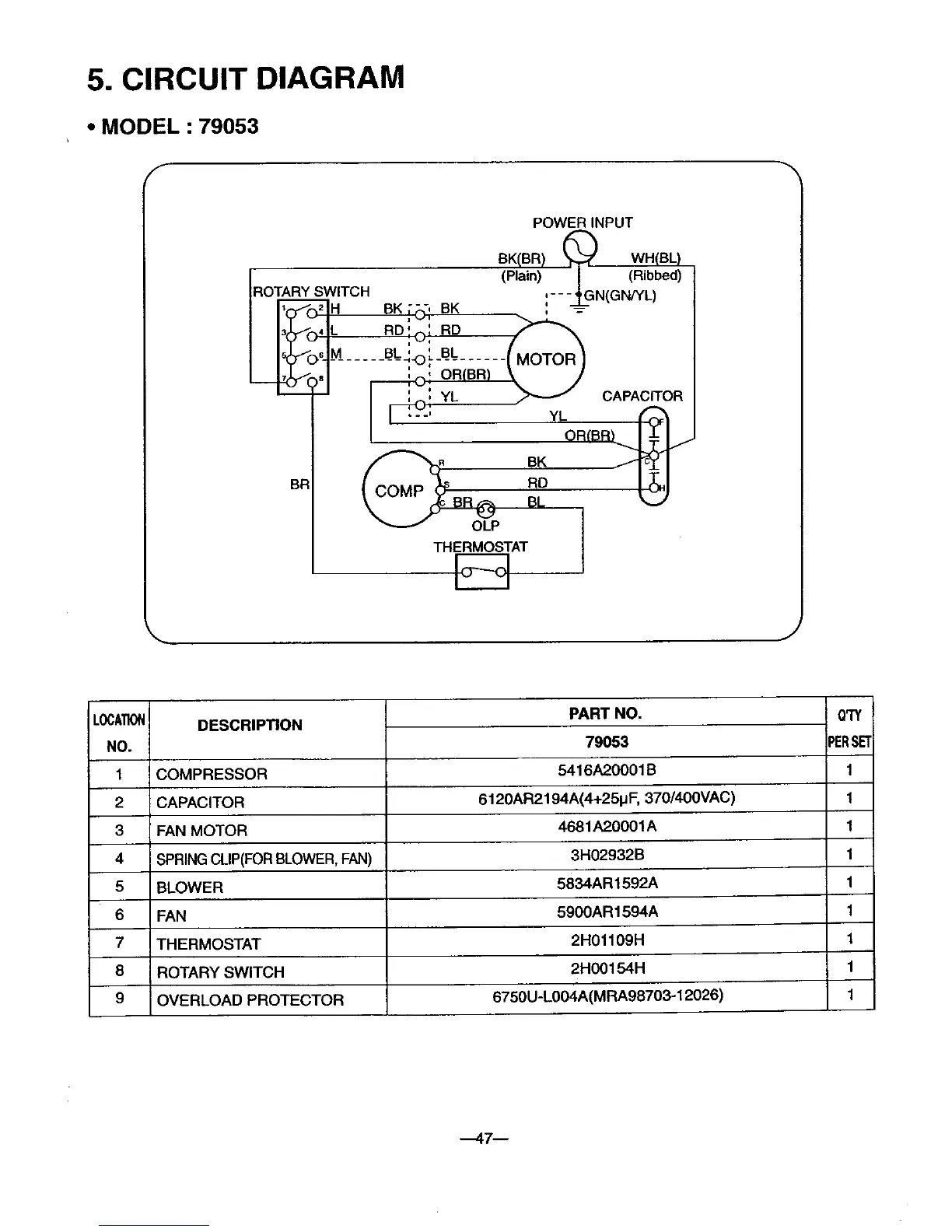

5. CIRCUIT DIAGRAM
• MODEL : 79053
F
BR
POWER INPUT
BK(BR) Q WH(BL)
(Plain) | (Ribbed)
i-- - __GN(GN/YL)
CAPACITOR
OR(I_R)
BK
RD
BL
THERMOSTAT t
DESCRIPTION
LOCATION
NO.
1
2
3
4
5
6
7
8
9
COMPRESSOR
CAPACITOR
FAN MOTOR
SPRINGCLIP(FORBLOWER,FAN)
BLOWER
FAN
THERMOSTAT
ROTARY SWITCH
OVERLOAD PROTECTOR
PART NO.
79053
5416A20001B
6120AR2194A(4+25pF, 370/400VAC)
4681A20001A
3H02932B
5834AR1592A
5900AR1594A
2H01109H
2H00154H
6750U-L004A(M RA98703-12026)
Q'TY
=ERSET
1
1
1
1
1
1
1
1
1
---47--
