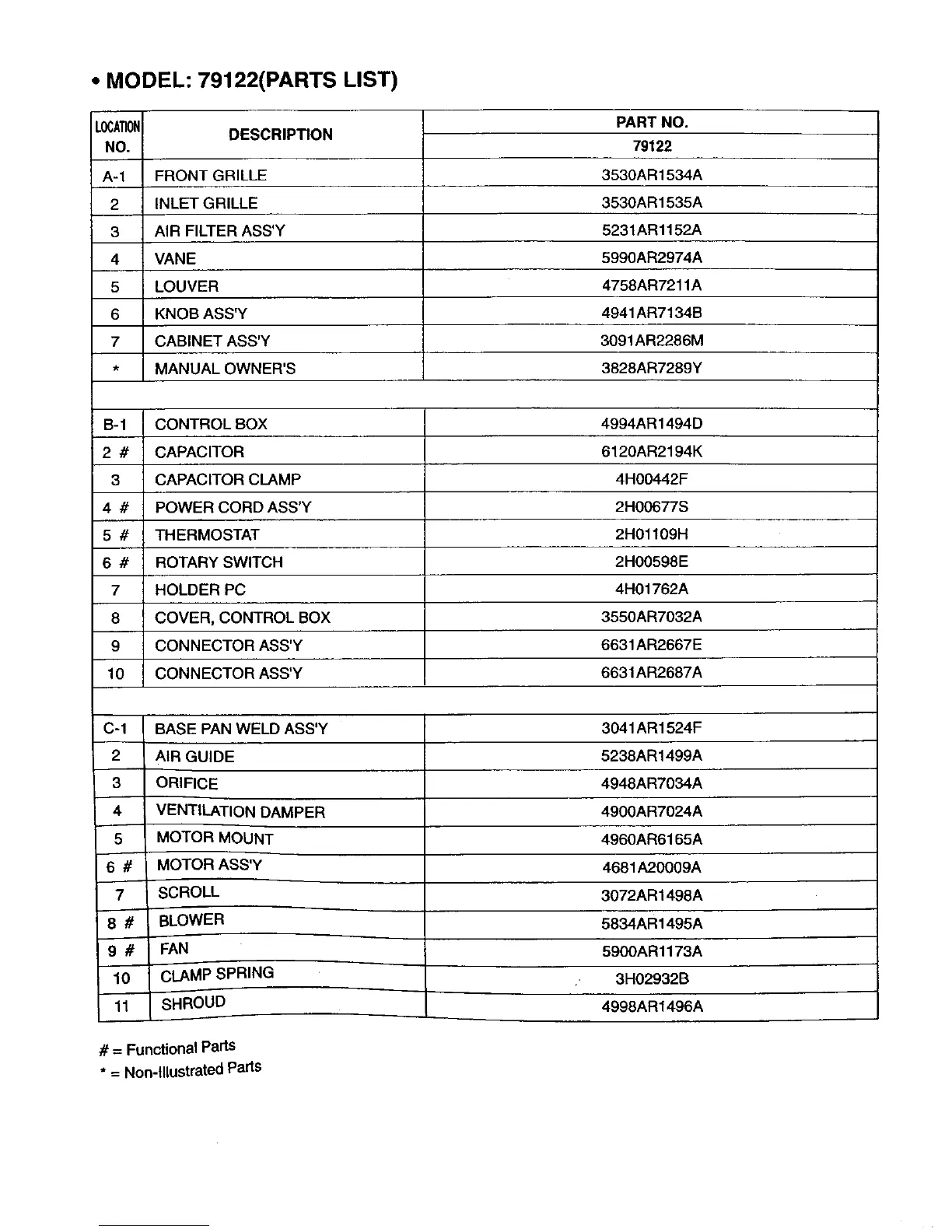

• MODEL: 79122(PARTS LIST)
LOCATION
NO.
A-1
2
3
4
5
6
7
DESCRIPTION
PART NO.
79122
3530AR1534A
3530AR1535A
5231AR1152A
5990AR2974A
4758AR7211A
4941AR7134B
3091AR2286M
3828AR7289Y
FRONT GRILLE
INLET GRILLE
AIR FILTER ASS'Y
VANE
LOUVER
KNOB ASS'Y
CABINET ASS'Y
MANUAL OWNER'S
B-1 CONTROL BOX 4994AR1494D
2 # CAPACITOR 6120AR2194K
3 CAPACITOR CLAMP 4H00442F
4 # POWER CORD ASS'Y 2H00677S
5 # THERMOSTAT 2H01109H
6 # ROTARY SWITCH 2H00598E
7 HOLDER PC 4H01762A
8 COVER, CONTROL BOX 3550AR7032A
9 CONNECTOR ASS'Y 6631AR2667E
10 CONNECTOR ASS'Y 6631AR2687A
C-1 BASE PAN WELD ASS'Y 3041AR1524F
2 AIR GUIDE 5238AR1499A
3 ORIFICE 4948AR7034A
4 VENTILATION DAMPER 4900AR7024A
5 MOTOR MOUNT 4960AR6165A
6 # MOTOR ASS'Y 4681A20009A
7 SCROLL 3072AR1498A
8 # BLOWER
9 # FAN
lo I c pSPR'NG
11ISHROUd%
58.34AR1495A
5900AR1173A
3H02932B
4998AR1496A
# = Functional Pad_
* = Non-Illustrated Parts
