Kenmore 79053 - 6 Exploded View and Service Parts List; Model: 79053

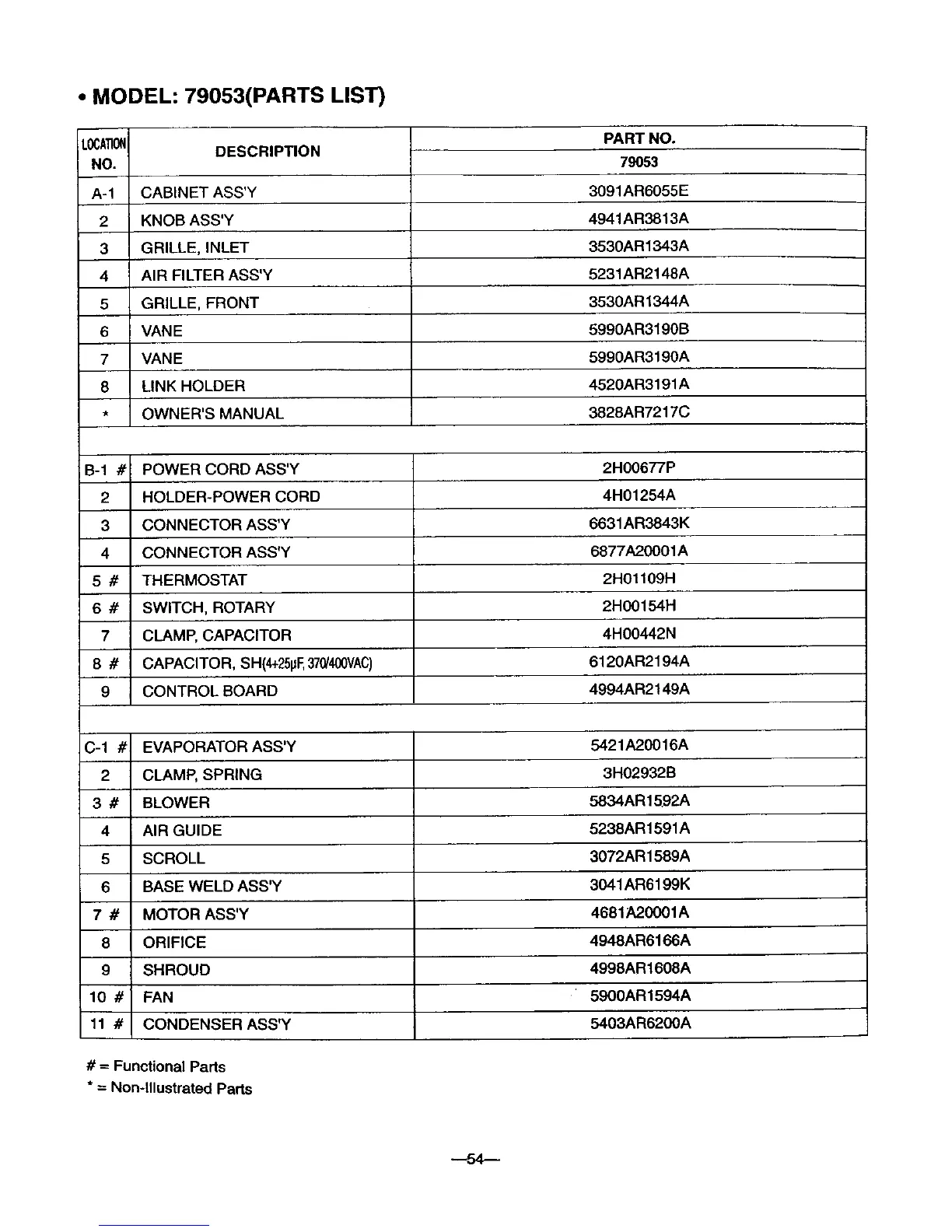

• MODEL: 79053(PARTS LIST)
LOCATION DESCRIPTION
NO.
A-1 CABINET ASS'Y
2 KNOB ASS'Y
3 GRILLE, INLET
4 AIR FILTER ASS'Y
5 GRILLE, FRONT
6 VANE
7 VANE
8 LINK HOLDER
* OWNER'S MANUAL
B-1 #
2
3
4
5#
6#
7
8#
9
PART NO.
79053
3091AR6055E
4941AR3813A
3530AR1343A
5231AR2148A
3530AR 1344A
5990AR3190B
5990AR3190A
4520AR3191A
3828AR7217C
POWER CORD ASS'Y
HOLDER-POWER CORD
CONNECTOR ASS'Y
CONNECTOR ASS'Y
THERMOSTAT
SWITCH, ROTARY
CLAMP, CAPACITOR
CAPACITOR, SH(4+25pF,370/400VA0)
CONTROL BOARD
2H00677P
4H01254A
6631AR3843K
6877A20001A
2H01109H
2H00154H
4H00442N
6120AR2194A
4994AR2149A
C-1 # EVAPORATOR ASS'Y
2 CLAMP, SPRING
3 # BLOWER
4 AIR GUIDE
5 SCROLL
6 BASE WELD ASS'Y
7 # MOTOR ASS'Y
8 ORIFICE
9 SHROUD
10 # FAN
11 # CONDENSER ASS'Y
5421A20016A
3H02932B
5834AR15.92A
5238AR1591A
3072AR1589A
3041AR6199K
4681A20001A
4948AR6166A
4998AR1608A
5900AR1594A
5403AR6200A
# = Functional Parts
* = Non-Illustrated Parts
