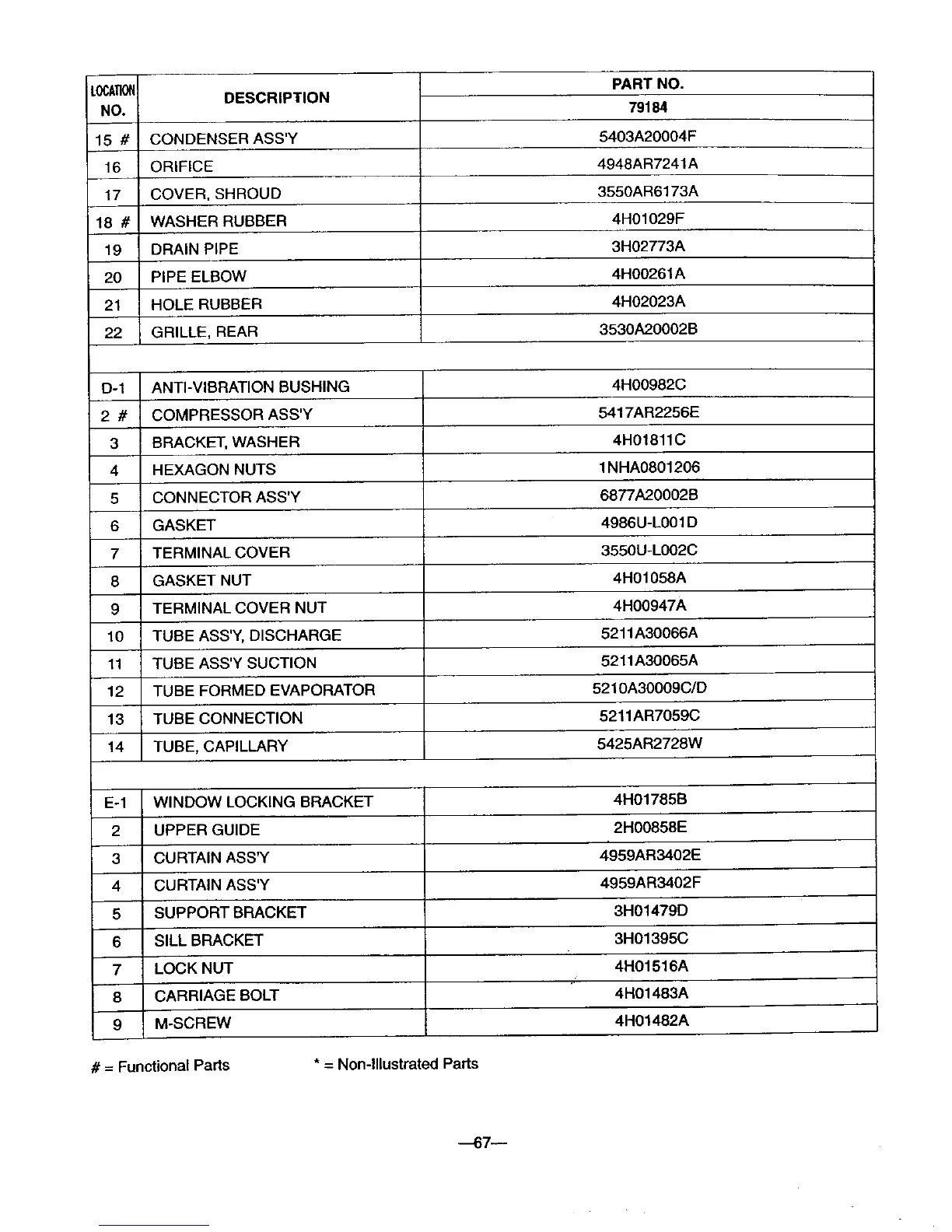

Kenmore 79053 - Page 67

L0CAI10N
NO.
15#
16
17
18 #
19
20
21
22
DESCRIPTION
PART NO.
79184
5403A20004F
4948AR7241A
3550AR6173A
4H01029F
3H02773A
4H00261A
4H02023A
3530A20002B
CONDENSER ASS'Y
ORIFICE
COVER, SHROUD
WASHER RUBBER
DRAIN PIPE
PIPE ELBOW
HOLE RUBBER
GRILLE, REAR
D-1 ANTI-VIBRATION BUSHING 4H00982C
2 # COMPRESSOR ASS'Y 5417AR2256E
3 BRACKET, WASHER 4H01811C
4 HEXAGON NUTS 1NHA0801206
5 CONNECTOR ASS'Y 6877A2.0002B
6 GASKET 4986U-L001D
7 TERMINAL COVER 3550U-L002C
8 GASKET NUT 4H01058A
9 TERMINAL COVER NUT 4H00947A
10 TUBE ASS'Y, DISCHARGE 5211A30066A
11 TUBE ASS'Y SUCTION 5211A30065A
12 TUBE FORMED EVAPORATOR 5210A30009C/D
13 TUBE CONNECTION 5211AR7059C
14 TUBE, CAPILLARY 5425AR2728W
E-1 WINDOW LOCKING BRACKET 4H01785B
2 UPPER GUIDE 2H00858E
3 CURTAIN ASS'Y 4959AR3402E
4 CURTAIN ASS'Y 4959AR3402F
5 SUPPORT BRACKET 3H01479D
6 SILL BRACKET 3H01395C
7 LOCK NUT 4H01516A
8 CARRIAGE BOLT 4H01483A
9 M-SCREW 4H01482A
# = Functional Parts
* = Non-Illustrated Parts
---67--
