3. DISASSEMBLY
- 6 -

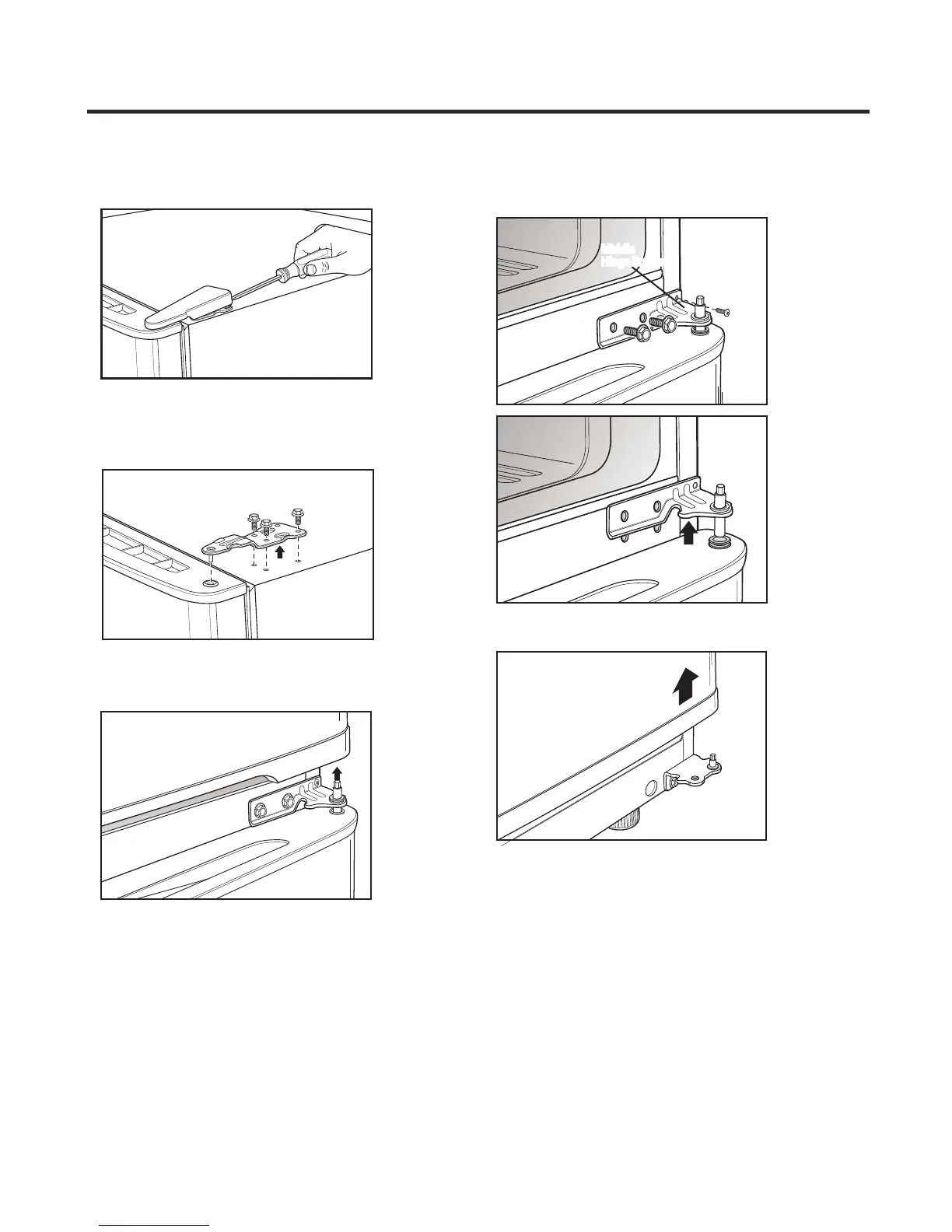

3-1 REMOVE FREEZER DOOR
• Gently pry o the Top Hinge Cover with a at head
screwdriver and remove (see Fig 1).
• Using 10 mm or 13/32-inch socket wrench, remove
the 3 bolts and lift o the Top Hinge (see Fig. 2).
Set parts aside.
• Lift freezer door slightly and remove it.
(Fig. 3). Set aside.
Fig. 1
3-2 REMOVE REFRIGERATOR DOOR
• Loosen and remove the 2 bolts and the phillips head
screw to remove the Middle Hinge Bracket from
refrigerator housing (Fig. 4 and 5). Set parts aside.
• Lift up door slightly and remove it.
To replace doors, begin with refrigerator door and then
follow with freezer door.
Fig. 2
Fig. 5
Fig. 6
Fig. 4
Middle
Hinge Bracket
Middle
Hinge Bracket
Fig. 3
