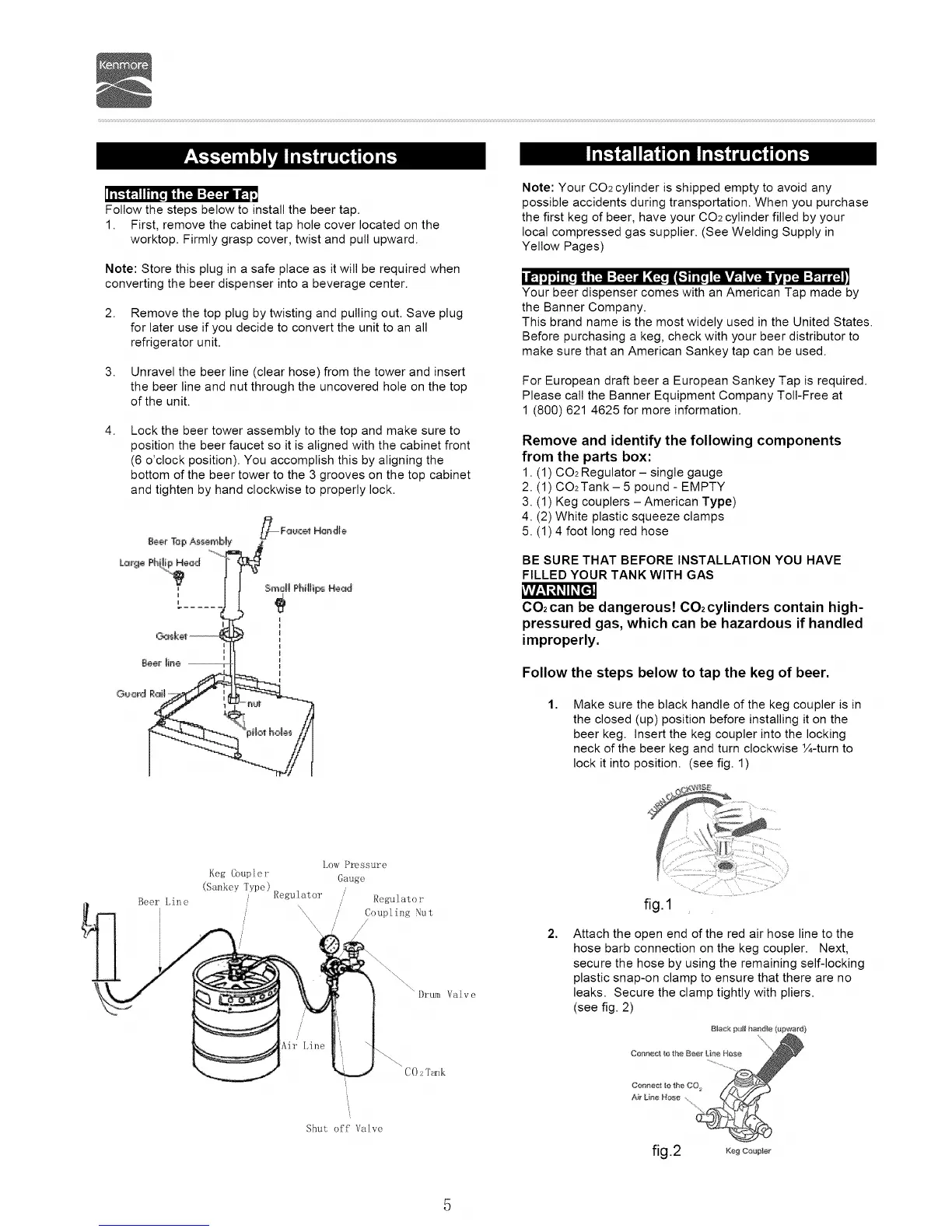

Follow the steps below to install the beer tap.
1. First, remove the cabinet tap hole cover located on the
worktop. Firmly grasp cover, twist and pull upward.
Note: Store this plug in a safe place as it will be required when
converting the beer dispenser into a beverage center.
2. Remove the top plug by twisting and pulling out. Save plug
for later use if you decide to convert the unit to an all
refrigerator u nit.
3. Unravel the beer line (clear hose) from the tower and insert
the beer line and nut through the uncovered hole on the top
of the unit.
4.
Lock the beer tower assembly to the top and make sure to
position the beer faucet so it is aligned with the cabinet front
(6 o'clock position). You accomplish this by aligning the
bottom of the beer tower to the 3 grooves on the top cabinet
and tighten by hand clockwise to properly lock.
Note: Your C02 cylinder is shipped empty to avoid any
possible accidents during transportation. When you purchase
the first keg of beer, have your C02 cylinder filled by your
local compressed gas supplier. (See Welding Supply in
Yellow Pages)
i I_.1Ij*] II1. I II[:1 :I:[:.] I _[:.[*Ill,."lJII1. I ['_llj_ lvt:ll I_*I_ 1_1d1_ t]
Your beer dispenser comes with an American Tap made by
the Banner Company.
This brand name is the most widely used in the United States.
Before purchasing a keg, check with your beer distributor to
make sure that an American Sankey tap can be used.
For European draft beer a European Sankey Tap is required.
Please call the Banner Equipment Company Toll-Free at
1 (800) 621 4625 for more information.
Remove and identify the following components
from the parts box:
1. (1) CO2 Regulator- single gauge
2. (1) CO2Tank- 5 pound - EMPTY
3. (1) Keg couplers- American Type)
4. (2) White plastic squeeze clamps
5. (1) 4 foot long red hose
BE SURE THAT BEFORE INSTALLATION YOU HAVE
FILLED YOUR TANK WITH GAS
CO2can be dangerous! CO2cylinders contain high-
pressured gas, which can be hazardous if handled
improperly.
Follow the steps below to tap the keg of beer.
1,
Make sure the black handle of the keg coupler is in
the closed (up) position before installing it on the
beer keg. Insert the keg coupler into the locking
neck of the beer keg and turn clockwise %-turn to
lock it into position. (see fig. 1)
Beer Line
Low P_ssure
Gauge
Regulator / Regulator
\\ //' Coupling Nut
/
/
Val v e
2,
fig. 1
Attach the open end of the red air hose line to the
hose barb connection on the keg coupler. Next,
secure the hose by using the remaining self-locking
plastic snap-on clamp to ensure that there are no
leaks. Secure the clamp tightly with pliers.
(see fig. 2)
Shut; off' Valve
C0;Tank
fig.2 Ko_co,_to,-
