ASSEMBLY
16 • 466724112

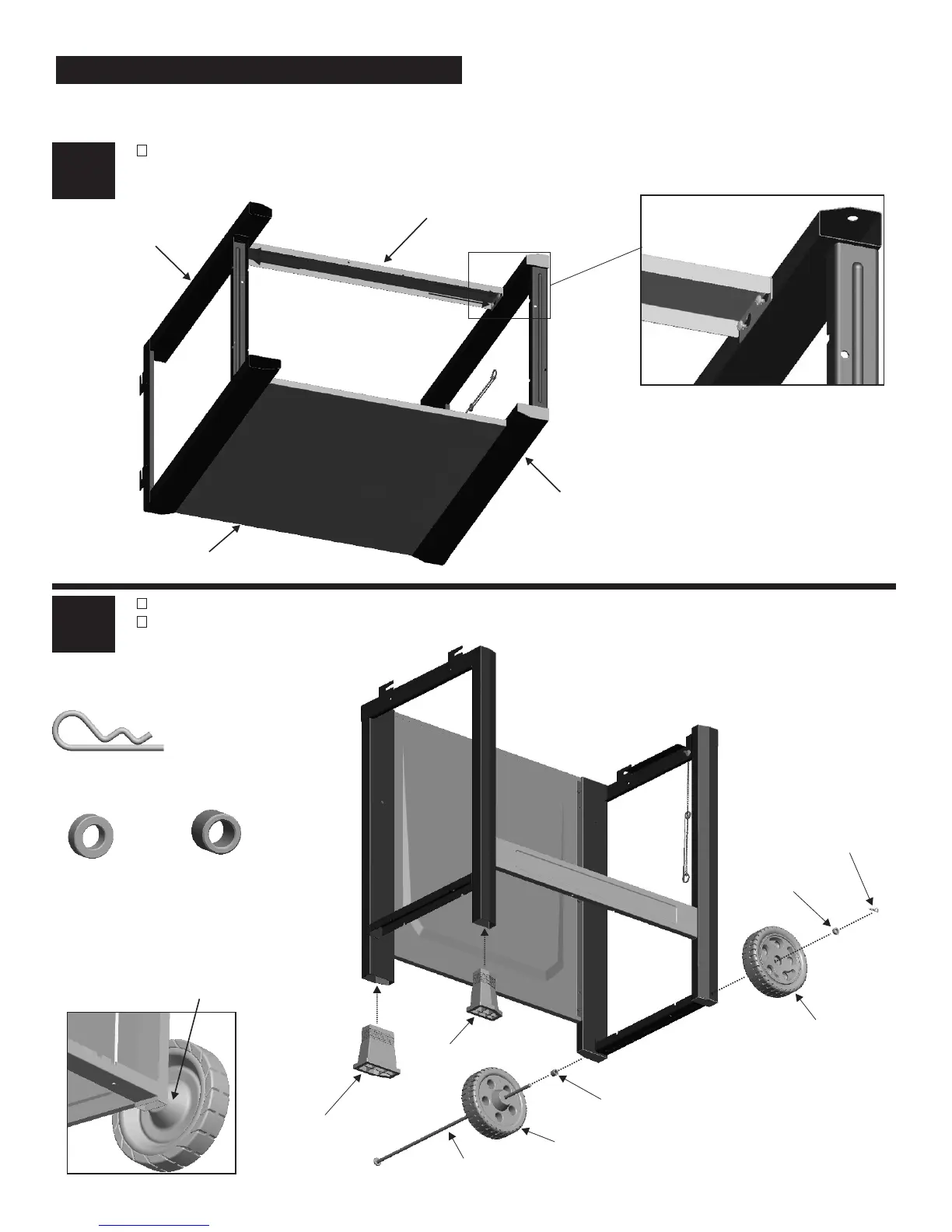

Place rear rail between cart frames. Hook the key hole slots to the preassembled #10-24x1/2" machine
screws. Tighten the screws.
1
2
Rear Rail
Front Panel
Right Leg Assembly
Left Leg Assembly
Insert axle rod through wheel, front wheel bushing, legs other Attach with (1) axle spacer and hitch pin.
Insert leg extenders into right legs. Press leg extenders into place with body weight.
and wheel.
Axle Rod
"Cone" side of wheel against leg
1” Hitch Pin
Qty. 1
Axle
Spacer
Qty: 1
Wheel
Wheel
Leg Extender, Front
Leg Extender, Rear
Front
Wheel Bushing
Qty: 1
Front Wheel Bushing
NOTE: DO NOT over tighten screws and washers that come into contact with porcelain coated surfaces. Over tightening
may cause the porcelain coating to crack and break, resulting in exposed metal that will be prone to rust.
Axle Spacer
Hitch Pin
