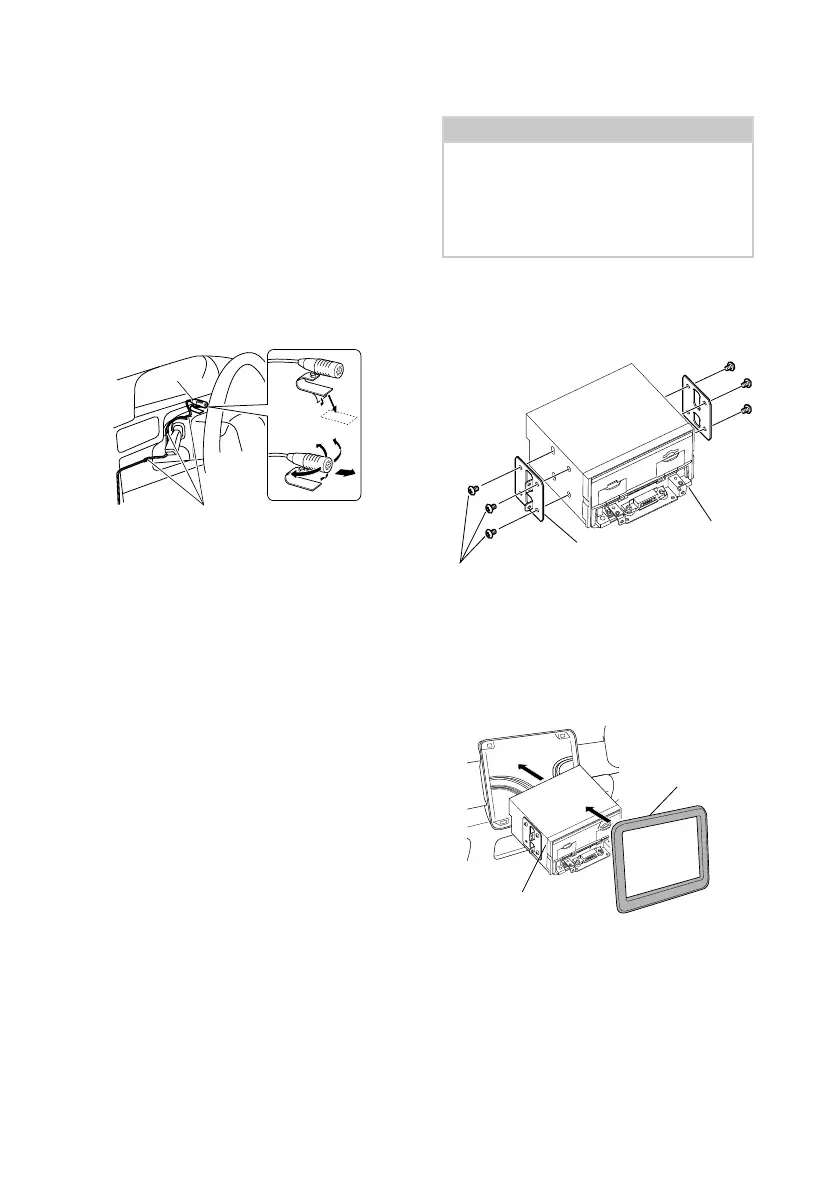

Connection/Installation
28
Ñ Microphone unit
1) Check the installation position of the
microphone (accessory 3).
2) Clean the installation surface.
3) Remove the separator of the microphone
(accessory 3), and stick the microphone to
the place shown below.
4) Wire the microphone cable up to the unit
with it secured at several positions using tape
or other desired method.
5) Adjust the direction of the microphone
(accessory 3) to the driver.
3
Fix a cable with a commercial item of tape.
Ñ Installing the main unit
NOTE
Determine the slider position before installing the
main unit. (P.26) The slider position cannot be
changed after installing to the vehicle.
Make sure that the unit is installed securely in
place. If the unit is unstable, it may malfunction
(eg, the sound may skip).
1
Remove parts that interfere with
installing such as a panel on the vehicle.
2
Install the car bracket to the main unit.
Car bracket
4 or 5
Main unit
3
Connect the wiring harness wires and
peripheral equipment.
4
Install the main unit to the vehicle.
5
Reinstall the removed parts such as a
panel on the vehicle.
Panel on the
vehicle
Main unit
