Kenwood DMX8021DABS Quick Start Guide

Connection/Installation
15English

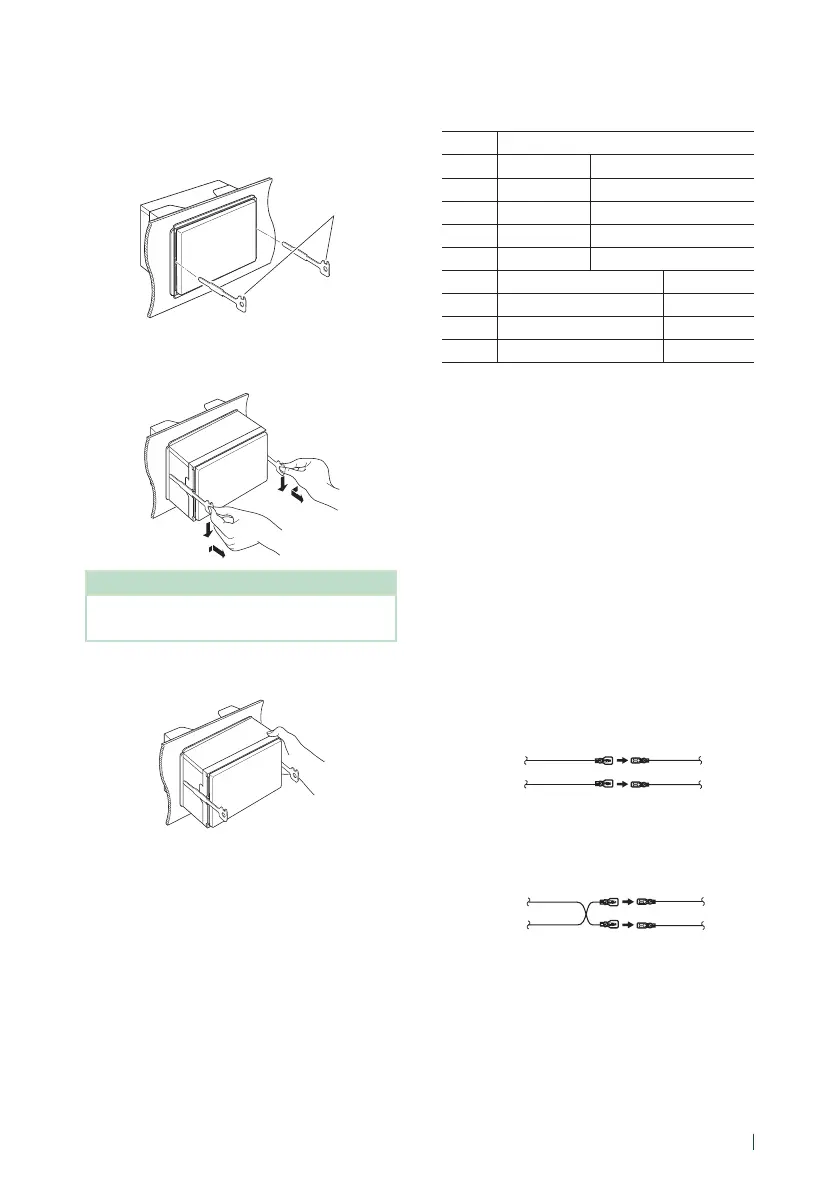

Ñ Removing the unit
1) Remove the trim plate. (P.14)
2) Insert the two extraction key (accessory 5)
deeply into the slots on each side, as shown.
5
3) Lower the extraction key toward the bottom,
and pull out the unit halfway while pressing
towards the inside.
NOTE
• Be careful to avoid injury from the catch pins on
the extraction key.
4) Pull the unit all the way out with your hands,
being careful not to drop it.
Ñ Wiring harness (Accessory 1)
connector function guide
Pin Color and function
A-4 Yellow Battery
A-5 Blue/White
[2]
Power Control
A-6 Orange/White Dimmer
A-7 Red Ignition (ACC)
A-8 Black Earth (Ground) Connection
B-1/B-2 Purple (+) / Purple/Black (–) Rear Right
B-3/B-4 Gray (+) / Gray/Black (–) Front Right
B-5/B-6 White (+) / White/Black (–) Front Left
B-7/B-8 Green (+) / Green/Black (–) Rear Left
For details, see Connecting wires to terminals
(P.16).
*Speaker Impedance: 4-8 Ω
[1] [2]: Blue/White wire is provided two wires, [1] and [2].
Blue/White wire total output ([1] + [2]):
12 V = 350 mA
#WARNING for Connecting the ISO
Connector
The pin arrangement for the ISO connectors depends
on the type of vehicle you drive. Make sure to make
the proper connections to prevent damage to the
unit. The default connection for the wiring harness is
described in (1) below. If the ISO connector pins are set
as described in (2), make the connection as illustrated.
Please be sure to reconnect the cable as shown (2)
below to install this unit to the Volkswagen vehicles etc.
(1): Default setting
The red (A-7 pin) of the vehicle’s ISO connector is linked
with the ignition, and the yellow (A-4 pin) is connected
to the constant power supply.
Red (Ignition cable)
Yellow (Battery cable) Yellow (A-4 pin)
Red (A-7 pin)
Unit Vehicle
(2)
The red (A-7 pin) of the vehicle’s ISO connector is
connected to the constant power supply, and the
yellow (A-4 pin) is linked to the ignition.
Red (Ignition cable)
Yellow (Battery cable) Yellow (A-4 pin)
Red (A-7 pin)
Unit Vehicle
