Kenwood DMX958XR Quick Start Guide

Connection/Installation
29English

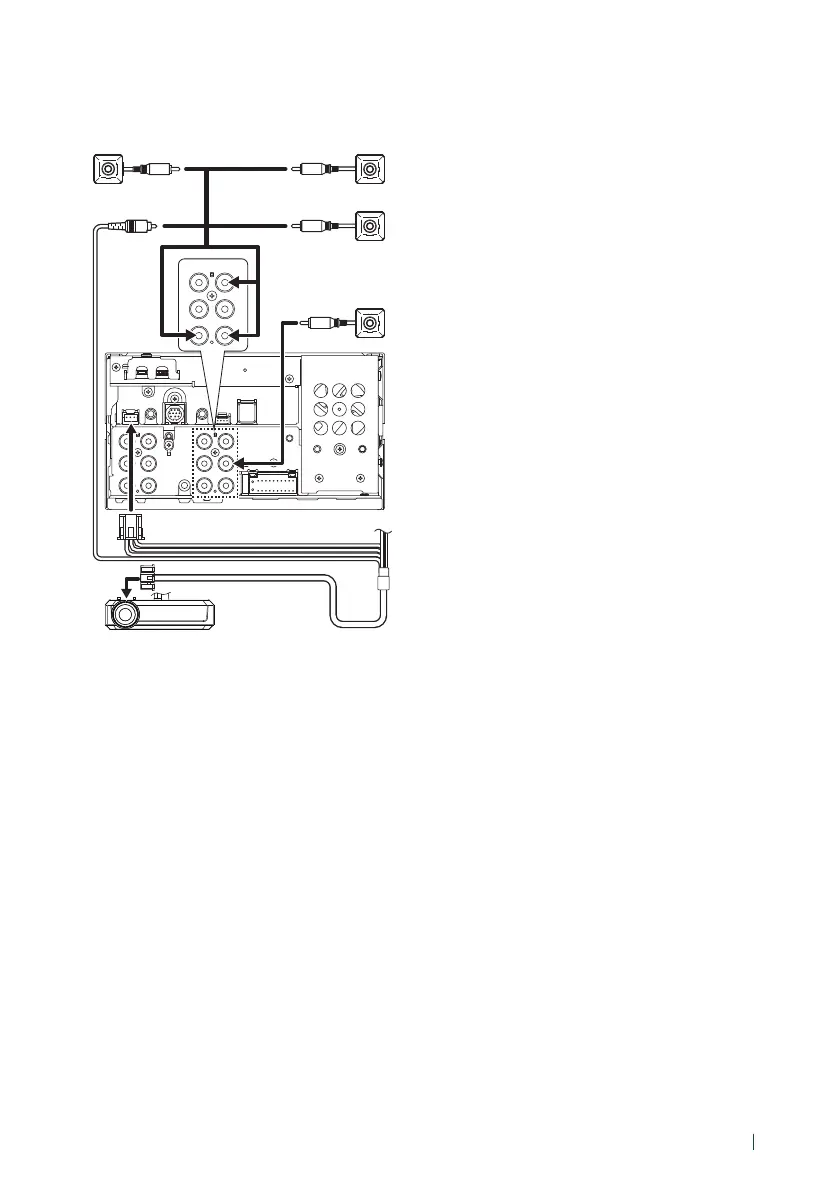

Ñ Connecting the camera
3-CAM
R-CAM
F-CAMV-IN
V-OUT
NC
[3]
[6]
[5]
Front view camera
[2] [4]
Dashboard camera interface
DRV-N520
[1]
Left side view
camera
[2]
Right side view
camera
[2]
Rear view
camera
[2] [4]
[1]
Optional accessory
[2]
Sold separately
[3]
Up to 3 cameras of Dashboard camera, Front
view camera, Left side view camera and Right
side view camera can be connected. (P.30).
[4]
CMOS-3xx series (optional accessory) or
commercially available camera.
[5]
For HD video, connect an HD camera to Rear
view camera input terminal. (DMX958XR only)
[6]
For HD video, connect an HD camera to
Front view camera/Dashboard camera input
terminal. (DMX958XR only)
