4
|
DDX8019/DDX8039

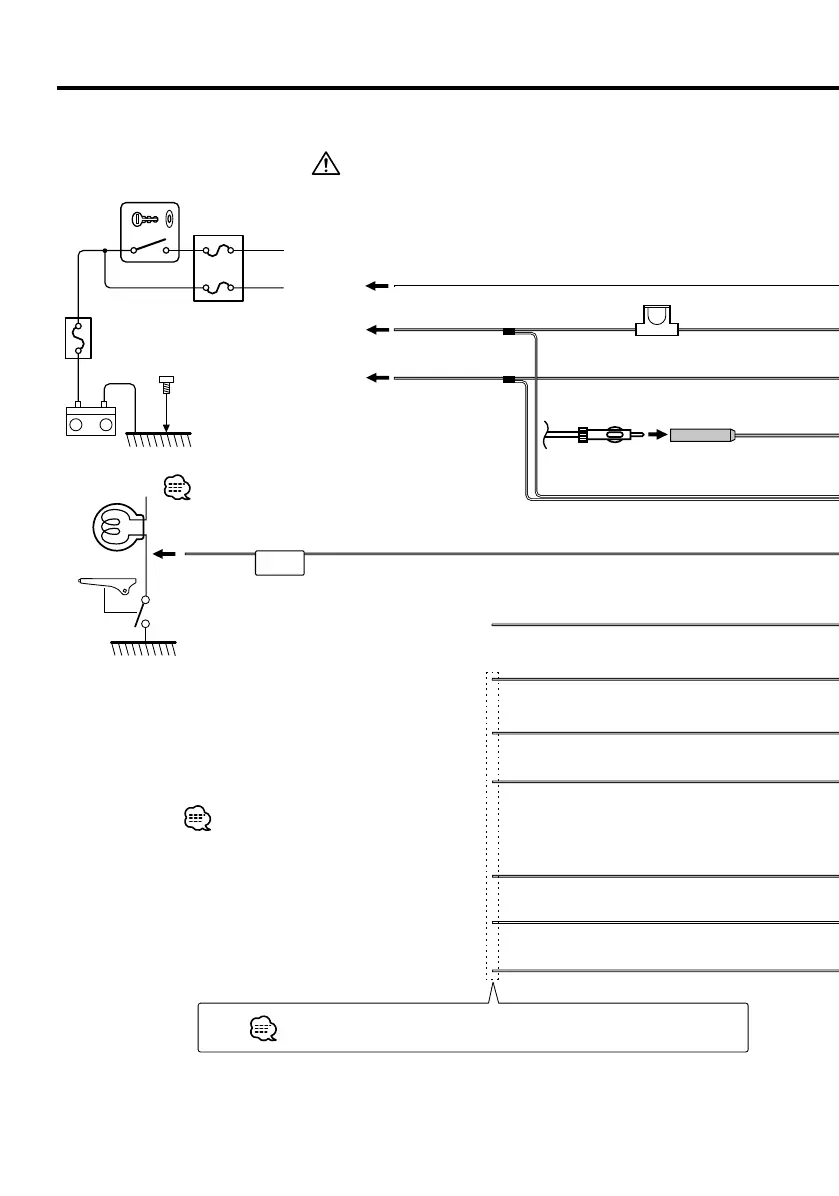

Connection
B
C
PRK SW
–
+
B
C
A
A
If you connect the ignition wire (red) and the battery
wire (yellow) to the car chassis (ground), you may
cause a short circuit, that in turn may start a fire. Always
connect those wires to the power source running
through the fuse box.
Antenna Cord
For the sake of safety, be sure to connect the parking sensor.
Parking sensor wire (Light Green)
Connect to the vehicle's parking brake
detection switch harness using the
supplied relay connector.
Battery wire (Yellow)
Ground wire (Black) -
(To car chassis)
FUSE ( 5A )
Ignition wire (Red)
Steering remote control input (Light Blue/Yellow)
To steering remote
If no connections are made, do not let the cable come out from the tab.
Connect to the terminal that is grounded when either
the telephone rings or during conversation.
Mute wire (Brown)
Depending on what antenna you are using,
connect either to the control terminal of the motor antenna, or to the
power terminal for the booster amplifier of the film-type antenna.
Motor antenna control wire (Blue)
When using the optional power amplifier,
connect to its power control terminal.
Power control wire (Blue/White)
To "EXT.AMP.CONT." terminal of the amplifier
having the external amp control function.
External amplifier control wire (Pink/Black)
To car light control switch
Dimmer control wire (Orange/White)
Reveres sensor wire (Purple/White)
To vehicle's reverse lamp harness
Ignition key
switch
ACC
Car fuse box
(Main fuse)
Battery
Car fuse box
To connect the Kenwood navigation system,
consult your navigation manual.
