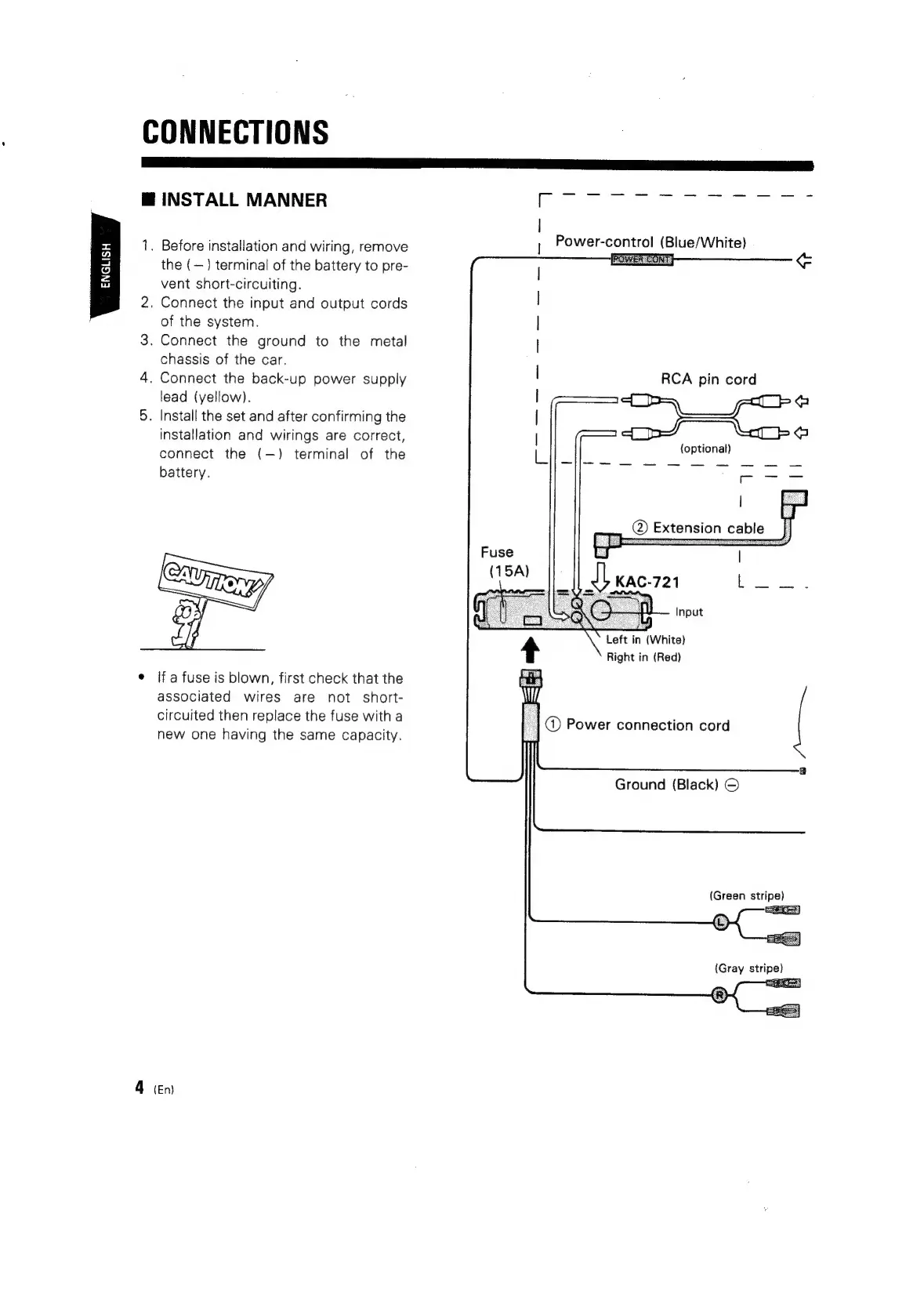

CONNECTIONS
@
INSTALL
MANNER
GSS
a
a
ek
ae
1.
Before
installation
and
wiring,
remove
the
(—)
terminal
of
the
battery
to
pre-
vent
short-circuiting.
2.
Connect
the
input
and
output
cords
of
the
system.
3.
Connect
the
ground
to
the
metal
chassis
of
the
car.
4.
Connect
the
back-up
power
supply
lead
(yellow).
5.
Install
the
set
and
after
confirming
the
installation
and
wirings
are
correct,
connect
the
(—)
terminal
of
the
battery.
RCA
pin
cord
Left
in
(White)
Right
in
(Red)
e
{fa
fuse
is
blown,
first
check
that
the
associated
wires
are
not
short-
circuited
then
replace
the
fuse
with
a
;
@)
Power
connection
cord
new
one
having
the
same
capacity.
Ground
(Black)
©
(Green
stripe)
4
en)
