INSTALLATION/CONNECTION

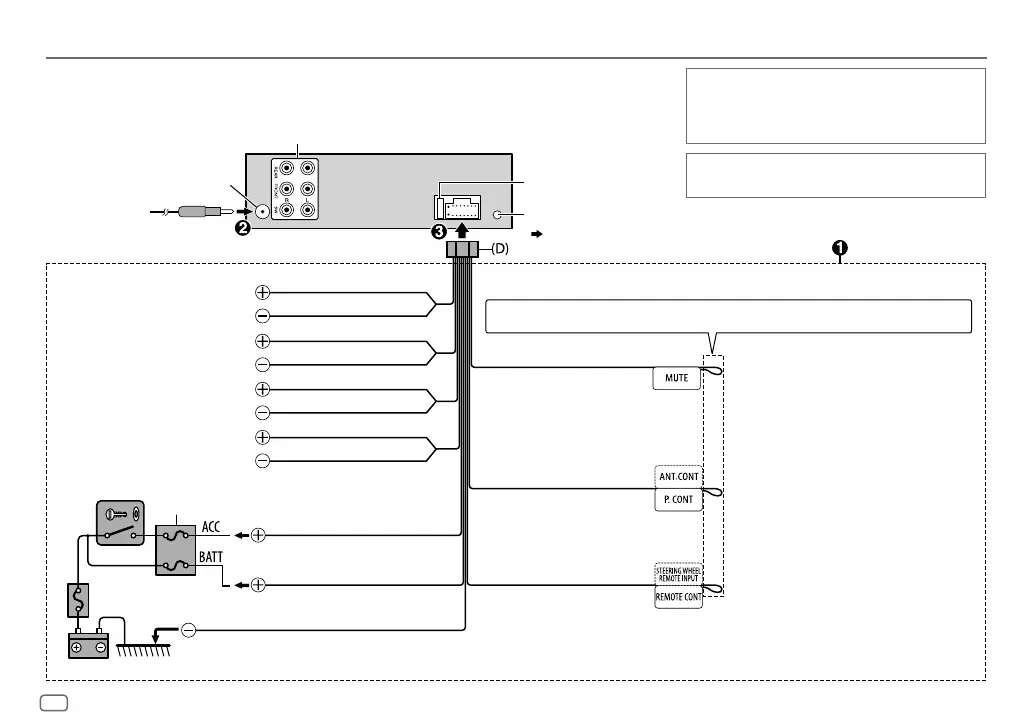

Wiring connection
Fuse (10A)
Microphone input jack
( 12)
Rear/front/subwoofer output
Antenna terminal
Car fuse box
Car fuse box
Battery
Ignition switch
Blue/White
(Power control wire/
Antenna control wire)
Light blue/yellow
(Steering remote control wire)
Red (Ignition wire)
Yellow (Battery wire)
Black (Ground wire)
To the metallic body or chassis of the car
To the power control terminal when using the
optional power amplifier or to the antenna
control terminal in the vehicle
Brown
(Mute control wire)
White
Gray
Green
Purple
White/Black
Gray/Black
Green/Black
Purple/Black
To connect the Kenwood navigation system, refer
your navigation manual
To front speaker (left)
To rear speaker (left)
To front speaker (right)
To rear speaker (right)
If no connections are made, do not let the wire come out from the tab.
To the steering wheel remote control adapter
When connecting to an external amplifier, connect its
ground wire to the car’s chassis to avoid damaging the unit.
IMPORTANT :
We recommend installing the unit with a
commercially available custom wiring harness specific for
your car and leave this job to professionals for your safety.
Consult your car audio dealer.
ENGLISH
