FM indoor antenna (1)
(T90-0877-05)
AM loop antenna (1)
(T90-0893-05)
Remote control unit (1)
(See the below table)
Batteries (R6/AA) (2)
AC Plug Adaptor (1)
(E03-0115-05)
Use to adapt the plug on the
power cord to the shape of the
wall outlet.
(Accessory only for regions where
use is necessary.)
RC-R0824
RC-R0626
RC-R0625
KRF-V4070D/V5070D/V6070D/VR-705/707/715/716
2

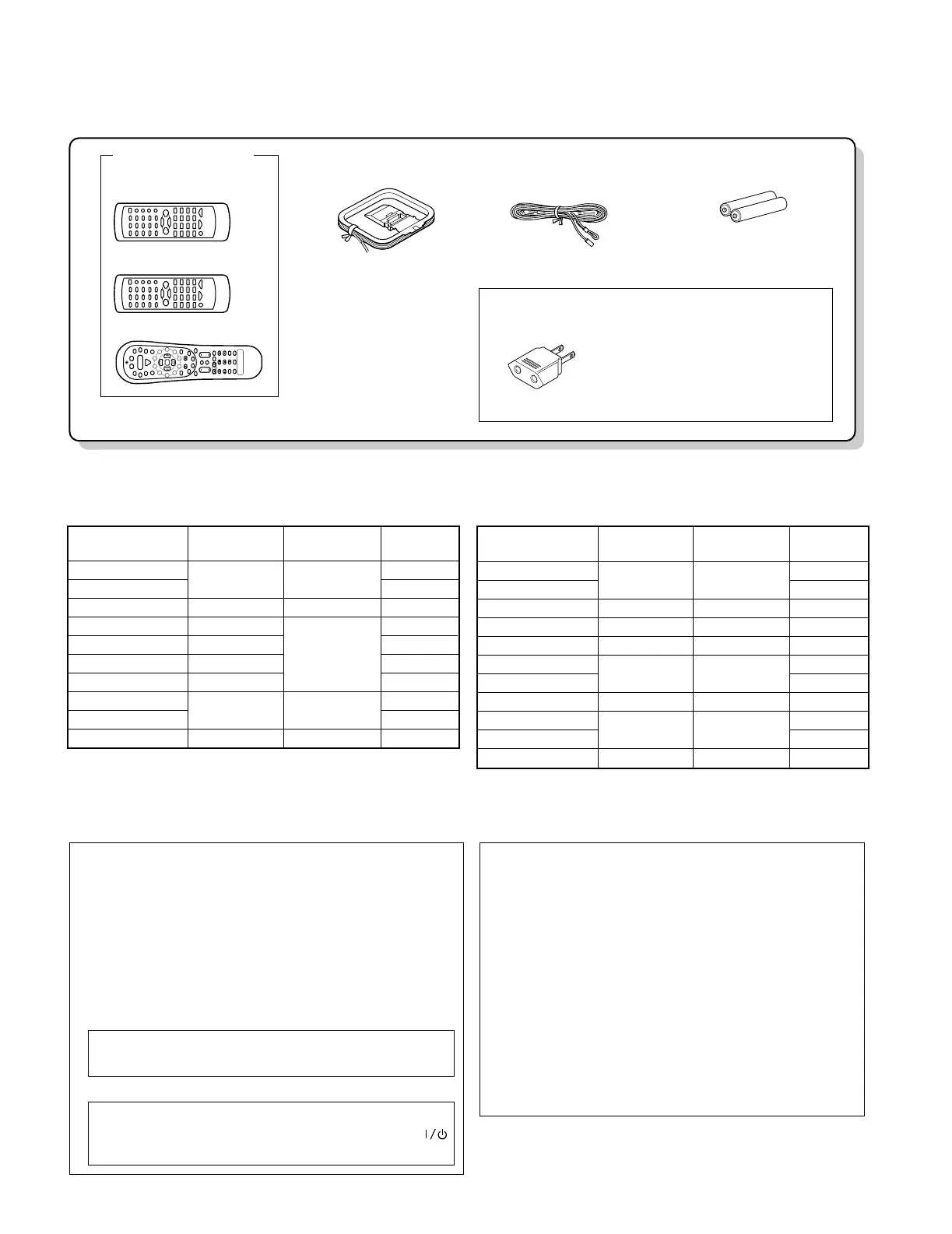

ACCESSORIES / CAUTIONS
Accessories
Resetting the Microcomputer
The microcomputer may malfunction (unit cannot be operated, or
shows an erroneous display) if the power cord is unplugged while the
power is ON, or due to some other external factor. If this happens,
execute the following procedure to reset the microcomputer and
return the unit to its normal operating condition.
• Please note that resetting the microcomputer will clear the contents
of the memory and return the unit to the state it was in when it left
the factory
Unplug the power cord from the wall outlet, then
plug it back in while holding down the POWER key.
For the U.S.A. and Canada
With the power cord plugged in, turn the POWER key
OFF. Then, while holding down the ON/STANDBY
key, press POWER.
For other countries
Memory back up function
Please note that the following items will be deleted from the unit's
memory if the power cord is disconnected from the AC outlet for
approximately 3 days.
• Power mode. • Distance setting.
• Input selector settings. • Input mode setting.
• Picture output. • Midnight mode setting.
• Speaker ON/OFF. • PRO LOGIC II mode setting.
• Volume level. • Broadcast band.
• BASS, TREBLE, INPUT level. • Frequency setting.
• Dimmer level. • Preset stations.
• MD/TAPE settings. • Tuning mode.
• Listen mode setting. • CINEMA EQ ON/OFF.
• Speaker settings. • LOUDNESS ON/OFF.
• SW RE-MIX ON/OFF.
Cautions
MODEL PARTS #
REMOTE DESTI-
CONTROL # NATION
KRF-V4070D
A70-1614-05 RC-R0628
E1
KRF-V4070D-S E2
KRF-V4070D-S A70-1612-05 RC-R0626 X2
KRF-V5070D A70-1613-05 E3
KRF-V5070D A70-1611-05
RC-R0625
M3
KRF-V5070D-S A70-1613-05 E4
KRF-V5070D-S A70-1611-05 M4X4
KRF-V5570D
A60-1612-05 RC-R0626
X5
KRF-V5570D-S M6X6
KRF-V5570D-S A60-1614-05 RC-R0628 E6
MODEL PARTS #
REMOTE DESTI-
CONTROL # NATION
KRF-V6070D
A70-1617-05 RC-R0824
M7
KRF-V6070D X7
KRF-V6070D A70-1618-05 RC-R0825 E7
KRF-V6070D-S A70-1617-05 RC-R0824 M8
KRF-V6070D-S A70-1618-05 RC-R0825 E8
VR-705
A60-1612-05 RC-R0626
K1P1
VR-705-S K6P6
VR-707 A70-1617-05 RC-R0824 K2P2
VR-715
A70-1611-05
K3P3
VR-715-S
RC-R0625
K5P5
VR-716 A70-1617-05 RC-R0824 K4P4
