Setting up the system
Digital connections

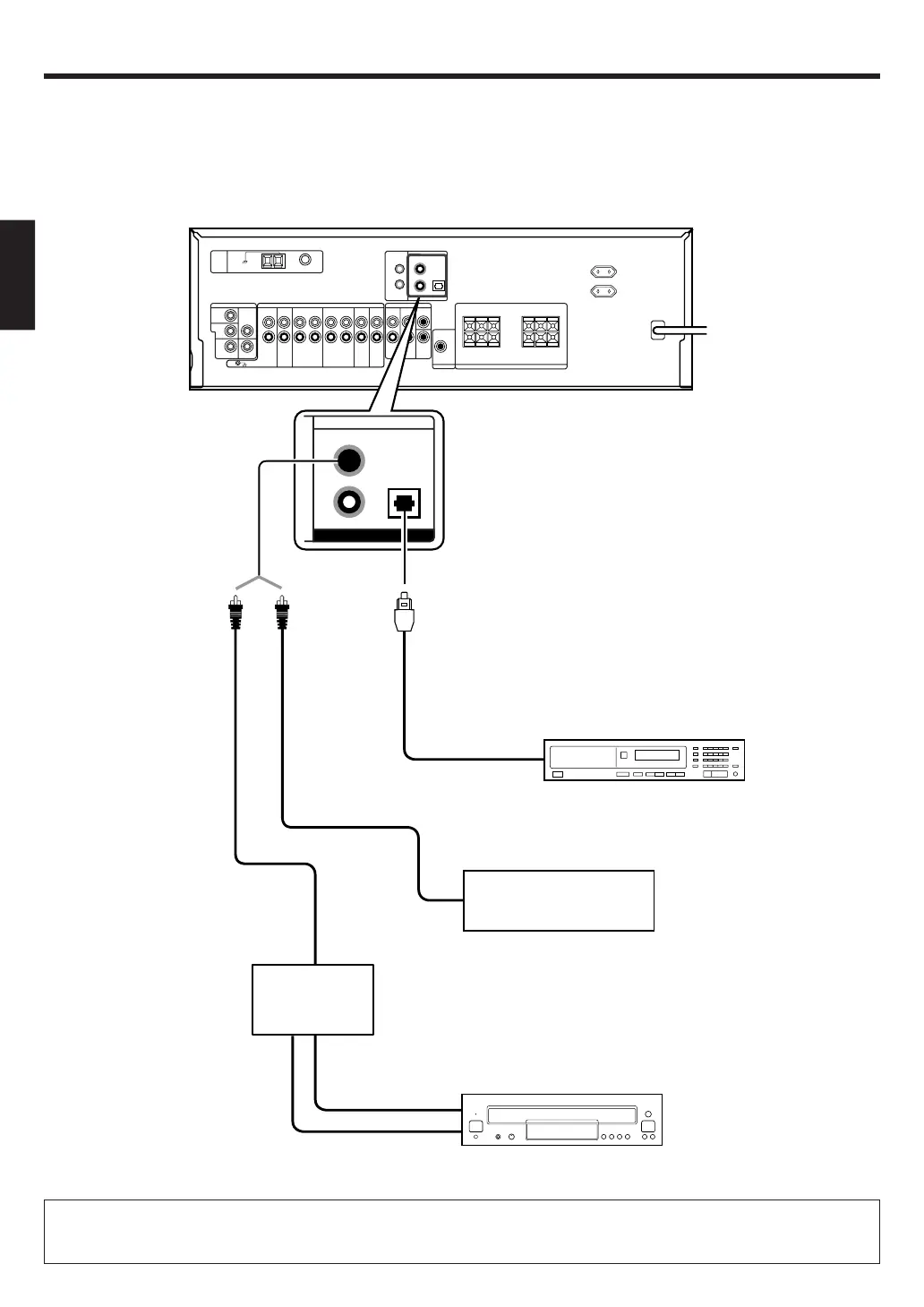

The digital in jacks can accept DTS, Dolby Digital, or PCM signals. Connect components capable of outputting DTS, Dolby Digital, or standard PCM (CD)
format digital signals.
If you have connected any digital components to this model, be sure to read the “Input mode settings” section carefully. 9
Component with DTS,
Dolby Digital, or PCM
COAXIAL DIGITAL OUT
COAXIAL
DIGITAL
OUT
(AUDIO)
DOLBY DIGITAL RF
OUT (AUDIO)
LD player
PCM OUT
RF digital
demodulator
(Commercially
available)
CD or DVD player
OPTICAL DIGITAL OUT (AUDIO)
Optical fiber cable
COAXIAL DIGITAL OUT
(AUDIO)
Connect the video signal and analog
audio signals to the VIDEO 2 jacks.
(See “Connecting video components”.)
!
To connect an LD player with a DIGITAL RF OUT, connect the LD player to the RF digital demodulator (Commercially available).
Next, connect the DIGITAL OUT jacks of the demodulator to the DIGITAL IN jacks of this model.
Connect the video signal and analog audio signals to the VIDEO 2 jacks. (See “Connecting video components”.)
*5446/09-16/EN 04.1.24, 7:09 PM12
