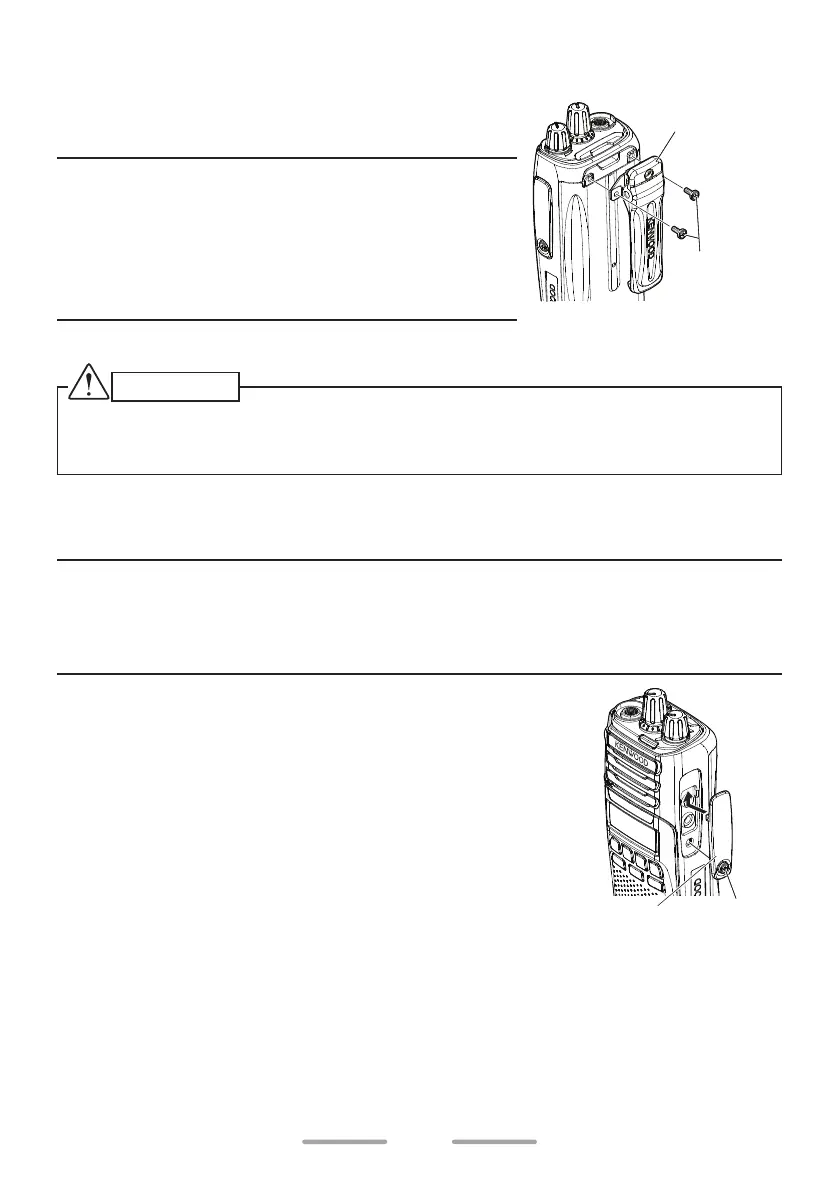

INSTALLING THE BELT CLIP
If necessary, attach the belt clip using the two
supplied M3 x 8 mm binding screws.
Note:
◆ If the belt clip is not installed, its mounting
location may get hot during continuous
transmission or when left sitting in a hot
environment.
◆ Use the Phillips #2 screwdriver.
Belt clip
M3 x 8 mm
screws
CAUTION
◆ Do not use glue which is designed to prevent screw loosening when installing
the belt clip, as it may cause damage to the transceiver. Acrylic ester, which
is contained in these glues, may crack the transceiver’s back panel.
INSTALLING THE CAP OVER THE SPEAKER/ MICROPHONE JACKS
Note:
◆ To keep the transceiver water resistant, you must cover the speaker/
microphone jacks with the supplied cap.
◆ Use the Phillips #1 screwdriver.
1 If you are not using an optional speaker/
microphone or headset, install the cap over the
speaker/ microphone jacks.
2 Secure the cap in place using the attached screw.
Speaker/ microphone
jack cap
Screw
