ORIENTATION

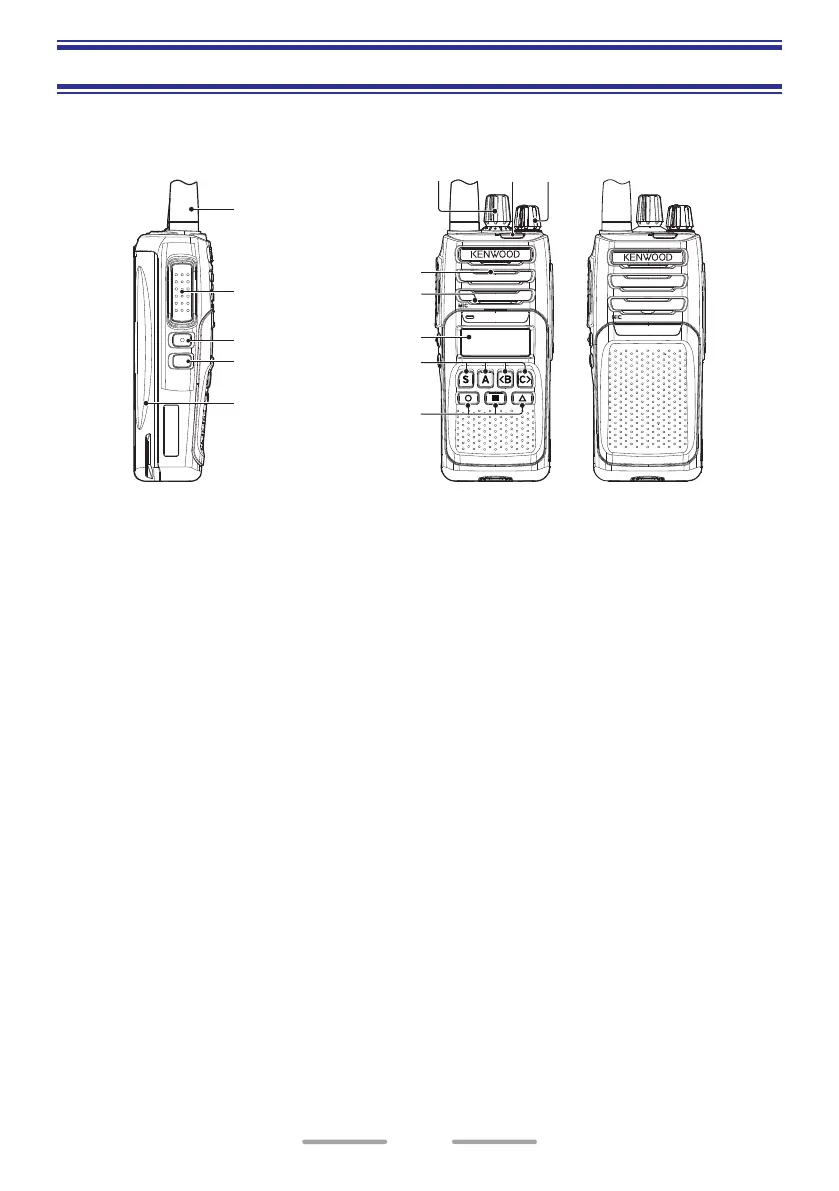

Buttons and Controls
a b c
d
e
f
g
h
Antenna
Speaker
Microphone
Display
Battery pack
a Selector
Rotate to change the operating channel.
b Status indicator
Lights during a specified mode, based on dealer programming.
(Red, Purple, Blue, Light Blue, Green, Yellow, White)
c Power switch/ Volume control
Turn clockwise to switch ON the transceiver. To switch OFF the transceiver,
turn counterclockwise until a click sounds. Rotate to adjust the volume level.
d [ S ], [ A ], [ <B ], and [ C> ] buttons
• Used for each setting operation.
• Press to activate its programmable function.
e [ ], [ ], and [ ] buttons
Press to activate its programmable function.
f PTT (Push to Talk) switch
Press and hold, then speak into the microphone to transmit.
g Side 1 button
Press to activate its programmable function.
h Side 2 button
Press to activate its programmable function.
