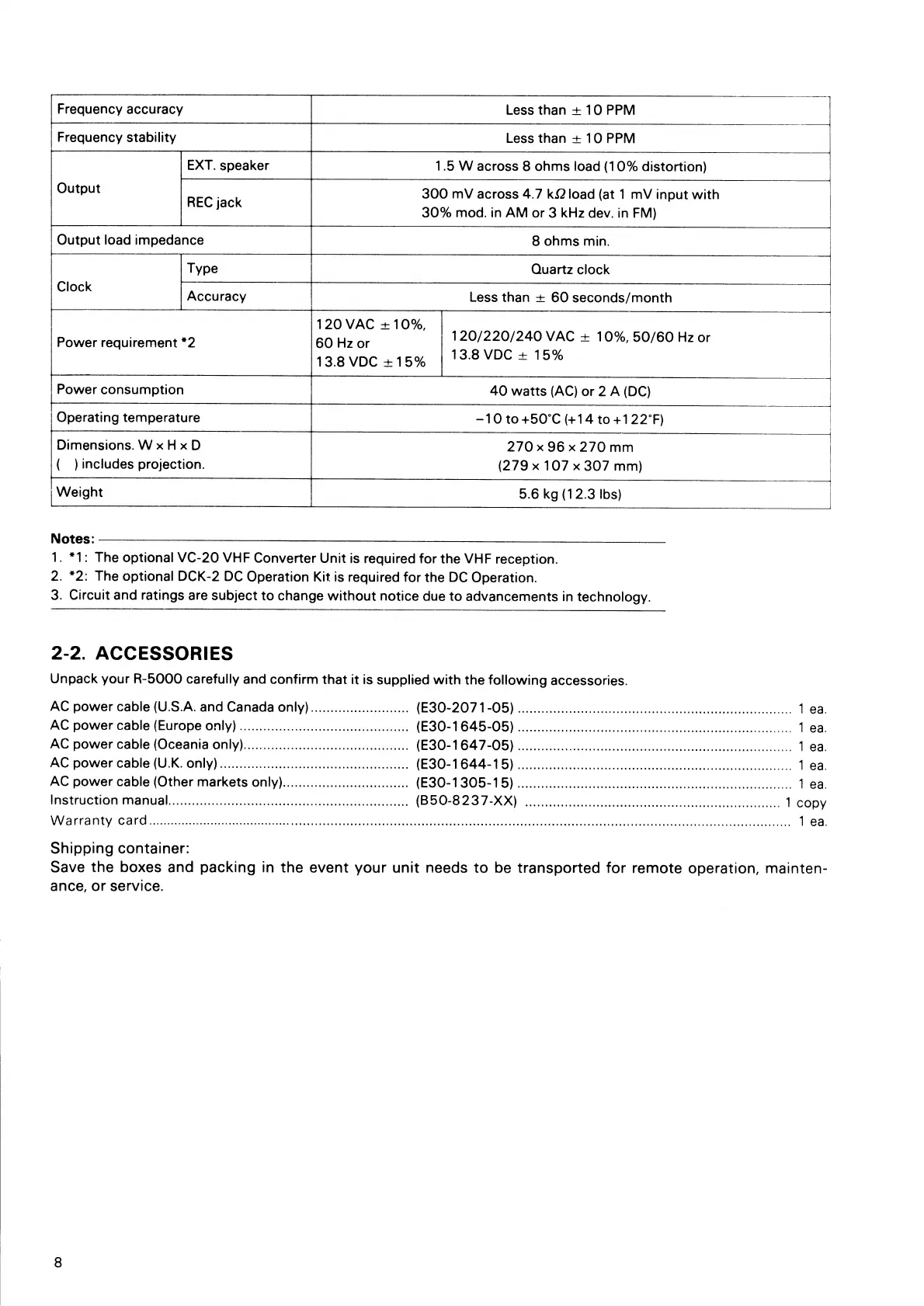

Frequency accuracy
Less than ± 10 PPM
Frequency stability
Less than ± 10 PPM
Output
EXT. speaker
1.5 W across 8 ohms load (10% distortion)
REC jack
300 mV across 4.7 kΏ load (at 1 mV input with
30% mod. in AM or 3 kHz dev. in FM)
Output load impedance
8 ohms min.
Clock
Type
Quartz clock
Accuracy
Less than ± 60 seconds/month
Power requirement *2
120 VAC ± 10%,
60 Hz or
13.8 VDC ±15%
120/220/240 VAC ± 10%, 50/60 Hz or
13.8VDC ± 15%
Power consumption
40 watts (AC) or 2 A (DC)
Operating temperature
–10 to +50°C (+14 to +122°F)
Dimensions. W x H x D
(
) includes projection.
270 x 96 x 270 mm
(279 x 107 x 307 mm)
Weight
5.6 kg (12.3 Ibs)
Notes:
1.
*1: The optional VC-20 VHF Converter Unit is required for the VHF reception.
2.
*2: The optional DCK-2 DC Operation Kit is required for the DC Operation.
3.
Circuit and ratings are subject to change without notice due to advancements in technology.
2-2. ACCESSORIES
Unpack your R-5000 carefully and confirm that it is supplied with the following accessories.
AC power cable (U.S.A. and Canada only)
(E30-2071-05)
1 ea.
AC power cable (Europe only)
(E30-1645-05)
1 ea.
AC power cable (Oceania only)
(E30-1647-05)
1 ea.
AC power cable (U.K. only)
(E30-1644-15)
1 ea.
AC power cable (Other markets only)
(E30-1305-15)
1 ea.
Instruction manual
(B50-8237-XX)
1 copy
Warranty card
1 ea.
Shipping container:
Save the boxes and packing in the event your unit needs to be transported for remote operation, mainten-
ance, or service.
