Kenwood TR-7400A - DISASSEMBLY PROCEDURES; Removing the Case; Removing the Panel

W DISASSEMBLY
'

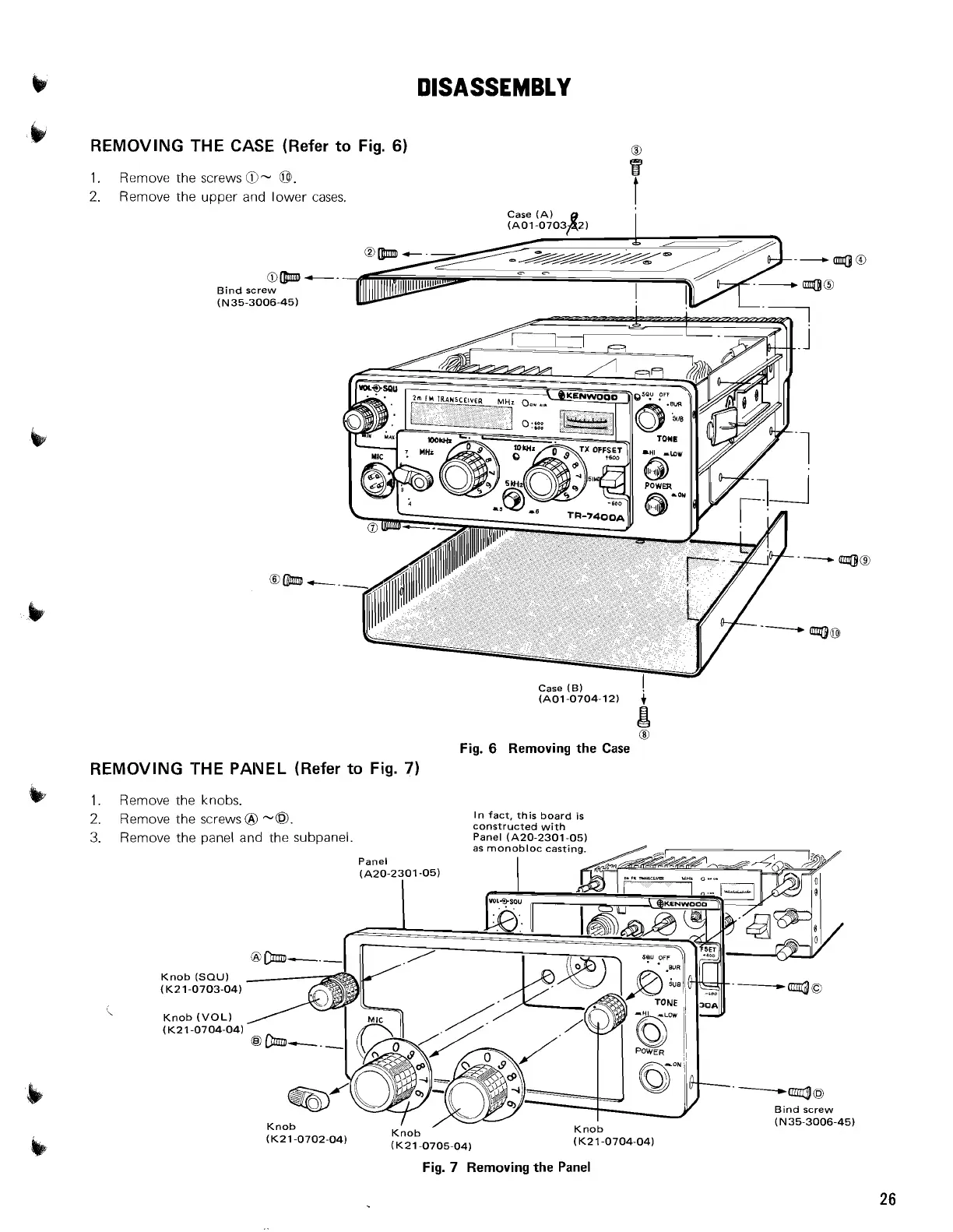

REMOVING THE CASE (Refer to Fig. 6)
1. Remove thescrews@-- @.
2.
Remove the upper and lower cases.
Case (A)
(A01-07031$2)
I
om--
Bind screw
(N35-3006-45)
Case (B)
I
(~01-0704-12)
8
@
Fig. 6 Removing the Case
REMOVING THE PANEL (Refer to Fig. 7)
1. Remove the knobs.
Remove the screws
@ --@.
Remove the panel and the subpanel
In fact, this board is
constructed with
Panel (A20-2301-05)
Knob
(SQU)
(K21-0703-04)
Knob
(VOL)
(K2 1-0704-04)
Fig. 7 Removing the Panel
