Kenwood TR-7400A - DISASSEMBLY PROCEDURES; Sub Panel and LED Mother Board Removal

DISASSEMBLY
~exegonal boss
(J32-0704.04)
PC board

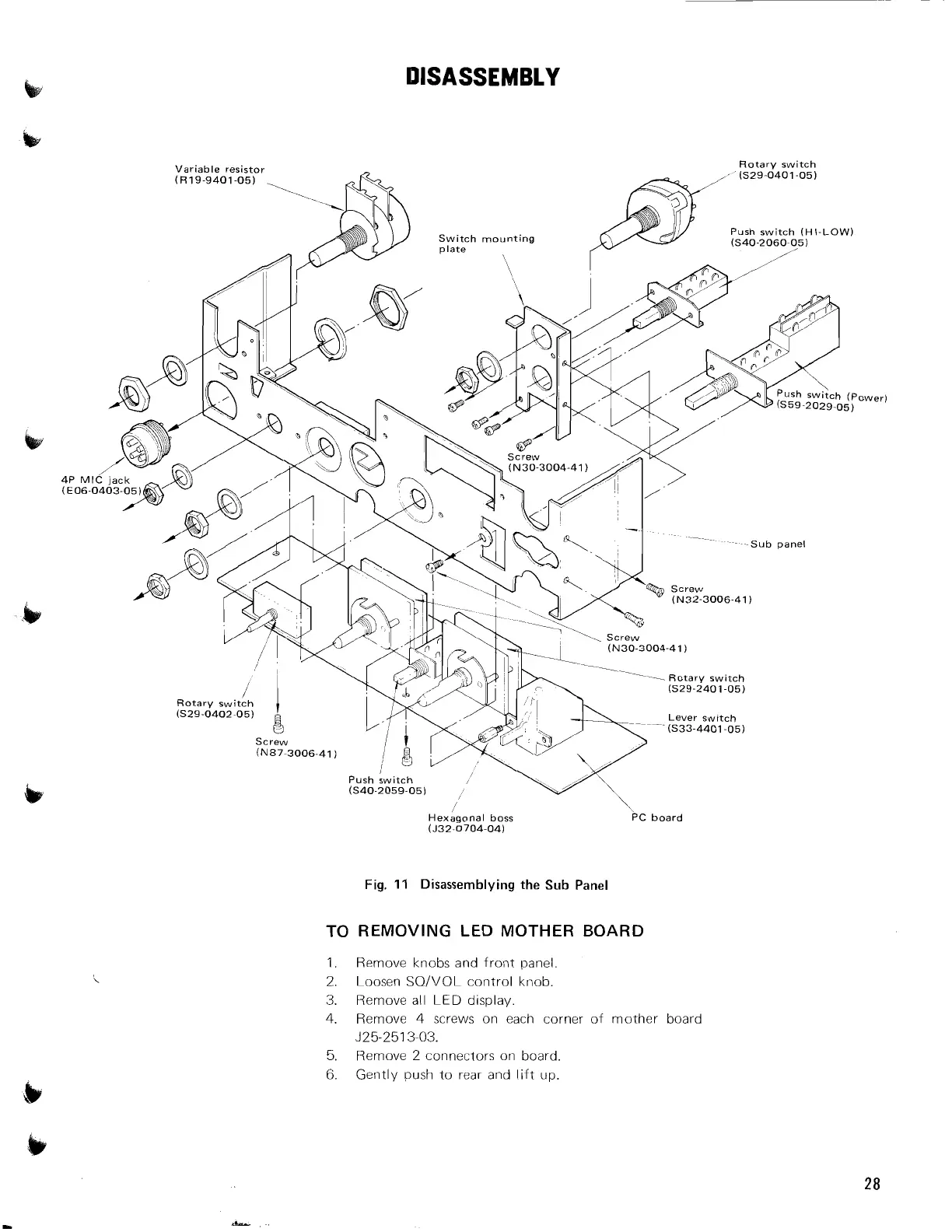

Fig. 11
Disassernblying the Sub Panel
TO REMOVING LED MOTHER BOARD
1.
Remove knobs and front panel.
2. Loosen SQIVOL control knob.
3. Remove all LED display.
4. Remove 4 screws on each corner of mother board
J25-2513-03.
5. Remove 2 connectors on board.
6. Gently push to rear and lift up.
