Kenwood TR7400A - PC BOARD LAYOUTS; PARTS ALIGNMENT; Component Locations by Unit; Adjustment Point Identification

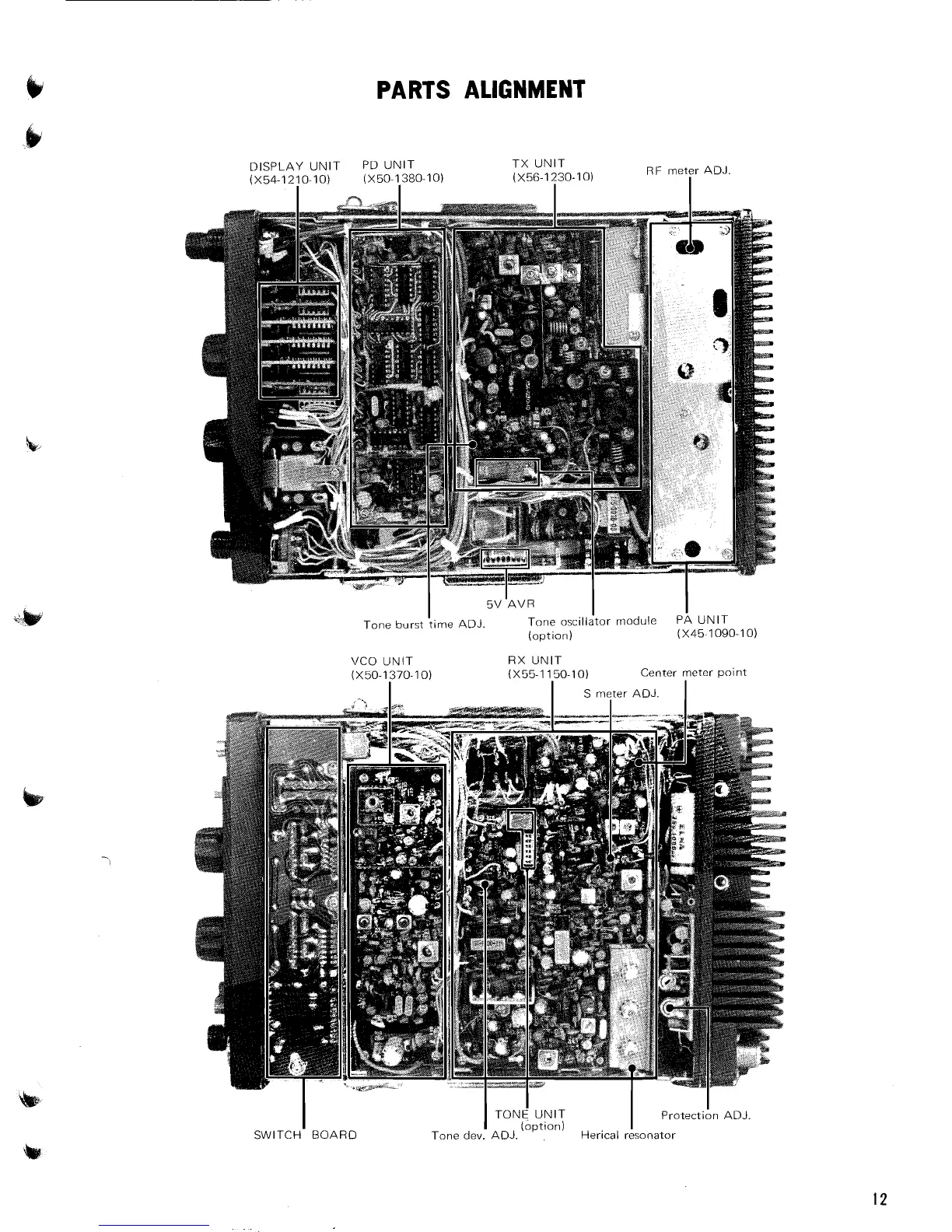

PARTS ALIGNMENT
DISPLAY UNlT PD UNlT
(X54-1210-10) (X50-1380-10) I
TX UNlT
(X56-1230-10)
RF meter ADJ.
I I
I
~V'AVR
Tone burst time ADJ.
I I
Tone oscillator module PA UNlT
(option)
(X45-1090-10)
VCO UNIT RX UNIT
(X50-1370-10) (X55-1 150-10)
Center meter point
I I s meter ADJ. I
I
TON< UNIT I ~rotecti6n ADJ
I loption)
SWITCH BOARD Tone dev. ADJ. Herical resonator
