Kenwood VR-205 User Manual

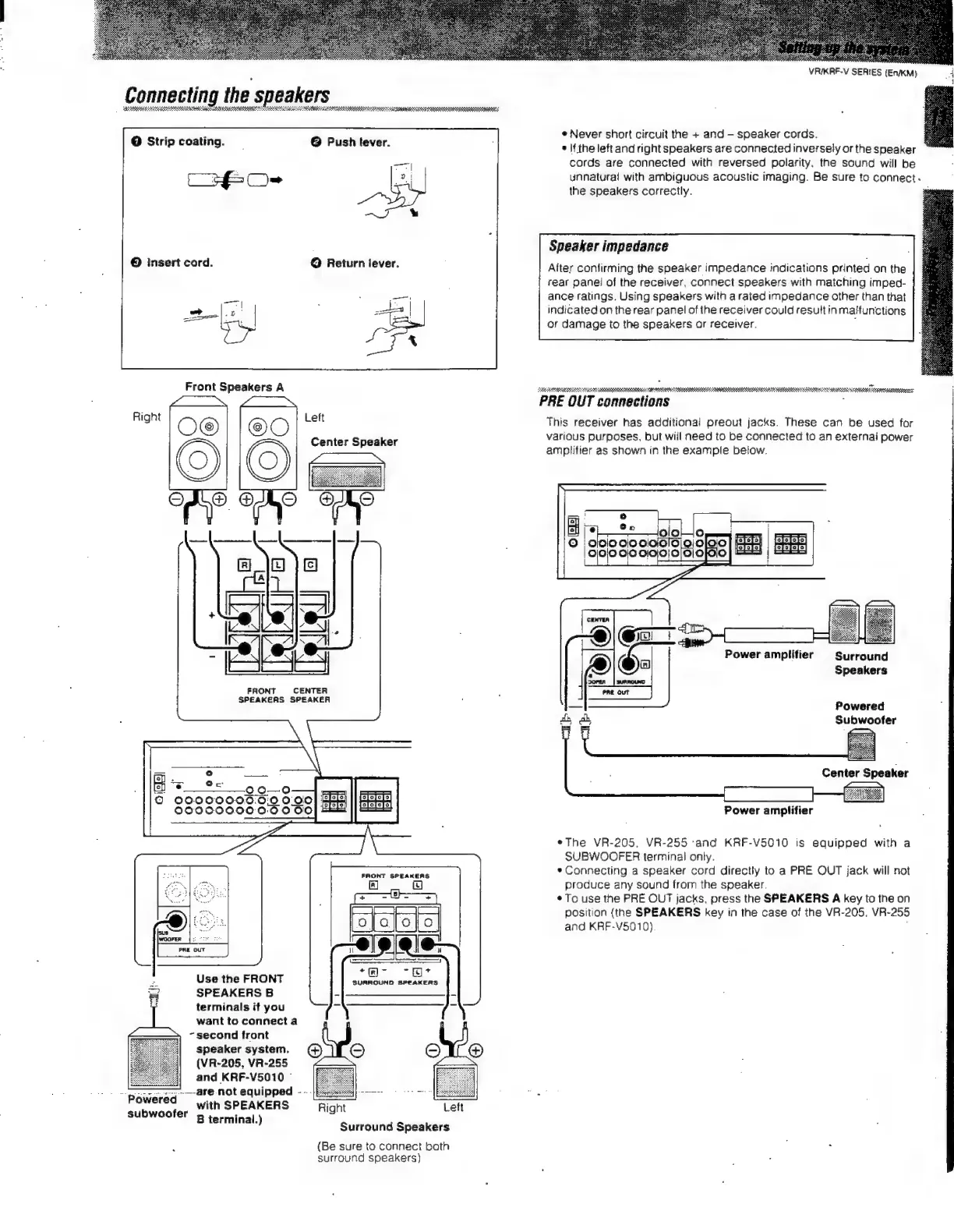

Connectin the speakers
BE NSN EN RR COE Ue eee ee NY
@ Strip coating. ® Push tever.
30
—_—_ |
3
© insert cord.
FRONT CENTER
SPEAKERS SPEAKEA
FRONT SPEAKEAS
*f- “fr
SURROUND SPEAKERS
Use the FRONT
SPEAKERS B
terminals if you
want to connect a
“second front
speaker system.
(VR-205, VR-255
and KRF-V5010
—-are. not equipped --.-
Powered ; i
with SPEAKERS Right Left
subwoofer B terminal.)
Surround Speakers
(Be sure to connect both
surround speakers)
VR/KRF-V SERIES (En/KM)
¢ Never short circuit the + and — speaker cords.
* Ifthe left and right speakers are connected inversely or the speaker
cords are connected with reversed polarity, the sound will be
unnatural with ambiguous acoustic imaging. Be sure to connect.
the speakers correctly.
Speaker impedance
After confirming the speaker impedance indications printed on the
rear panel of the receiver, connect speakers with matching imped-
ance ratings. Using speakers with a rated impedance other than that
indicated on the rear panel of the receiver could result in maifunctions
or damage to the speakers or receiver.
BREAN OSS: “Ae gRaRERE NE ROSS ROR tn NOSE RE ECE ANN RSS ERS RE ONO AES SOTSE RARN CONUE eeetenas
PRE OUT connections
This receiver has additional preout jacks. These can be used for
various purposes, but wiil need to be connected to an externas power
amplifier as shown in the example below.
Surround
Speakers
Power amplifier
Powered
Subwoofer
Center Speaker
pr
Power amplifier
¢The VR-205, VR-255 ‘and KRF-V5010 is equipped with a
SUBWOOFER terminal only.
Connecting a speaker cord directly to a PRE OUT jack will not
produce any sound from the speaker.
* To use the PRE OUT jacks, press the SPEAKERS A key to tne on
position (the SPEAKERS key in the case of the VR-205, VR-255
and KRF-V5010)}. ‘
